Goodrive300-21 integrated machine for air compressor Instruction for panel display
-11-
3 Instruction for panel display

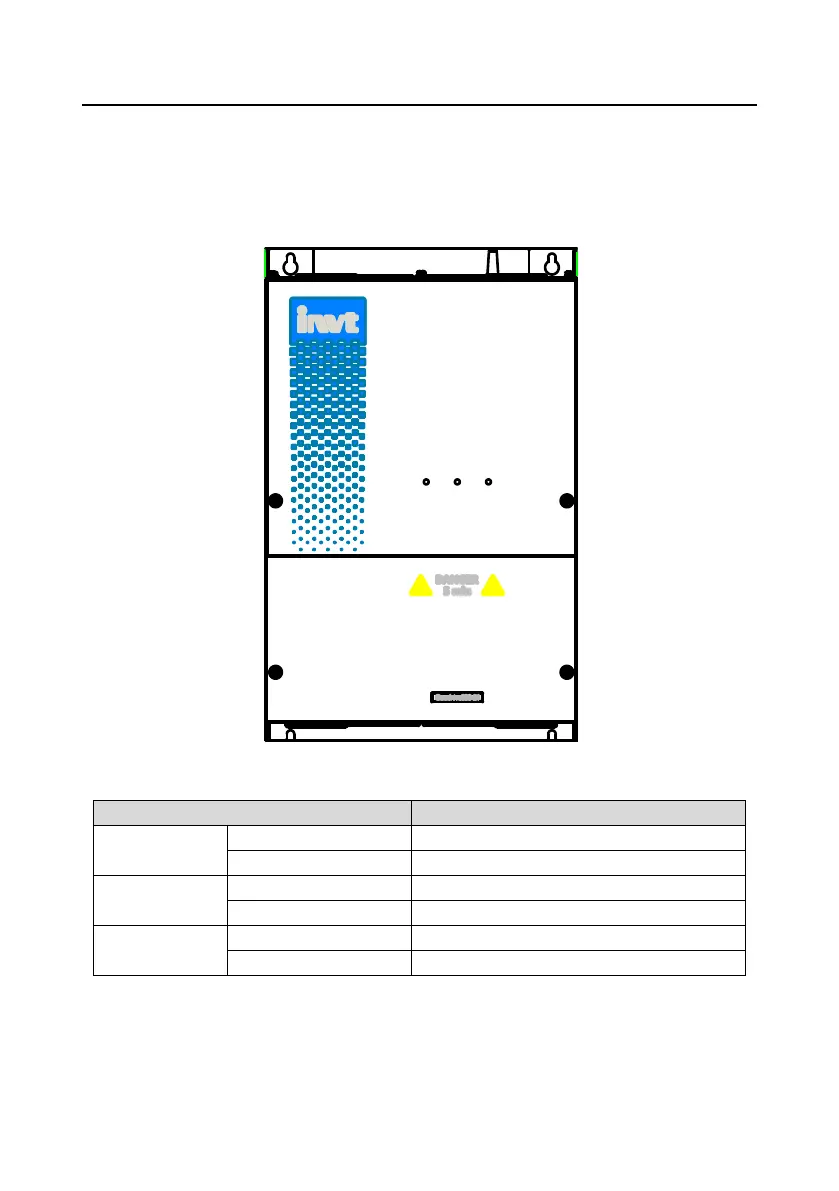

The panel of GD300-21 series air compressor integrated machine carries three LED indicators (fault,
running, power). The position and display state of the indicators are illustrated as below:
Fault
Run
Power
Figure 3-1 Diagram of indicator position
Display state of indicators
State instruction
Power indicator
(green)
ON
Bus voltage is normal
Blinking
Bus voltage is abnormal
Running indicator
(green)
ON
Run
OFF
Stop
Fault indicator
(read)
ON
Fault
OFF
Normal running
