INVT Goodrive300-21 Series User Manual

Goodrive300-21 integrated machine for air compressor Function description
-69-
Function
code
Name
Description
Default
0: Limit as per the max. frequency
1: Limit as per A frequency
Thousands place:
0: A+B frequency. Acceleration /deceleration of
main reference A frequency source buffering is
invalid.
1: A+B frequency. Acceleration/ deceleration of
main reference A frequency source buffering is
valid. The acceleration/deceleration is determined
by P08.04 (acceleration time 4).
P17.00
Set frequency
0.00Hz–P00.03 (Max. output frequency)
0.00Hz
P17.23
PID reference
value
-100.0–100.0%
0.0%
P17.24
PID feedback value
-100.0–100.0%
0.0%

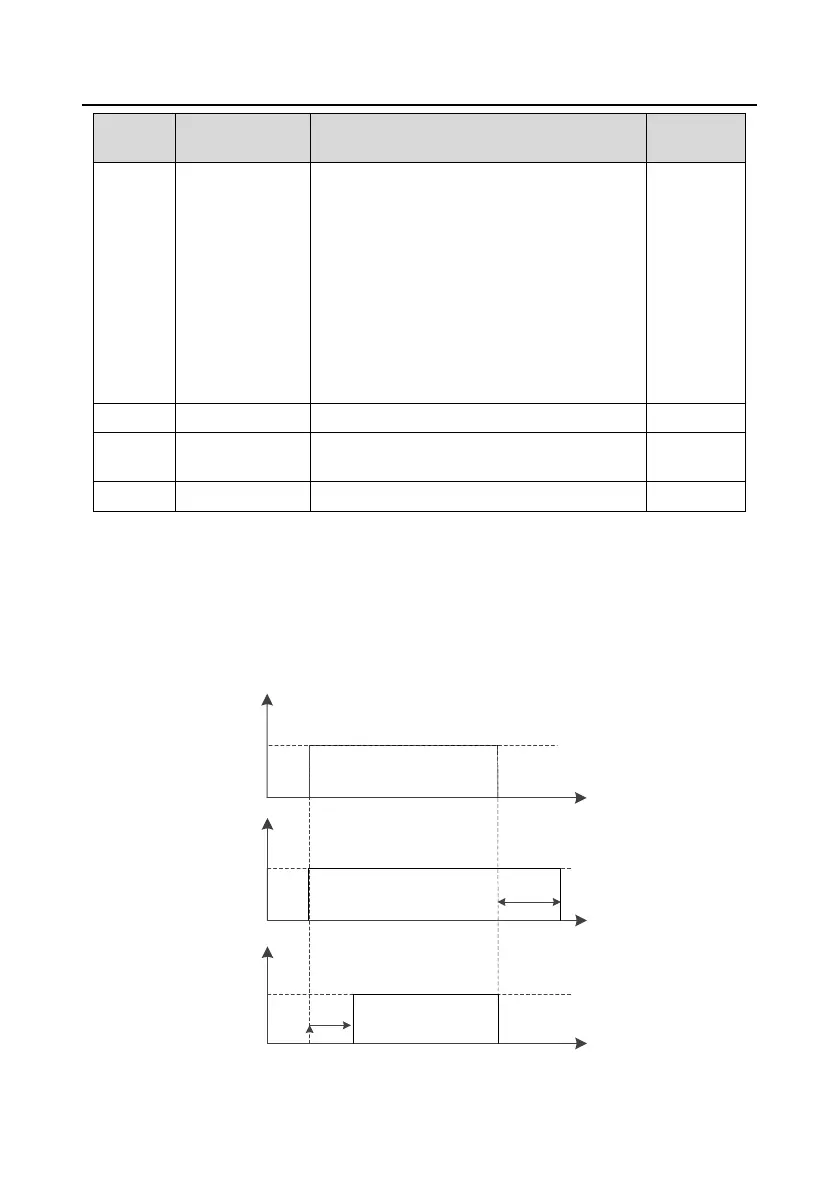

5.4 Running logic of blower oil pump
Special function: the RO terminal is enabled when receiving the inverter start command. After the
start-up delay time (P01.23), the inverter starts. The inverter stops when receiving the inverter stop
command and the RO terminal turns off the output after the corresponding switch-off delay. For
details, see the following figure. Please see group P06 for "RO switch-off delay” and set the
corresponding RO switch-off delay function code.
Forward running
signal
1
0
Time
Oil pump start
and stop
1
0
Time
RO switch-off
delay
1
0
VFD start
and stop
P01.23
Time
