Goodrive300-21 integrated machine for air compressor Commissioning guidelines
-15-
Note:
1. There are two controlling cable through holes on the top and at the bottom of the integrated
machine cabinet, users can select which through-hole to use based on wiring condition. It is
recommended that the controlling cable is routed via top through-hole to realize separation
between controlling cable and motor cable and reduce interference. The motor temperature
detection or temperature protection cable which follows the motor power cable can be routed via
bottom through-hole.
2. Refer to B.4.3 Installation diagram of optional pedestal for floor installation layout.
4.3 Function commissioning procedure
It is recommended that GD300-21 air compressor integrated machine adopt touch screen for
displaying and commissioning. The concrete procedures are listed as follows: (if other controllers are
used, contact our technician)
1. Conduct wiring and routing according to “4.1 Wiring diagram of integrated machine system” and
“4.2 Recommended wiring process“; check carefully if the wiring is correct and ensure the
integrated machine and its shell GND is properly connected.

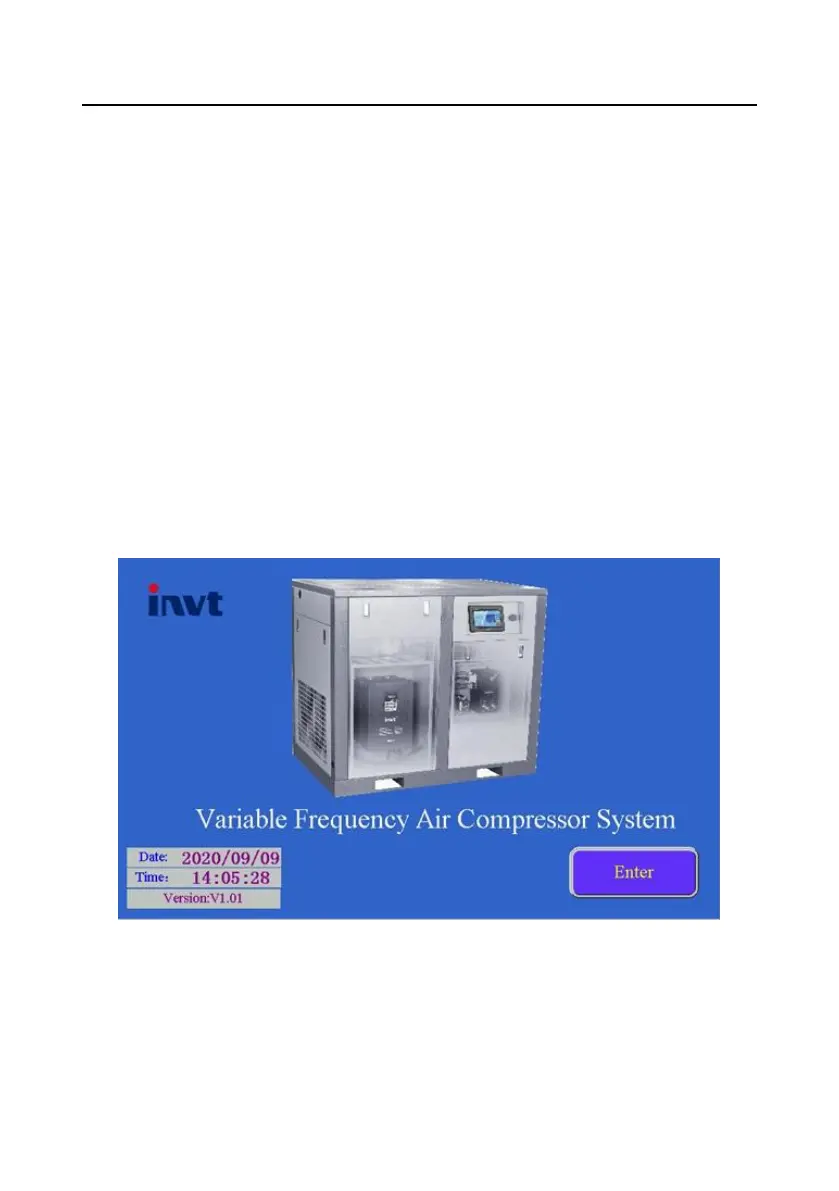

2. After power on, the touch screen HMI interface is shown as follows:
Figure 4-6 Login interface
