ISCO 4230 - 4.3.2 Internal Analog Output Board

4230 Flow Meter
Section 4 Optional Equipment
4-6

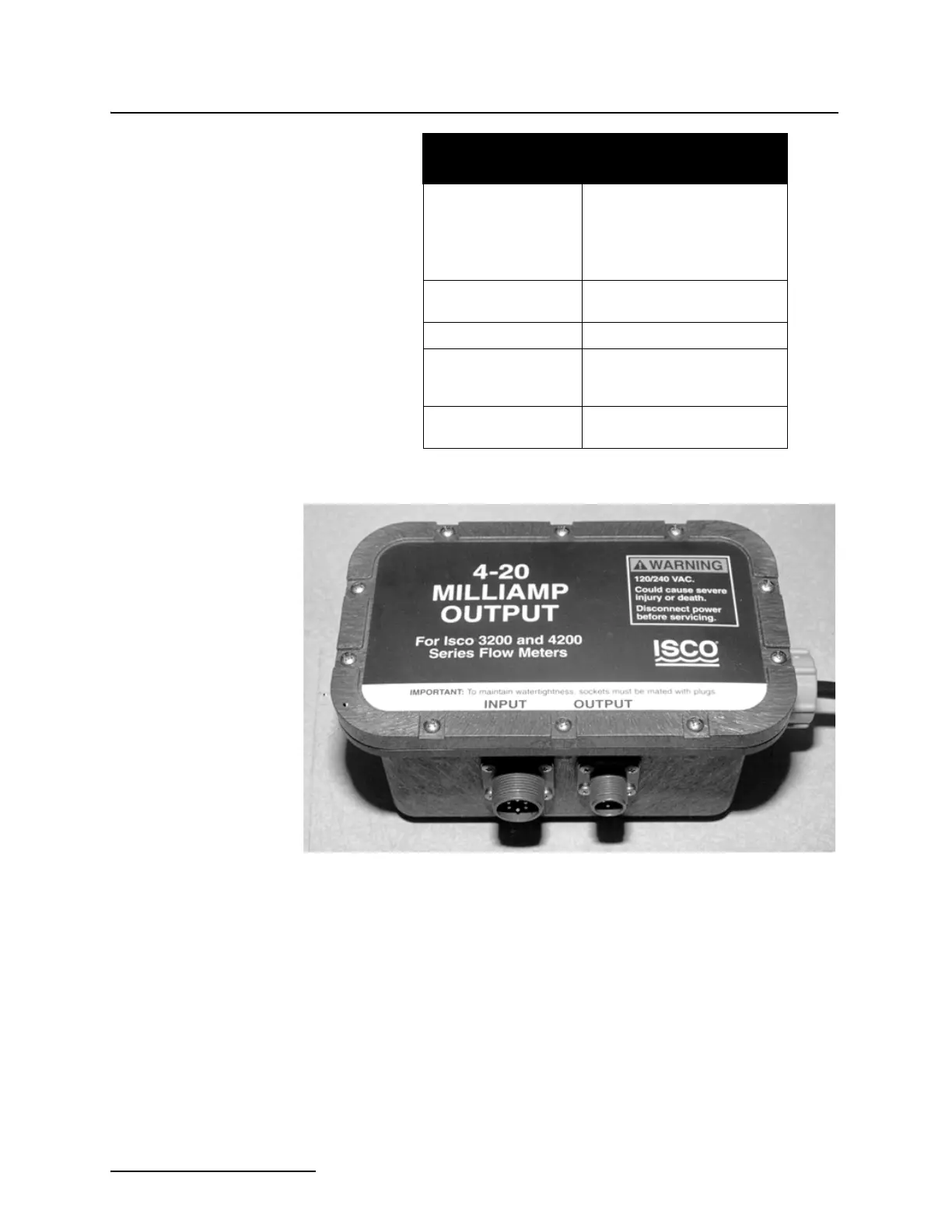

Figure 4-1 4-20 mA Output Interface
4.3.2 Internal Analog Output
Board
For those needing more than one analog output, Isco offers the
Multiple Analog Output Board, which is installed inside the
flow meter. This board provides from one to three isolated analog
outputs. You can order the board with three, two, or one circuit
installed. You must specify this when the flow meter is ordered.
The board is compatible with the existing external 4-20 mA
output box (60-1784-039). A flow meter can use either the
internal board, the external box, or both, for a maximum number
of four analog outputs.
Input Connector 6-pin male M/S
Pin B: – pulse input
Pin F: + pulse input
Pins A, C, D, E: NC
Isolation Output current optically iso-
lated from flow meter.
Fusing
1
/4 Amp. internal on AC line.
Adjustments/
Calibration
Factory-calibrated; when used
within range, no adjustment
needed,
Maximum Distance 1,500 ft. (457.3 m) using 18
AWG wire.
Table 4-1 4-20 mA Output Interface:
Technical Specifications (Continued)
