4230 Flow Meter
Section 4 Optional Equipment
4-31

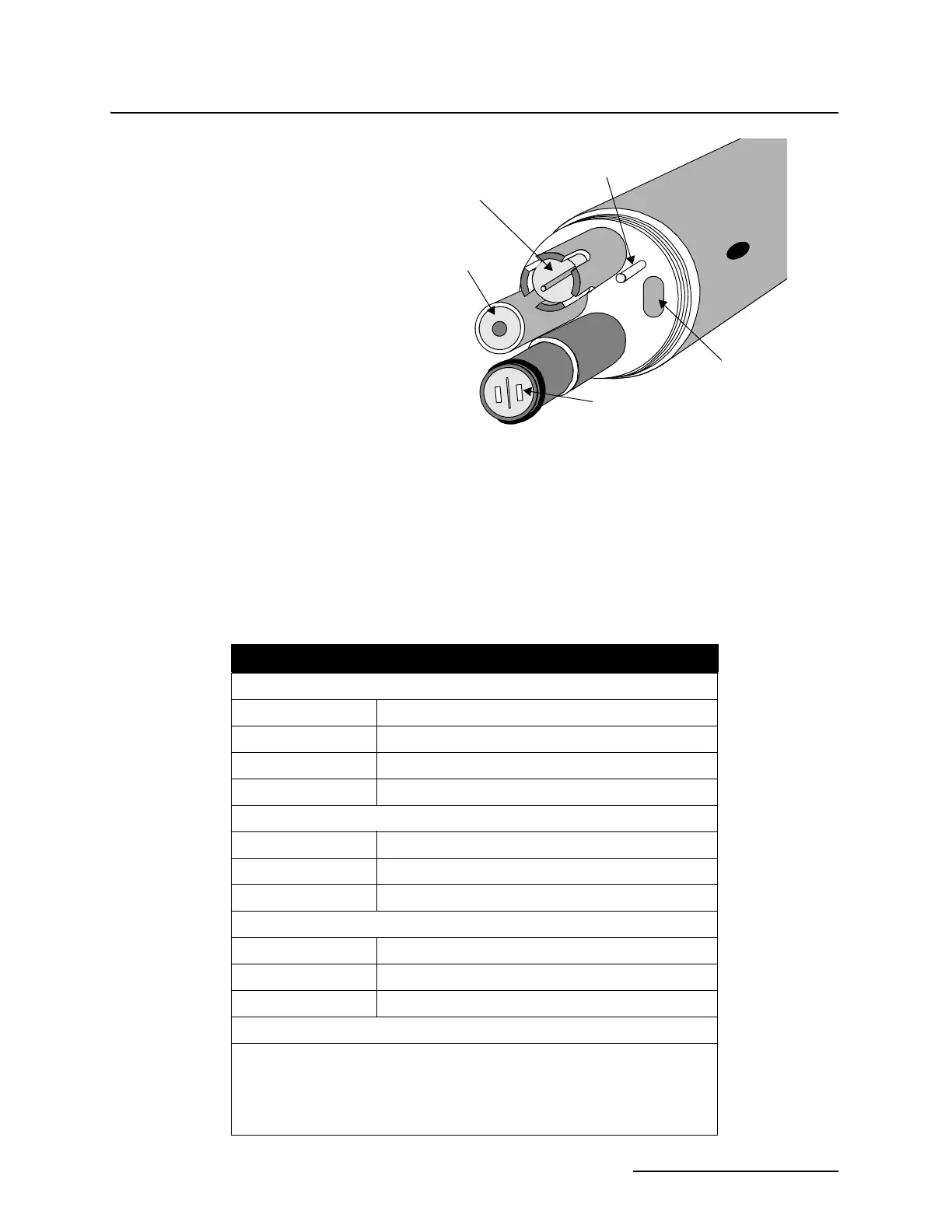

Figure 4-12 YSI 600 Multiple Sensor Sonde
Information about programming the flow meter to use the YSI
600 is found in Section 2 of this manual. Information about the
YSI 600 Sonde is found in the YSI manual.
End view, facing sensors
Cover removed
to show sensors.
pH sensor
pH reference
D.O. sensor
Conductivity
(Inside)
Temperature
Table 4-5 YSI 600 Technical Specifications
Operating Environment
Medium Fresh, Sea, or Polluted Water
Temperature –5° to +45° C
Storage Temp –40° to +60°C
Depth 0 to 200 Feet (0 to 61 meters)
Dimensions
Diameter 1.6 Inches (4.06 cm)
Length 14 Inches (35.6 cm)
Weight 4.9 Pounds (2.22 kg)
Miscellaneous
Materials PVC, Stainless Steel
Computer Interface RS-232C, SDI-12
Power 12VDC, Externally supplied
System Requirements
Connects to modified 9-pin Rain Gauge Terminal on any 4200
Series Flow Meter. Operation of Rain Gauge with YSI 600 is
still possible with a special Y-connect cable. Modification of
older 4200 Series Flow Meters is possible with changes in con-
nectors and boards. Consult Factory.
