Chapter 2. Product Overview

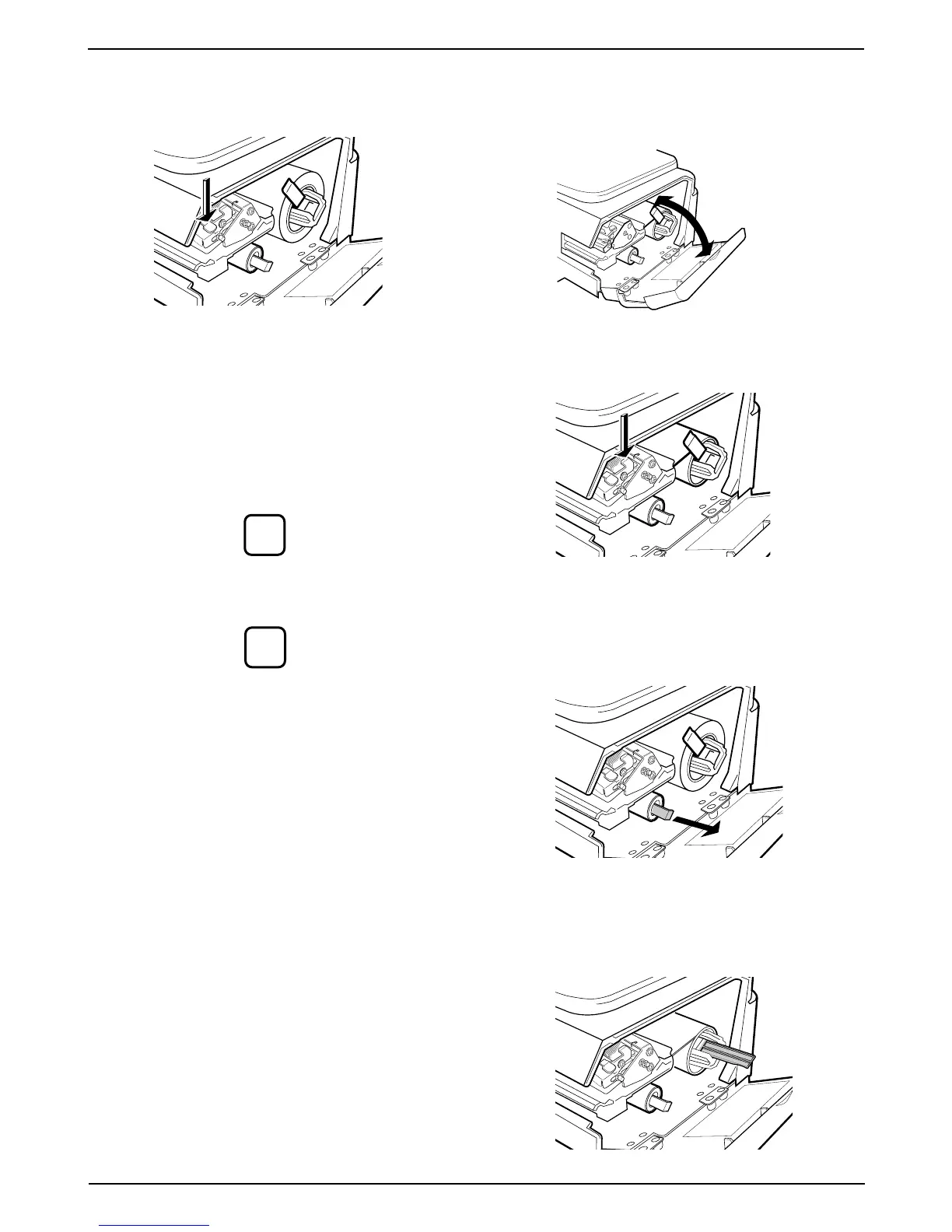

8. Replace the printer head by pushing down the lock
lever (C).
9. Press the FEED key on the key sheet once or twice
in order to securely turn the paper around the winding
bobbin (E).
Note: Check that the label printing position is
properly set.
If not properly set, press the FEED key until it
reaches the proper printing position.
FEED
2.5.2 Unloading
1. Open the side cover.
2. Release the printer head by pushing down the
release lever (D).
3. Pull the lever (F) outwards to loosen the paper wound
around the winding bobbin (E), then remove the
paper from the winding bobbin.
4. Push down the stopper lever (A) of the roll holder
(B) to make it straight, then remove the label roll from
the path ((1) through (4)) and the roll holder (B).
Press the Clear key to remove any error
messages.
CLR
