VT50 – Structure and function
Pos: 5 /CC -Isobus/Aufbau @ 9\mod_1287407034989_6.doc @ 148549 @ @ 1

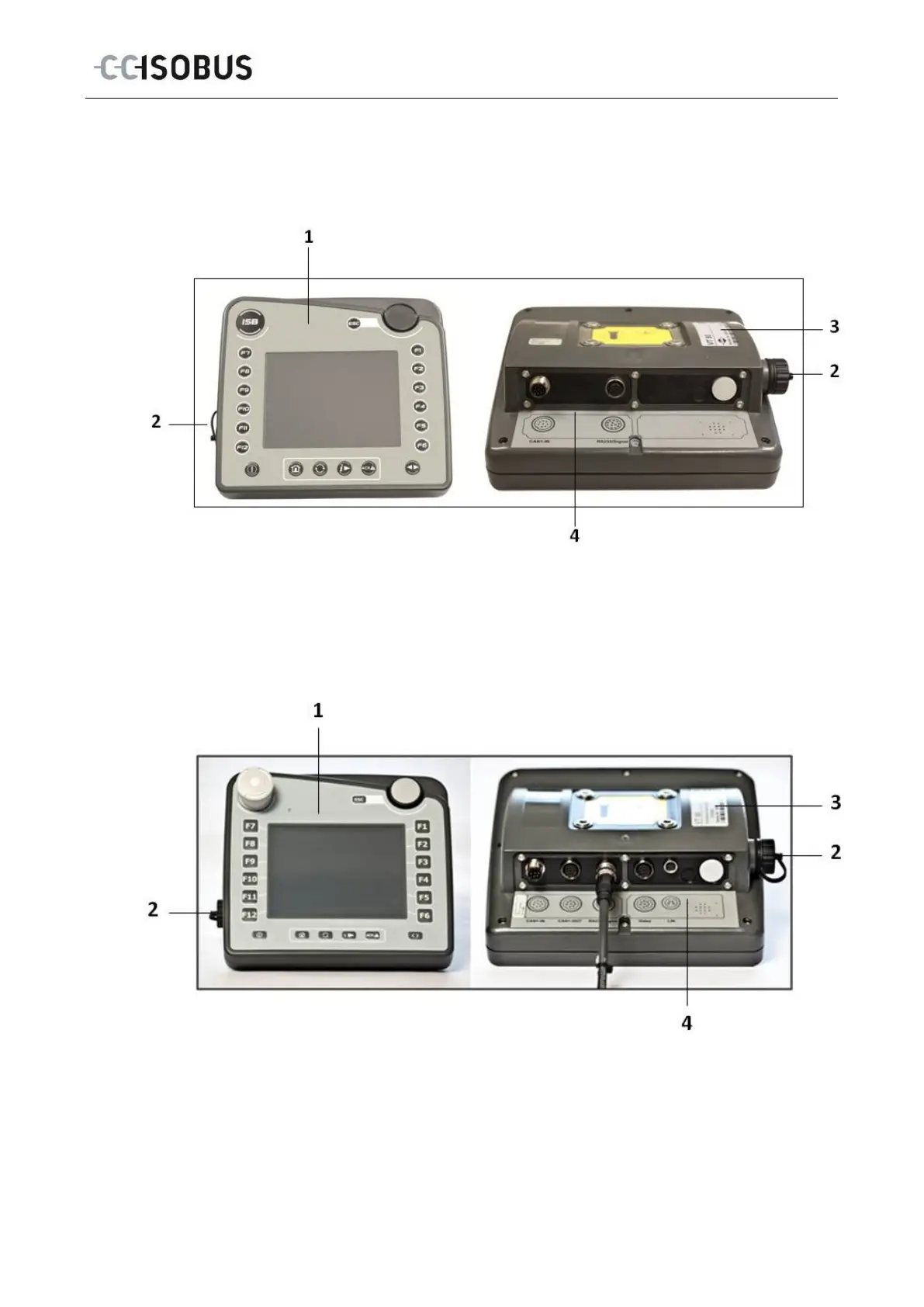

3 Structure and function
3.1 Overview Basic
1 Front view with operating elements
2 USB connection (under the cap)
3 Nameplate
4 Interface strip
3.2 Overview Comfort
1 Front view with operating elements
2 USB connection (under the cap)
3 Nameplate
4 Interface strip
9
