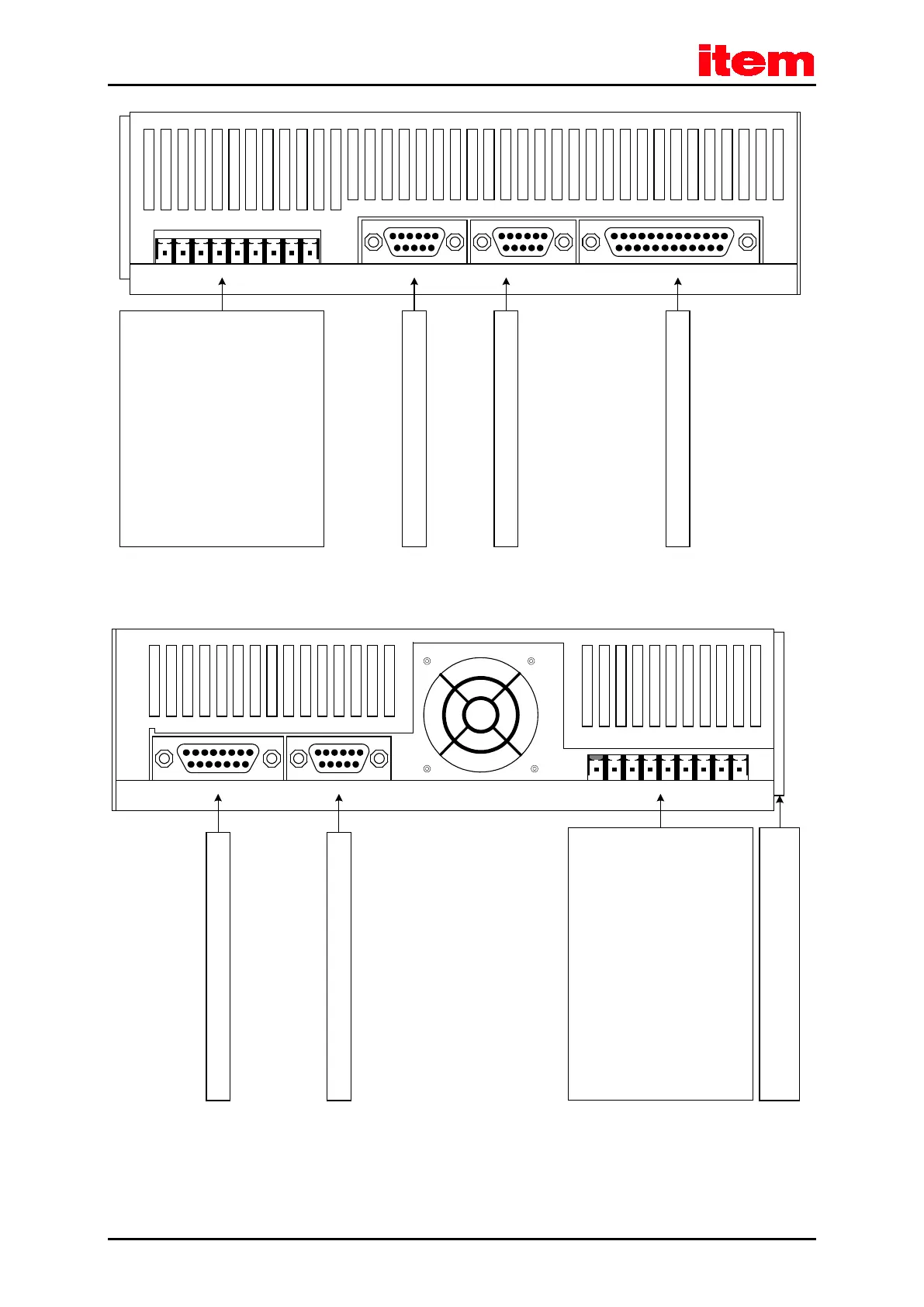

ITEM C 1-Series - Figure 12: Item Servo Positioning Controller C 1-02: Top View; Figure 13: Item Servo Positioning Controller C 1-02: Bottom View

Mechanical installation
Page 75
[X1] I/O
[X10] IN[X11] OUT
[X9]
[X9]: Power Supply
L: mains phase 230VAC N: mains neutral conductor ZK+: pos. DC bus voltage ZK-: neg. DC bus voltage BR-INT: brake chopper (internal) BR-CH: brake chopper PE: ground conductor from
mains
+24V: 24VDC GND24V: GND 24VDC
[X11]: Incremental encoder output
[X10]: Incremental encoder input
[X1]: I/O interface
Figure 12: item servo positioning controller C 1-02: Top view
[X2A] RESOLVER
[X6]
[X2B] ENCODER
[X6]: Motor Connection BR-: holding brake BR+: holding brake PE: Connection for inner shield
(holding brake + temperature sensor)
MT-: motor sensor MT+ motor sensor PE: motor ground conductor W: motor phase 3 V: motor phase 2 U: motor phase 1
[X2A]: Connection for the resolver
[X2B]: Connection for the encoder
Fastening bracket of shield connection terminal block SK14
Figure 13: item servo positioning controller C 1-02: Bottom view
