Mechanical installation
Page 76
7.3 Mounting
The item servo positioning controller C 1-Series has attachment lugs on the top and the bottom of the device. These lugs are
used to mount the servo positioning controller vertically to a control cabinet plate. The lugs are part of the cooling body profile.
This is why the best possible heat transfer to the control cabinet plate has to be ensured.
Recommended tightening torque for an M5 screw of property class 5.6: 2.8 Nm.
Please use M5 screws for the mounting of the item servo positioning controller C 1-02, C 1-05 und C 1-05
.
R2,5
R5
261 mm
21 mm
255,5 mm
28,8 mm
54,6 mm
4,5 mm
31,5 mm
247,3 mm
251 mm
R2,5 M4 flush head stud

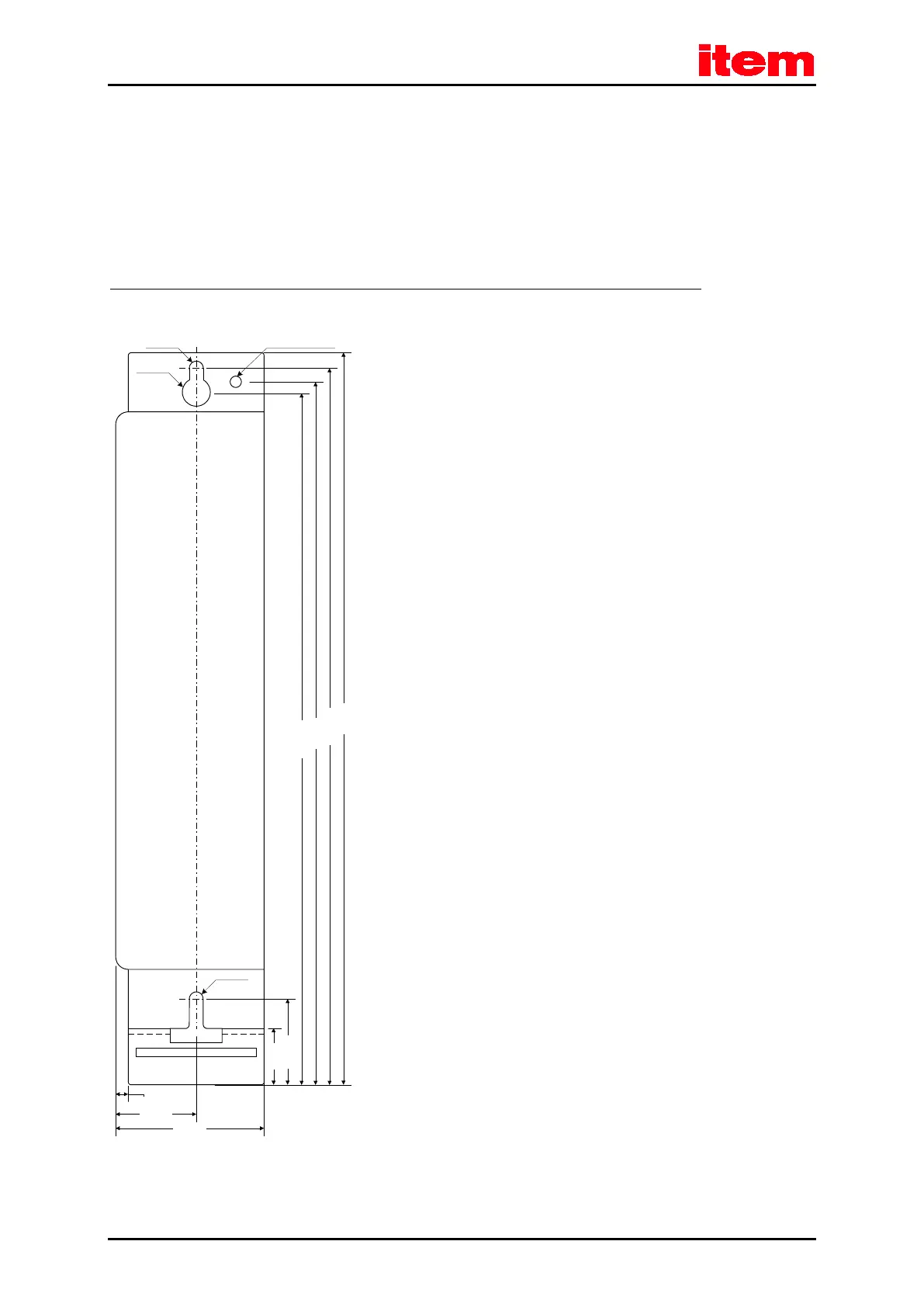

Figure 14: item servo positioning controller C 1-Series: Mounting plate
