ITEM C 1-Series - Figure 16: Complete Setup of the Item C 1-Series with Motor and PC

To Next Page

To Previous Page

Electrical installation

Page 79

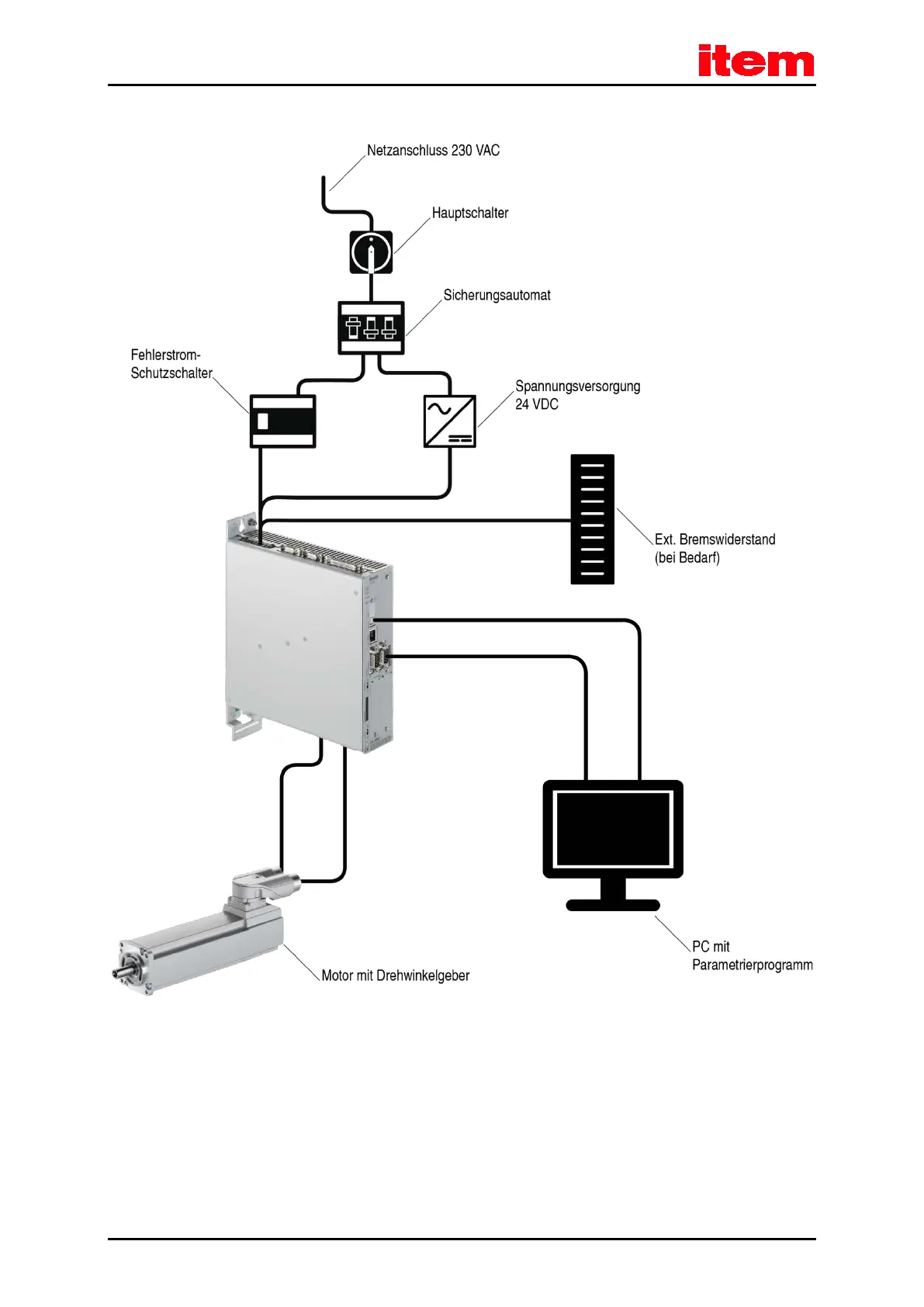

Figure 16: Complete setup of the item C 1-Series with motor and PC
