Electrical installation
Page 96
The shield of the cable is led to the CAN shield connections for all nodes
For suitable and item-recommended cables please refer to
chapter 8.7.4 Cable type and design [X4]
We advise against the use of plug adaptors for CAN bus cabling. Should this be necessary nonetheless, make sure to use
metal connector housings to connect the cable shield
In order to keep interferences as low as possible make sure that
Motor cables are not installed parallel to signal lines
Motor cables comply with item specifications
Motor cables are properly shielded and grounded
For further information on interference-free CAN bus cabling, please refer to the Controller Area Network protocol
specification, Version 2.0 by Robert Bosch GmbH, 1991

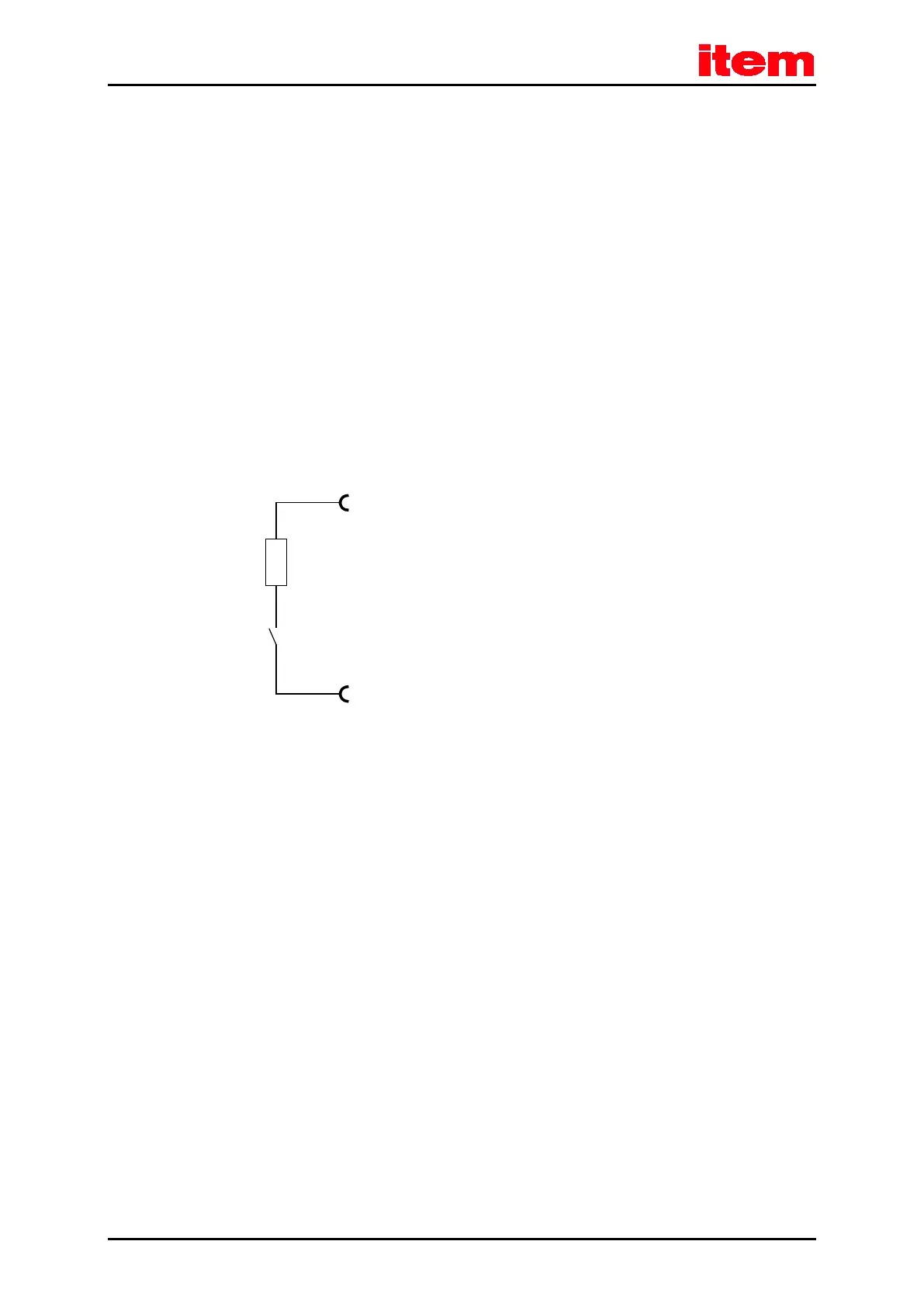

integrated
terminating resistor
120
X4, Pin 7
(CAN-H)
X4, Pin 2
(CAN-L)
DIP switch
CAN TERM
Figure 23: Integrated CAN terminating resistor
