Jacobsen Tri-King Triplex User Manual

87
> Change from previous revision
11
13
20/21
12
10
10
8
18/19
9
17
15
17
12
10
14
22
16
7
4
1
5
2
6
3
Item Part No. Qty. Description Serial Numbers/Notes
1
REF 1 Roller
2 3005156 2 • Wear Sleeve
3 3004882 2 • Oil Seal
4 338647 2 • Oil Seal
5 500534 2 • Bearing, Cup and Cone
6 367029 2 • Nut
7 471214 2 • Grease Fitting
8 366653 2 Washer
9 400264 8 Screw, 3/8-16 x 1-1/4” Hex Head
10 446142 8 Lockwasher, 3/8 Hvy
11 446174 4 Lockwasher, 3/4 Light
12 443110 8 Nut, 3/8-16 Hex
13 434002 4 Screw, 3/4-16 x 1-1/4” Socket Head
14 471214 2 Grease Fitting
15 3007673 2 Housing
16 132680 2 Rear Roller Adjuster
17 3000313 4 Adjusting Nut
18 3008359 1 L.H. Front Roller Bracket
19 3008360 1 R.H. Front Roller Bracket
20 207473 1 R.H. Skid
21 207474 1 L.H. Skid
22 412015 2 Set Screw, 5/16-18 x 5/8”
23 554723 1 Skid Shoe Wrench
TRI-KING

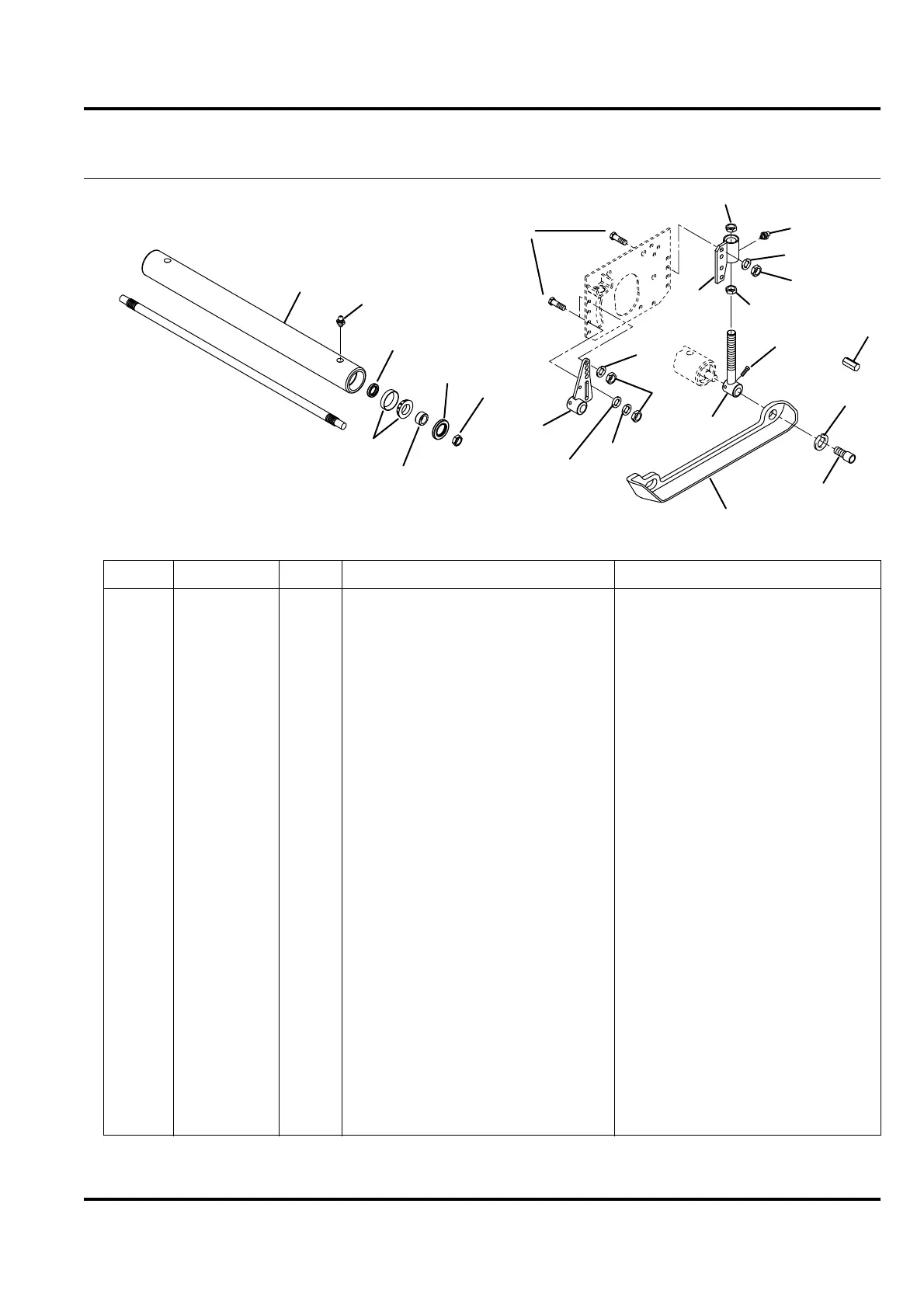

31.1 Roller Brackets and Skids
Serial No.
23
