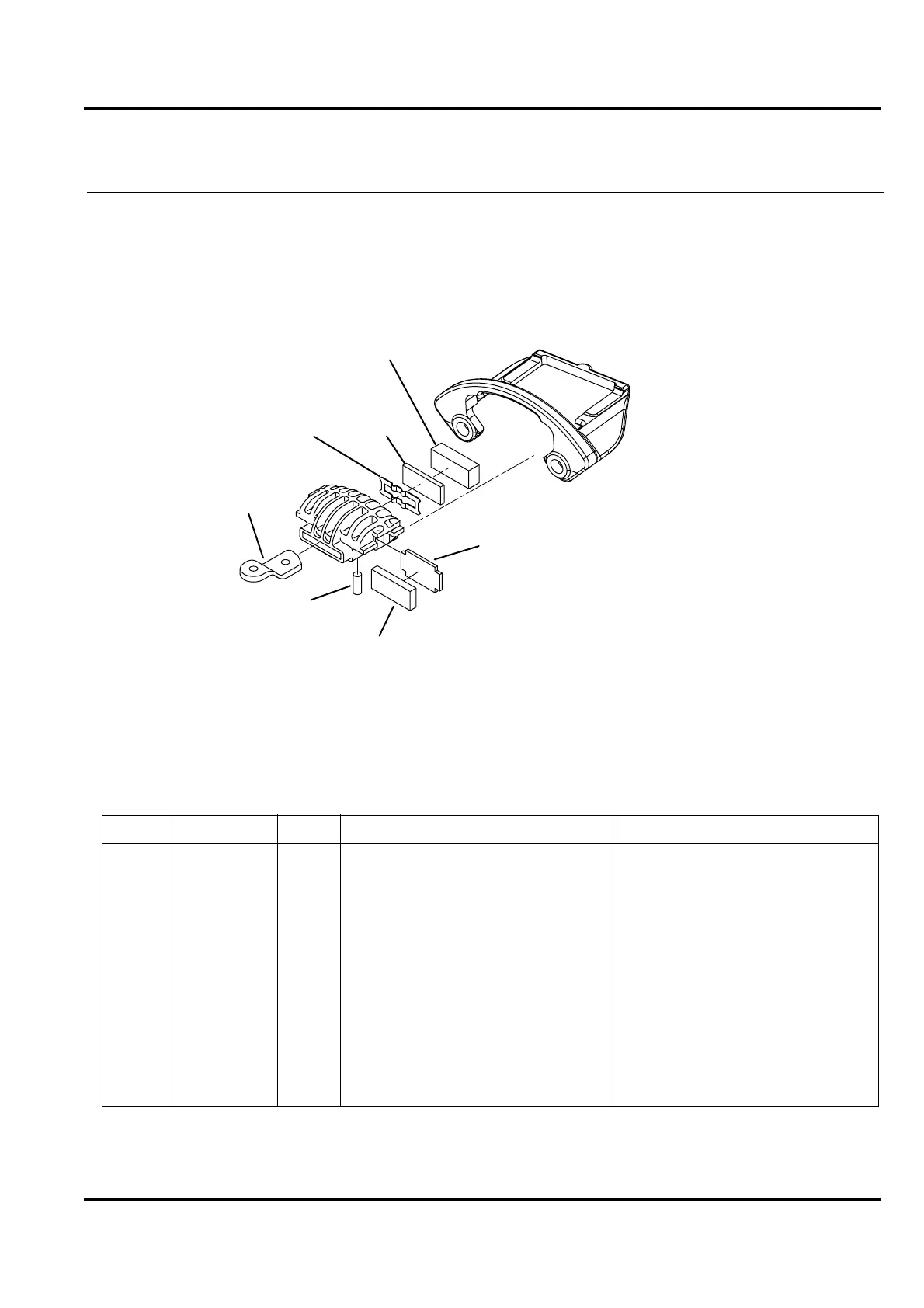

Jacobsen Tri-King Triplex - Brake Caliper Assemblies Illustration

101
> Change from previous revision
Item Part No. Qty. Description Serial Numbers/Notes
1
N/S 1 Cam R.H.
1 N/S 1 Cam L.H.
2 557823 1 Pivot Pin
3 503660 1 Carrier Side Pad
4 557824 1 Pad Support
5 557825 1 Lever Retainer Spring
6 557826 1 Pad Support
7 503660 1 Cam Side Pad
TRI-KING
40.1 Brake Calipers
Part No. 1001634 L.H.
Part No. 1001635 R.H.
Serial No.
1
2
3
4
5
7
6
