Jacobsen Tri-King Triplex - Reel Motor Assembly Illustration

94
> Change from previous revision
10
13
9
8
7
11
12
5
1
2
3
6
4
14
16
15
TRI-KING

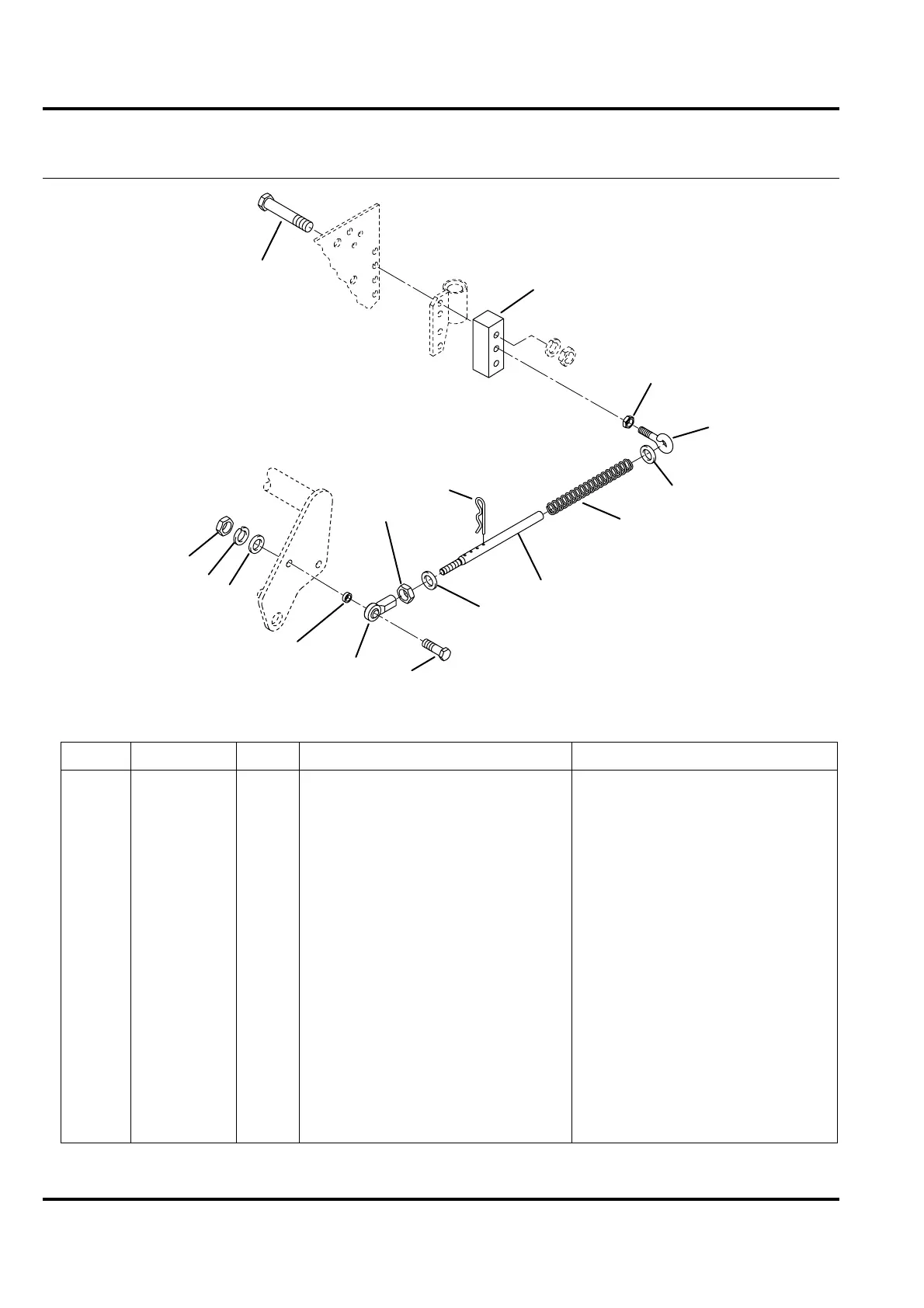

35.1 Down Pressure Kit
Used on 10 Blade Reels Only
Serial No. 67046 All
Serial No. 67047 All
Serial No. 67048 All
Item Part No. Qty. Description Serial Numbers/Notes
1002588 1 Down Pressure Kit
1
400268 2 • Screw, 3/8-16 x 1-3/4”
2 366974 2 • Rod End
3 364328 2 • Spacer
4 443812 2 • Nut, 3/8-24
5 347935 2 • Washer - Special
6 460312 2 • Hairpin
7 453017 2 • Washer
8 366978 2 • Eye Bolt
9 443810 2 • Nut, 3/8-16 Jam
10 400272 4 • Screw, 3/8-16 x 2-1/4
11 366976 2 • Spring
12 366975 2 • Tube-Down Pressure
13 3005136 2 • Block
14 453011 2 • Washer, 3/8
15 443110 2 • Nut, 3/8-16
16 446142 2 • Lockwasher, 3/8
