X-Series Waterblast Unit
COMPONENT IDENTIFICATION
Before operating the unit it is necessary to fully understand each component and how it functions.
Following is a brief description of the main components of the X-Series unit..
Engine
The engine is the source of power to drive the
pump. Several engine options provide a power
range of 110-325 HP (82-243 kW).
Clutch and PTO
The clutch, through use of a lever on top, pro-
vides the means to engage and disengage the
clutch. When engaged, power is transmitted
from the engine to the pump via the power
take off (PTO) and belt drive. The PTO contains a
shaft that rotates on bearings
Belt Drive
The belt drive is driven by the PTO. A pulley is
mounted on the PTO shaft and, when engaged,
drives the other pulley to operate the pump.
UNx™ Pump
The UNx pump uses the power from the engine
to pressurize the source water into high pres-
sure output. The pump is separated into two
sections, the power end and the uid end.
The power end contains the components that
drive the pump. It is also referred to as the
“crank end” because it contains a crankshaft.
The uid end contains the components that de-
termine the output pressure of the pump. The
operator may change the output pressure and
ow of the pump by changing the components
in the uid end. The uid end is also referred
to as the “wet” end as this is where the water
travels in and out of the pump.
Refer to the pressure specic catalogs (15K,
20K and 40K) for detailed exploded views and
component part numbers for the uid and
power ends. The catalogs are available at the
following website:
https://waterblast.com/new-catalogs
Water Tank and Filters
The 100 gal. (440 L) surge tank connects to a
supply source through an elbow on the side of
the tank. The tank houses two lter bags that
lter supply water. The tank contains a oat

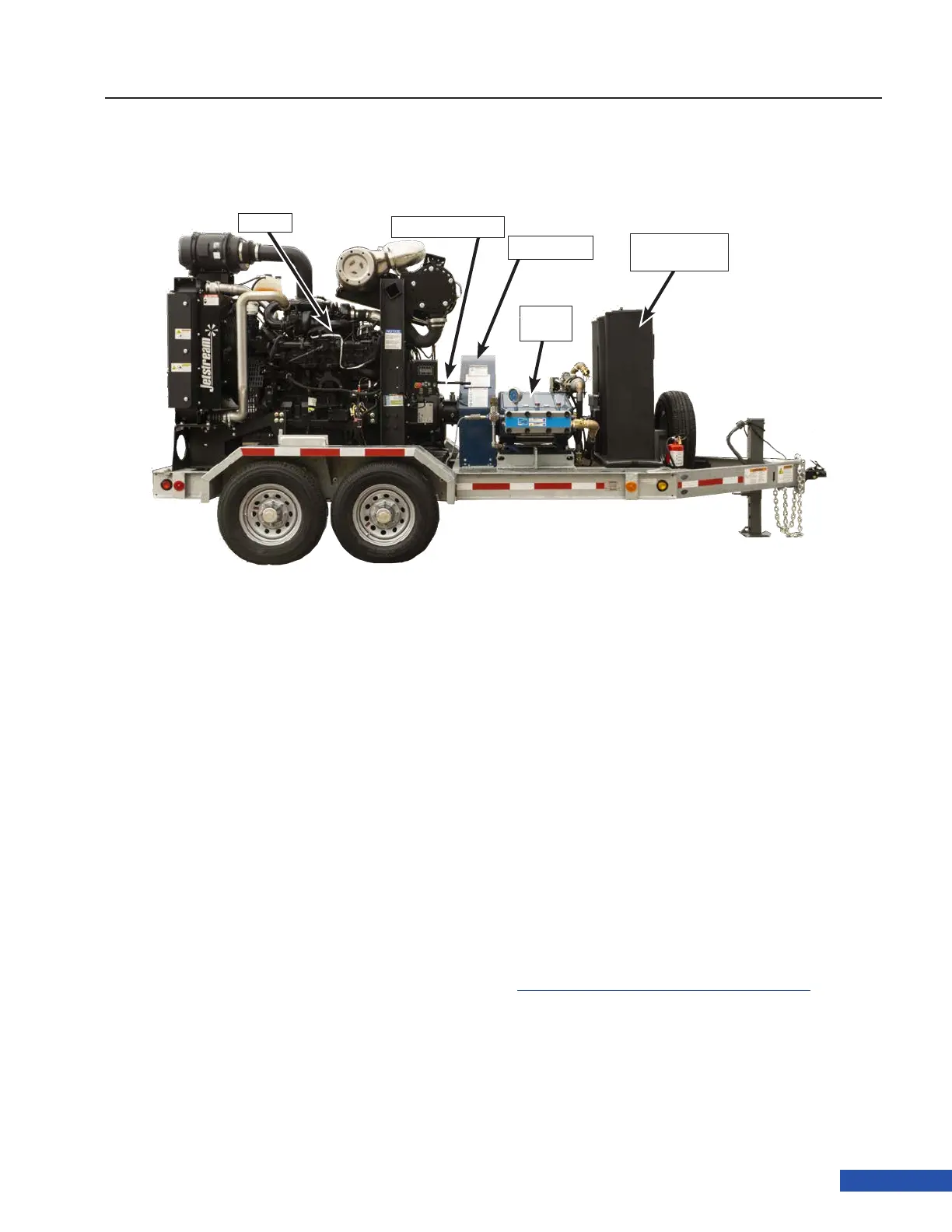

Figure 8: X-Series Waterblast Unit
Engine
UNx
Pump
Water Tank
& Filters
Clutch & PTO
Belt Drive
