JETStream X Series - 15 K, 20 K Uni-Valve Service

63
X-Series Waterblast Unit
1
2
3
4
5
6
7
8
9
10
11*
12
13
14
1. O-Ring
2. Backup Ring
3. O-Ring
4. Suction Valve
5. Discharge Valve Body
6. O-Ring
7. Backup Ring
8. O-Ring
9. Discharge Valve
10. Discharge Valve Spring
11. Retaining Ring (3015 Valves
Only)
12. Suction Valve Spring
13. Spring Retainer
14. Retaining Ring

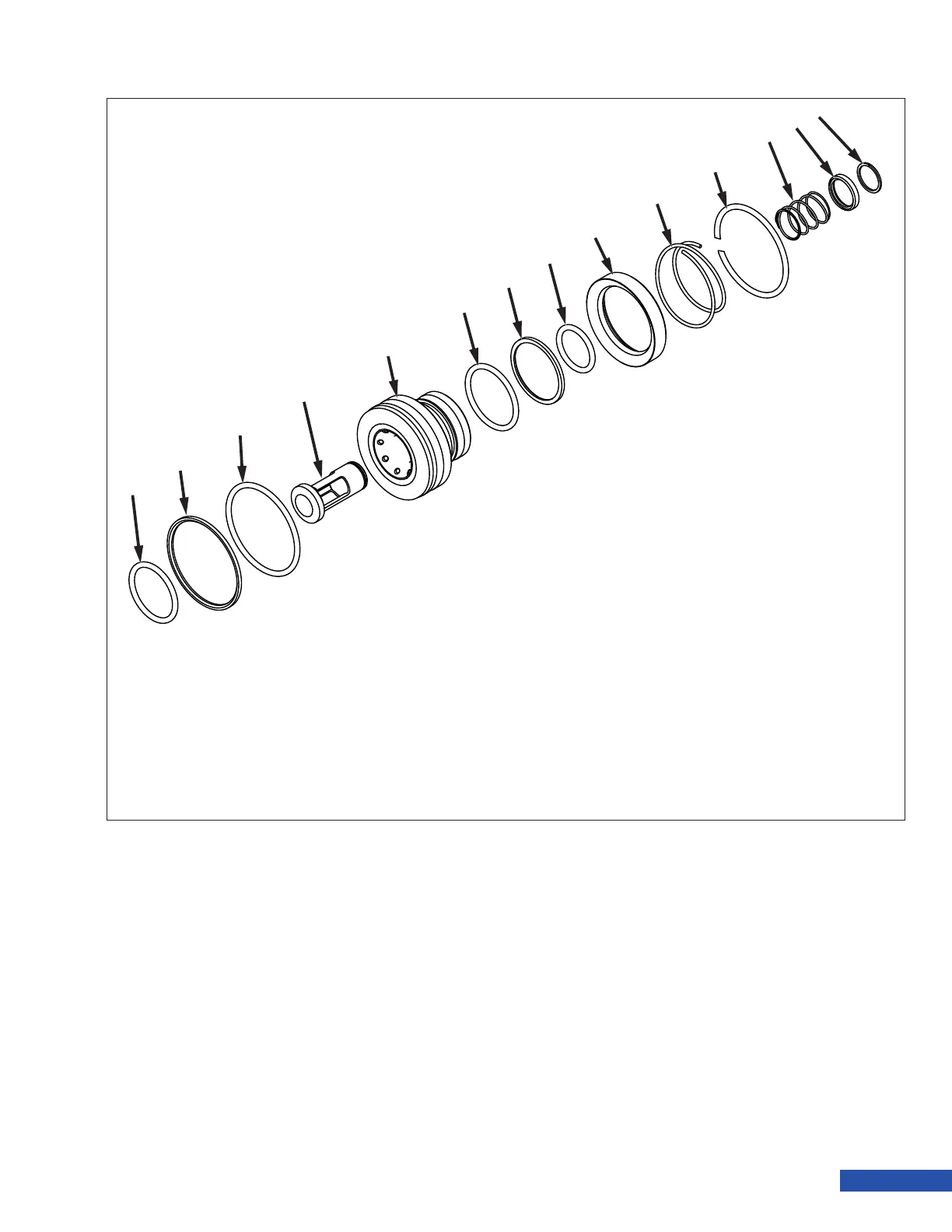

Figure 115: 15/20K Uni-Valve Exploded View.
