X-Series Waterblast Unit
Lighting And Reectors
Side Lights and Reectors
The trailer is equipped with two front clearance
lights (Figure 23) to show the trailer’s width.
The lights will illuminate when the tow vehicle
has it’s lights turned on.
The two side marker lights and reectors show
the trailer’s presence and length. The lights
will illuminate when the tow vehicle has it’s
lights turned on.
Rear Lights and Reectors
The trailer is equipped with two rear clearance
lights (Figure 24) to show the trailer’s width.
The lights will illuminate when the tow vehicle
has it’s lights turned on.
The two side marker lights and reectors show
the trailer’s presence and length. The lights
will illuminate when the tow vehicle has it’s
lights turned on.
The three rear markers lights are required for
trailers over 80 in. (203 cm) wide. The lights
will illuminate when the tow vehicle has it’s
lights turned on.
The two rear tail lights will illuminate when
the tow vehicle has it’s lights turned on. The
turn signals and brake lights illuminate when
the tow vehicle uses a turn signal or depress-
es the brake pedal.

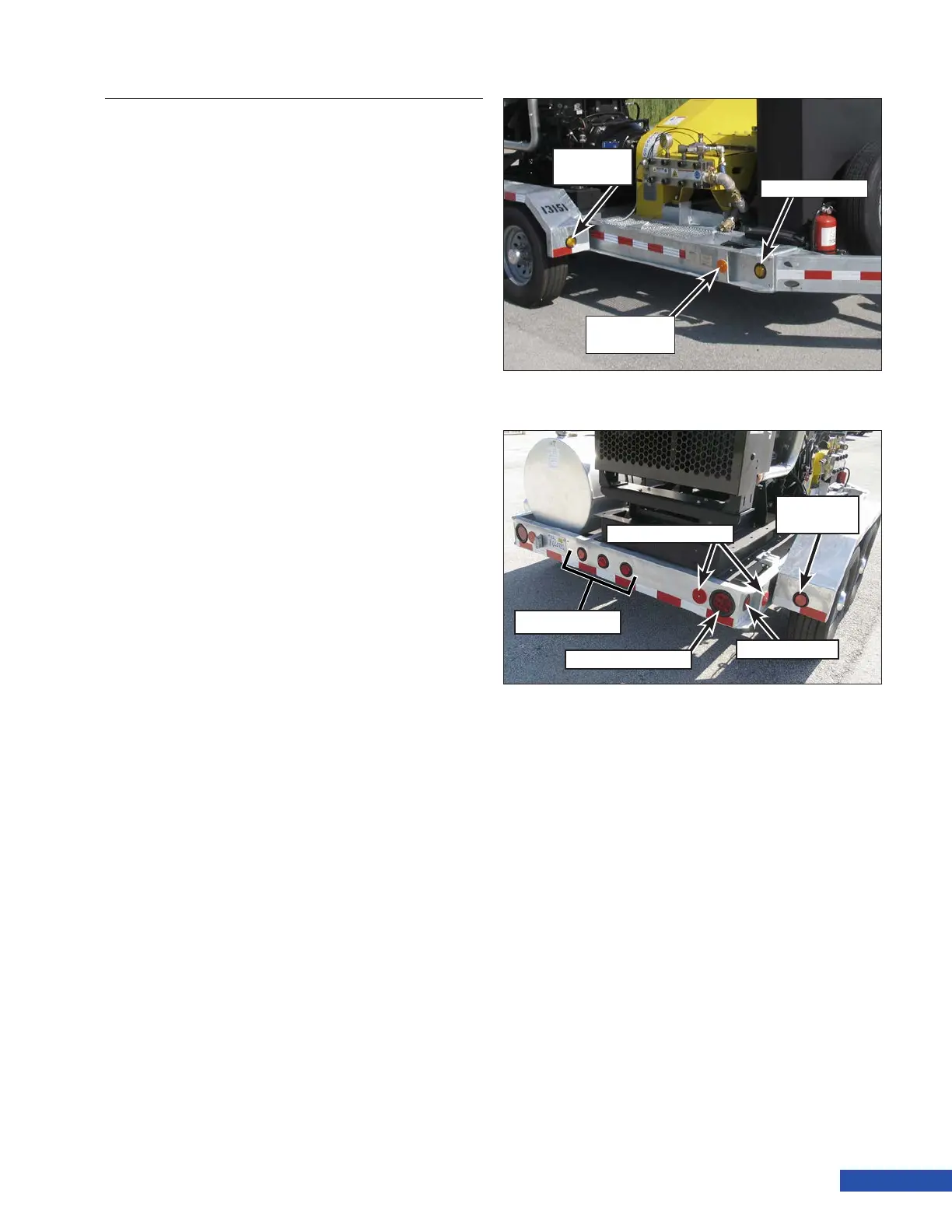

Figure 23: Side Lighting.
Front Clear-
ance
Side Marker
Reflectors
Side Markers
Figure 24: Rear Lighting.
Rear Markers
Tail, Brake, Turn
Side Marker
Rear
Clearance
Rear Reflectors
