JETStream X Series - Uni-Valve Service

60
Operation Manual
Installation
1. Place the valve into position on the mani-
fold. Using the palms of your hands, press
the valve into the manifold as shown in
(Figure 106).
2. Install the remaining valves.
3. Swing the manifold upward to install the
bolts.
4. Install the manifold bolts and tighten in
a crisscross sequence starting with the
center bolts (Figure 107). Proper torque is
350 ft.-lb. (470 N·m).
5. Connect the water lubrication lines (Fig-
ure 108) to the stufng boxes and close
the rod box cover.
6. Connect the supply coupling (Figure 109)
and the bypass hose to the manifold.
Figure 107: Tightening Sequence.
Cover
Lubrication
Lines
Figure 108: Connecting the Water Lubrication Lines.
Bypass Hose
Supply Coupling
Figure 109: Hose Connections.

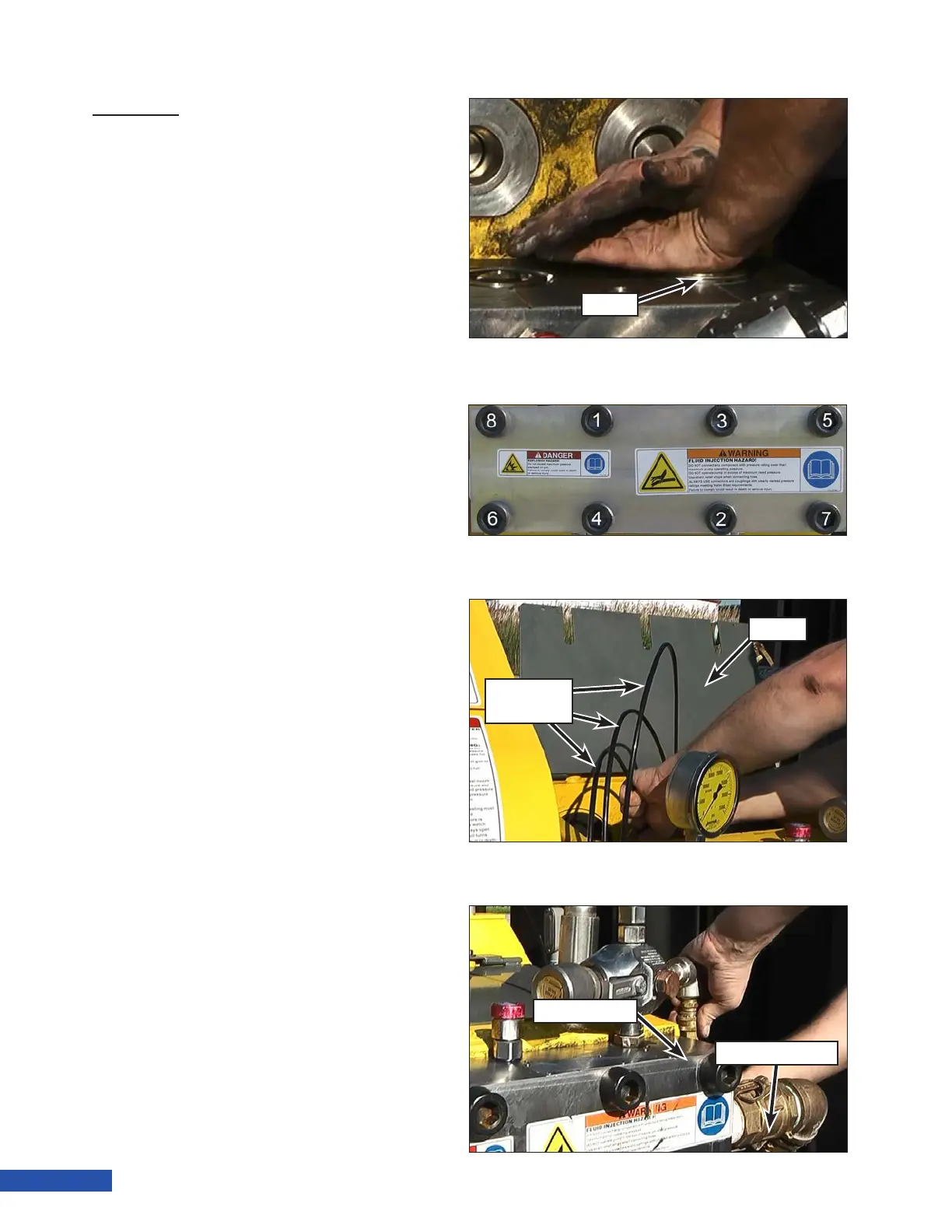

Figure 106: Installing the Valves.
Valve
