Jetstream Connections
The Jetstream wiring harness is connected to
the control panel via two wires on the bottom
of the panel through a terminal strip (Figure
28). The grey wire is the shutdown circuit and
is connected to the red wire from the harness.
The orange wire is the hydro-throttle circuit,
and is connected to the yellow wire from the
harness.

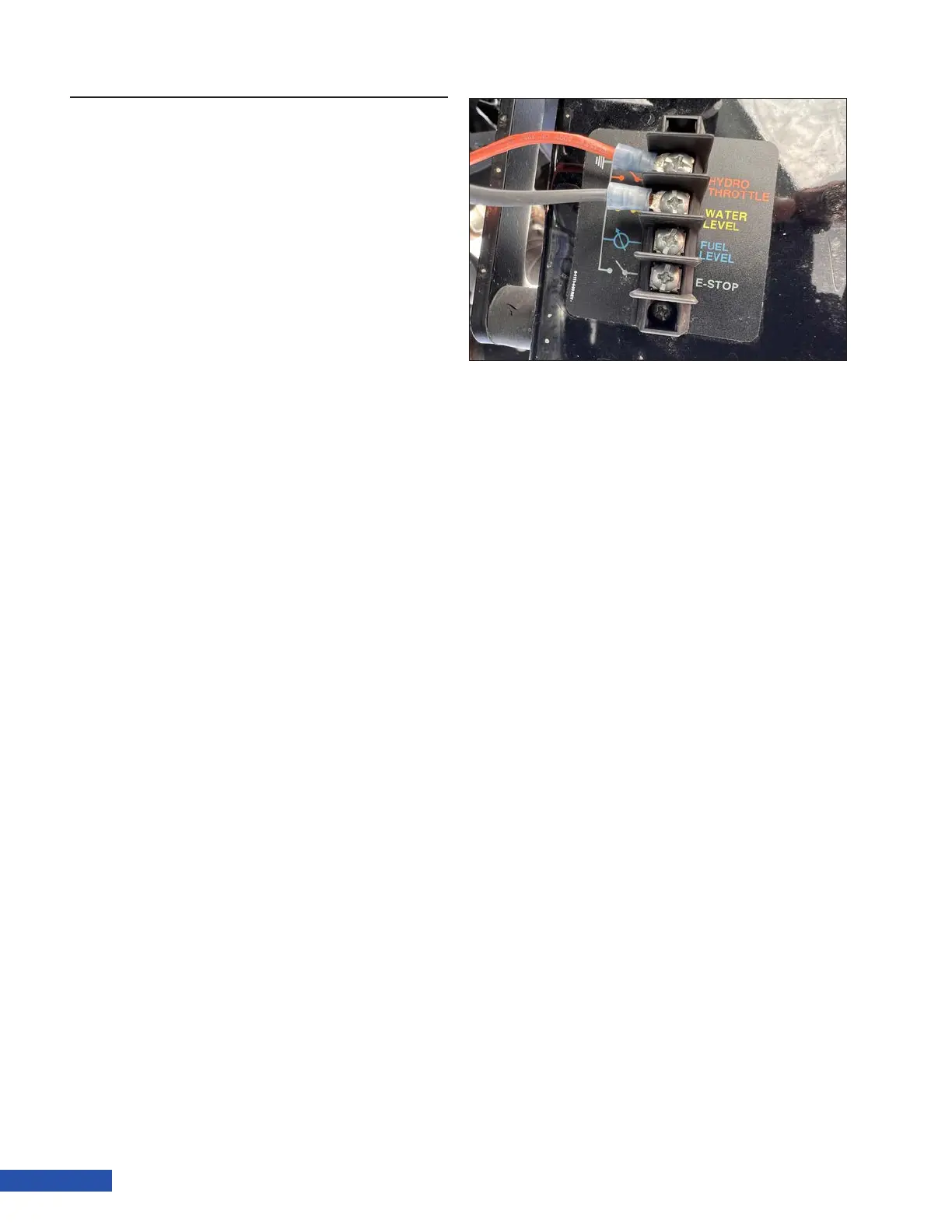

Figure 28: Jetstream Wiring Connections.
