13
X-Series Waterblast Unit
TRAILER UNITS
Trailer Components
Fire Extinguisher (Optional)
A multi-purpose dry chemical re extinguisher
(Figure 19) is located ahead of the water tank
on the trailer for emergencies.
Spare Tire (Optional)
A spare tire (Figure 19) is available in the event
of a blowout. Always keep the spare properly
pressurized to the sidewall rating.
Jack Stand
The jack stand (Figure 19) supports the trailer
when not being towed and can be used to level
the unit. Use the hand crank to adjust tongue
height up or down. The support capacity of the
jack stand is as follows:
• 3000 Series: 7000 lb. (3175 kg)
• 3600/4200 Series: 12000 lb. (5443 kg)
Adjustable Ball Hitch
The adjustable height hitch (Figure 20) is
available with a 2 in. ball, 2 5/16 in. ball, lu-
nette ring or bulldog style attachments. The
hitch can be adjusted up or down to keep the
trailer level when towing.
Safety Chains
Hook the safety chains (Figure 20) to the tow
vehicle before towing the trailer. The chains
keep the trailer with the tow vehicle in the
event of a hitch failure.
DANGER
!!
The trailer must be level during towing to prevent
abnormal tire wear, dangerous tire overload or
failure.
Fire Extinguisher
Jack Stand
Spare Tire

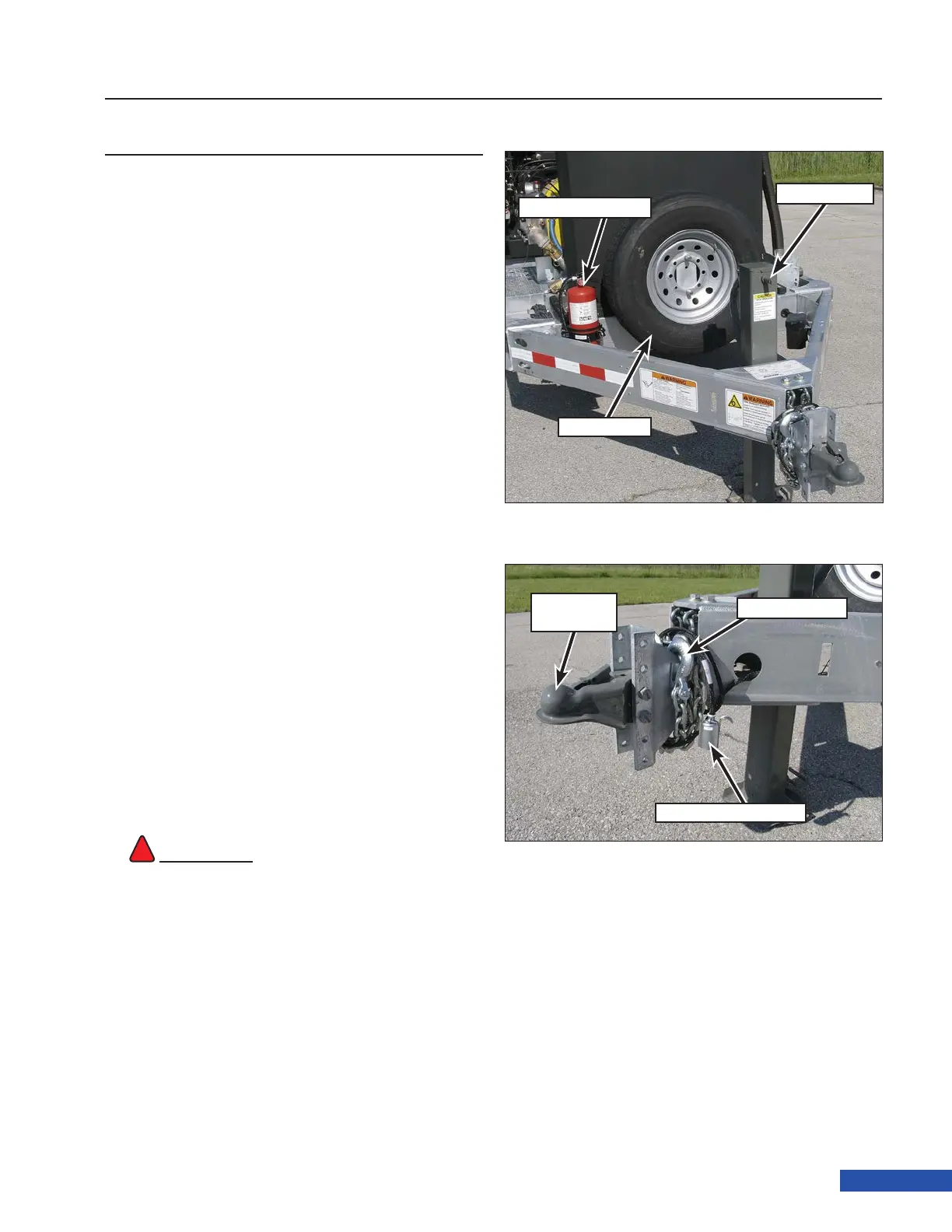

Figure 19: Trailer Components.
Figure 20: Tow Components.
Adjustable
Ball Hitch
Electrical Connector
Safety Chains
Electrical Connector
The 7-pin electrical connector (Figure 20)
connects the tow vehicle’s electrical system
(lighting, charging, braking) to the trailer.
Note: The center pin on the electrical con-
nector is not used.
