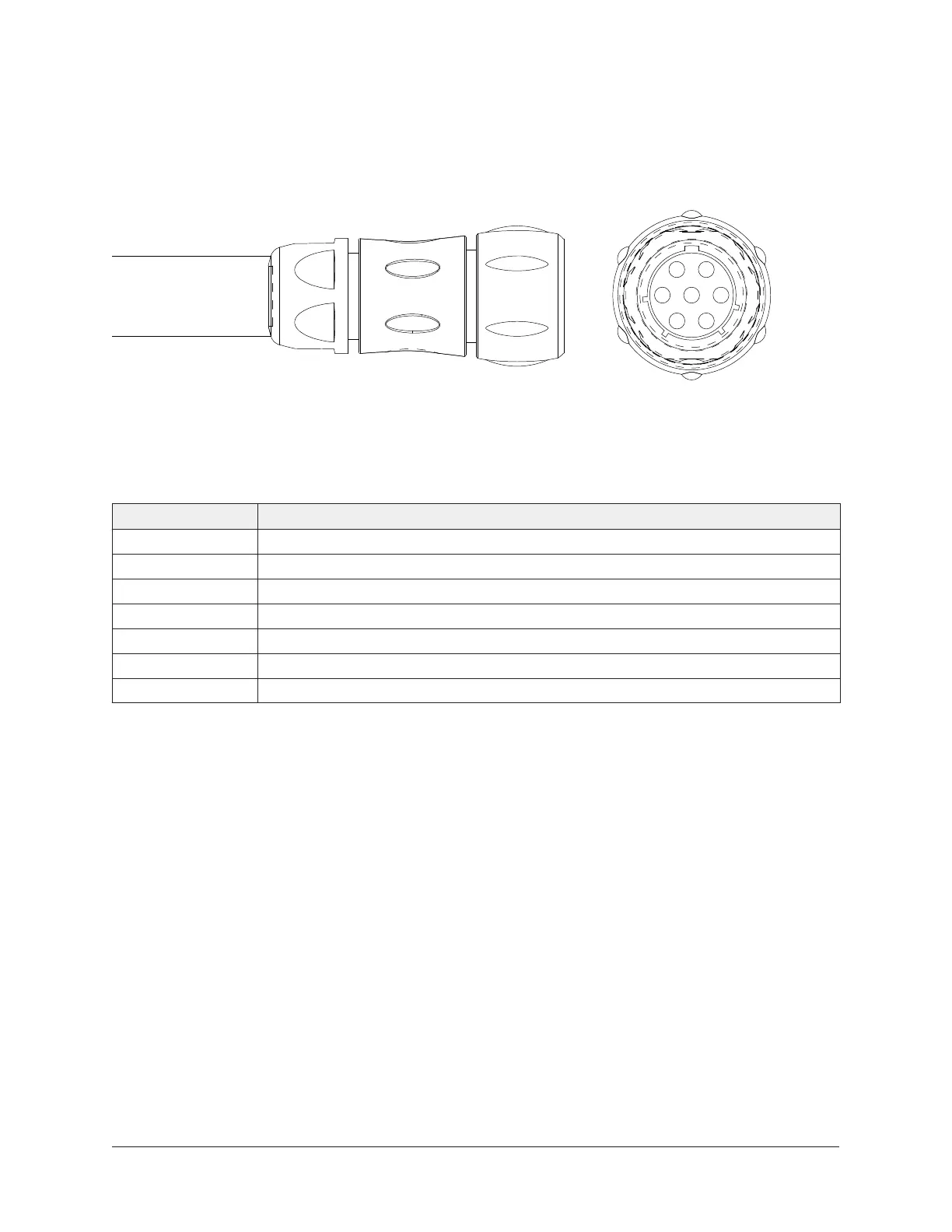

Figure 52: VSD connections for cable 52
Cable 52: VSD to OptiView
VSD
END
LD23207a
GND
6
1
2
3
4
5
092-51870-009
REV F, SHT. 8
025-49304-000 Wire Entry View
Table 15: Cable 52 VSD end
Item Description
1 TB7-16/BLK
2 TB7-53/RED
3 Contact Pin
4 Not used
5 Not used
6 Not used
GND Bare/Drain
79Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
