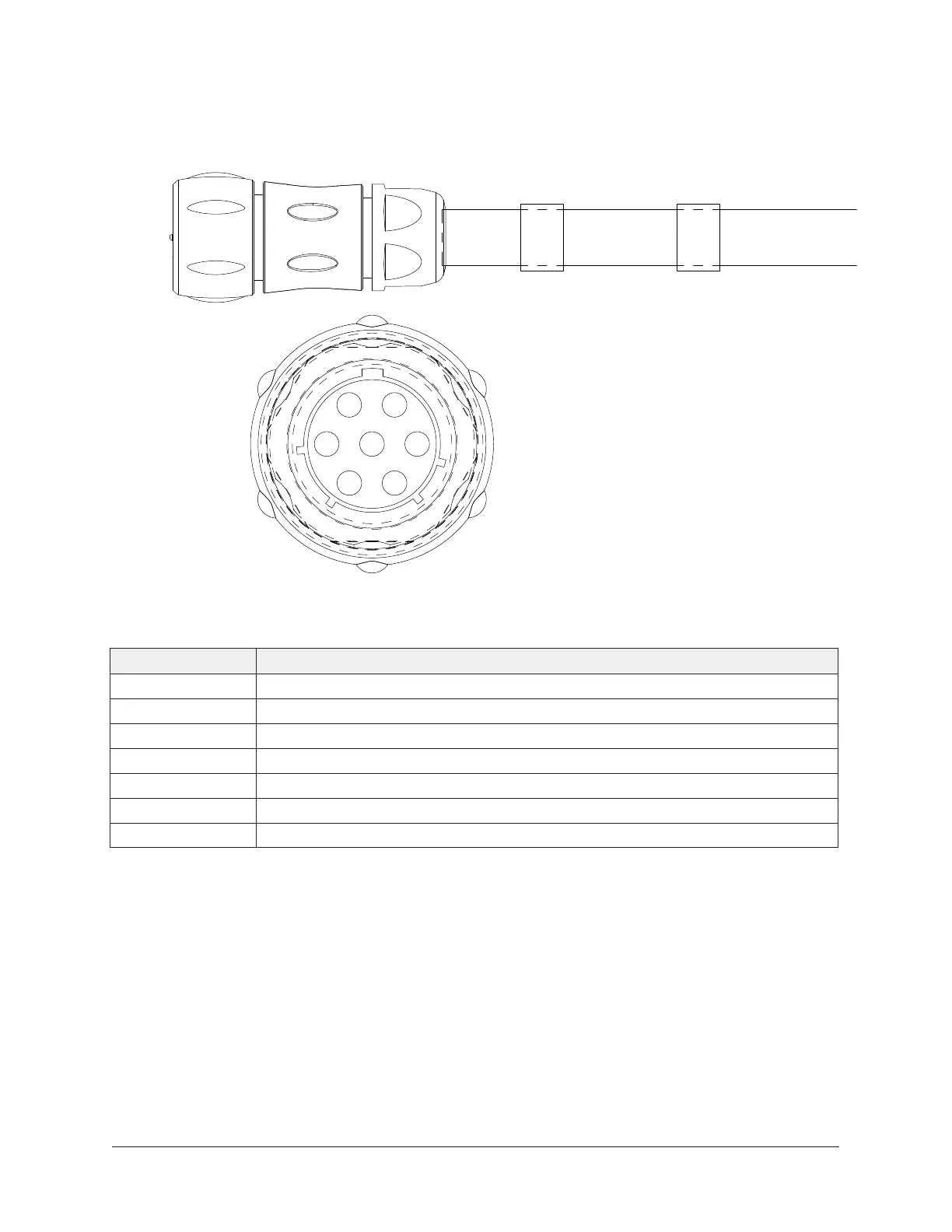

Figure 53: VSD connections for cable 124 (VGD end)
LD23206b
GND
1
2
3
4
5
6
025-49209-000 Wire Entry View
VSD
END
Cable 124:
VSD to VGD
Table 16: Cable 124 VSD end
Item Description
1 RED/+48 VDC
2 BLK/RTN
3 BRN/GND
4 Contact Pin
5 Not used
6 Contact Pin
GND Bare/Drain
