Johnson Controls YZ - Page 81

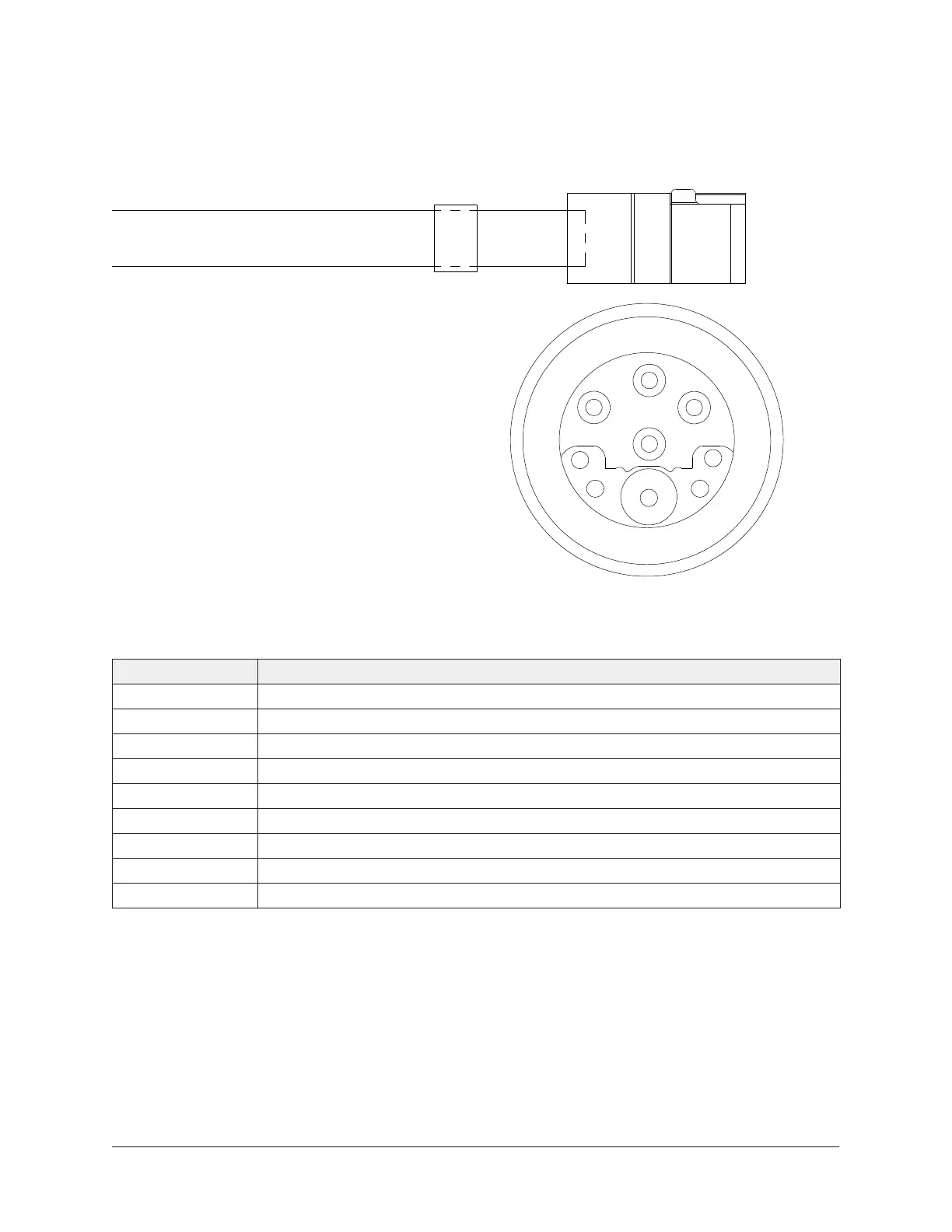

Figure 53: VSD connections for cable 124 (VGD end)
Cable 124: VSD to VGD
VGD
END
Wire Entry View
LD23207b
A
B
C
5
1
2
3
4
GND
092-51870-000
REV D
Table 17: Cable 124 VGD end
Item Description
1 Not used
2 Not used
3 Not used
4 Not used
5 Not used
A Red/+48 VDC
B BLK/RTN
C Not used
GND BRN/GND
81Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
