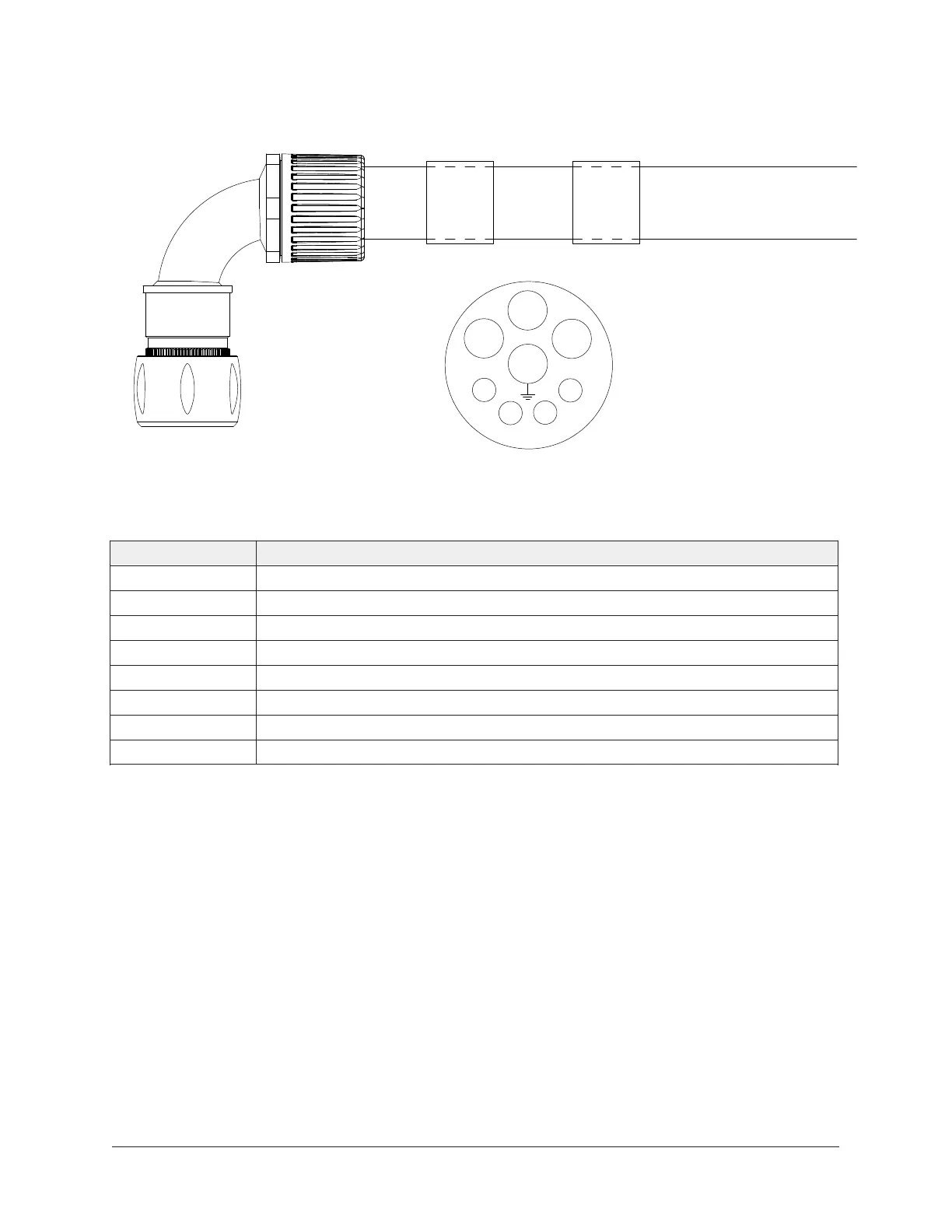

Figure 55: VSD connections for cable 126 (OptiView end)
LD23208a
1
2
3
A
B
C
D
025-45932-000 Wire Entry View
VSD END
Cable 126:
VSD to OptiView Panel
Table 19: Cable 126 VSD end connections
Item Description
1 BLK/CLL
2 WHT/2
3 BLK/L
GND GRN-YEL/GND
A BLK/24
B BLK/R24
C Not used
D Contact Pin
Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller84
