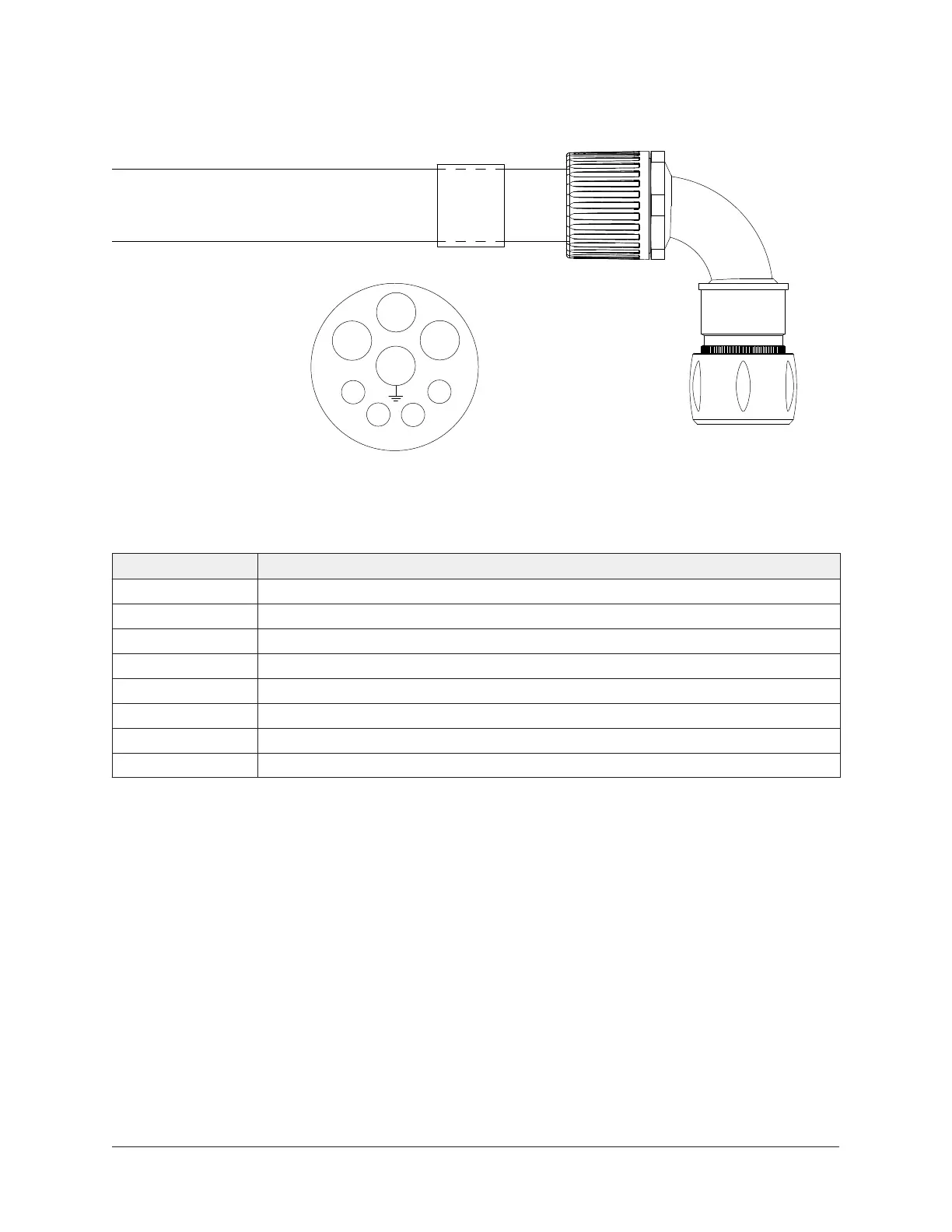

Figure 55: VSD connections for cable 126 (OptiView end)
LD23209b
2
3
1
A
B
C
D
092-51870-007
SHEET 1 REV E
025-45933-000 Wire Entry View
OPTIVIEW PANEL END
Cable 126: VSD to OptiView Panel
Table 20: Cable 126 OptiView panel end connections
Item Description
1 BLK/CLL
2 WHT/2
3 BLK/L
GND GRN-YEL/GND
A BLK/24
B BLK/R24
C Contact Pin
D Not used
