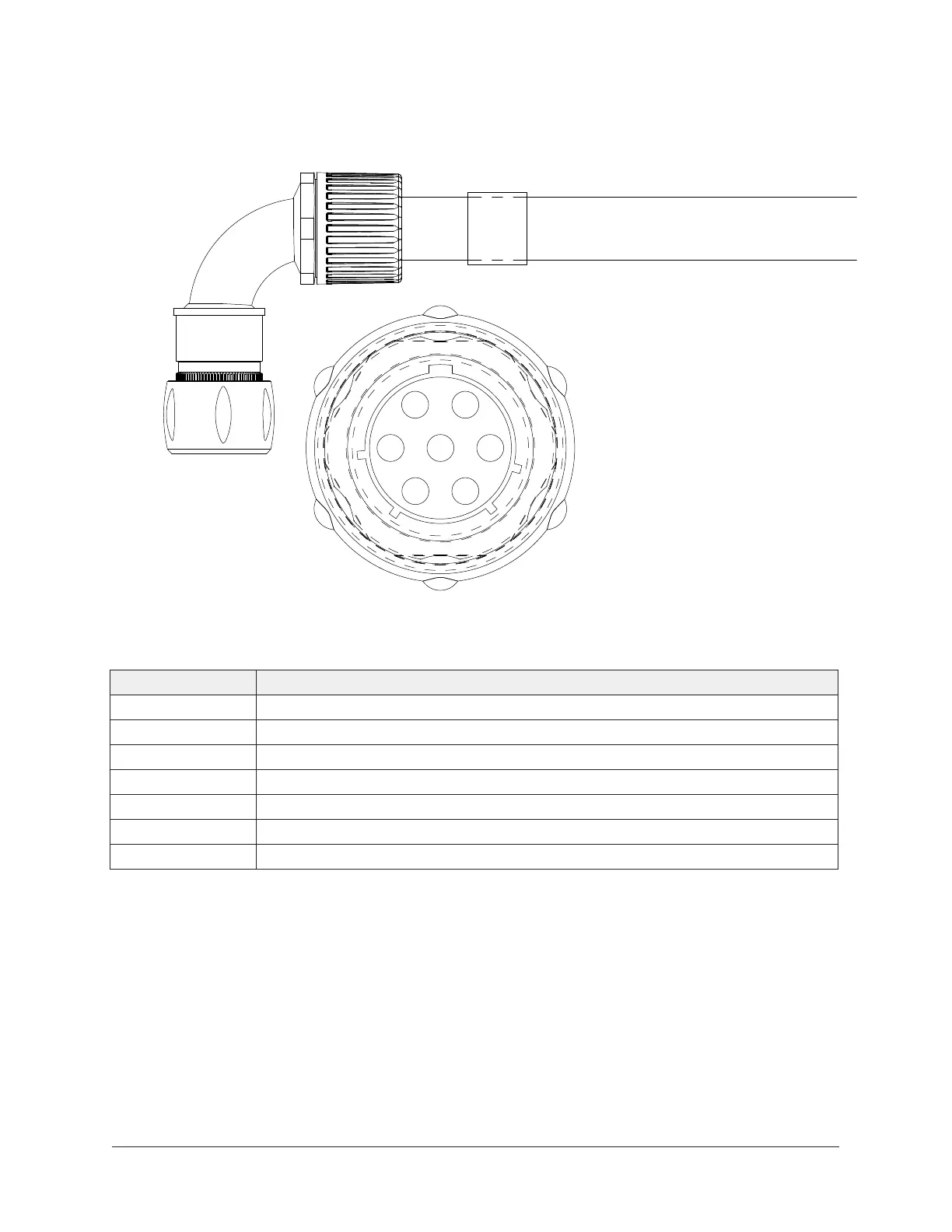

Figure 56: VSD connections for cable 129 (MBC HV end)
LD23210a
1
6
2
3
4
5
GND
VSD END
Cable 129: VSD to MBC (HV)
025-49211-000 Wire Entry View
Table 21: Cable 129 VSD end connections
Item Description
1 Not used
2 RED/300VDC (CL)
3 BLU/15VDC (CL)
4 BLK/COM
5 ORG/GND
6 Contact Pin
GND Bare/Drain
