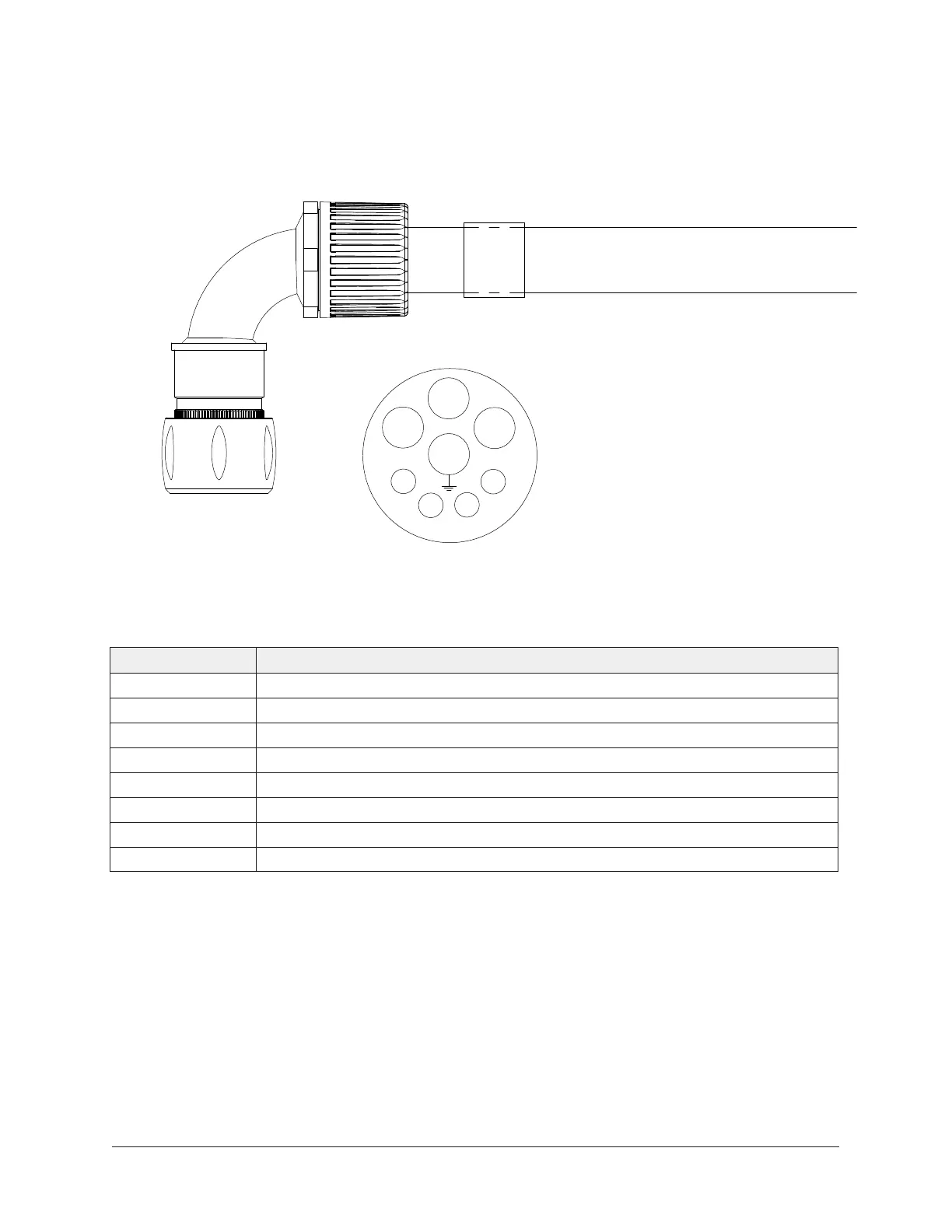

Figure 57: VSD connections for cable 130 (purge panel end)
LD23210b
2
1
3
A
B
C
D
VSD END
Cable 130: VSD to Purge Panel
025-45932-000 Wire Entry View
Table 23: Cable 130 VSD end connections
Item Description
1 BLK/L
2 WHT/2
3 Not used
GND GRN-YEL/GND
A Not used
B Not used
C Contact Pin
D Not used
Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller88
