Johnson Controls YZ - Page 89

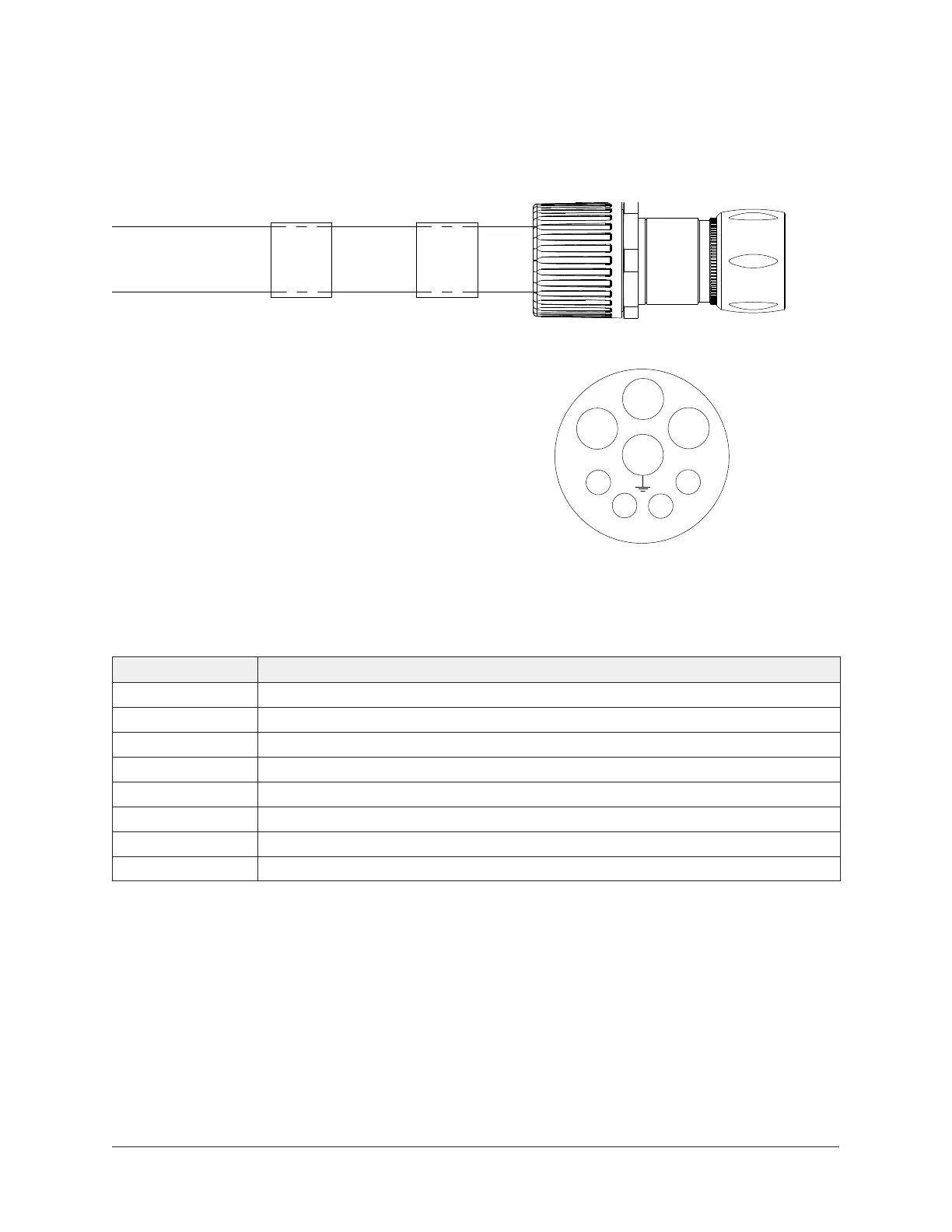

Figure 57: VSD connections for cable 130 (purge panel end)
LD23211b
2
1
3
A
B
C
D
092-51870-013
SHEET 1 REV E
PURGE
PANEL
END
Cable 130:
VSD to Purge Panel
025-45933-000 Wire Entry View
Table 24: Cable 130 purge panel end connections
Item Description
1 BLK/L
2 WHT/2
3 Not used
GND GRN-YEL/GND
A Not used
B Not used
C Not used
D Contact Pin
89Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
