Johnson Controls YZ - Page 90

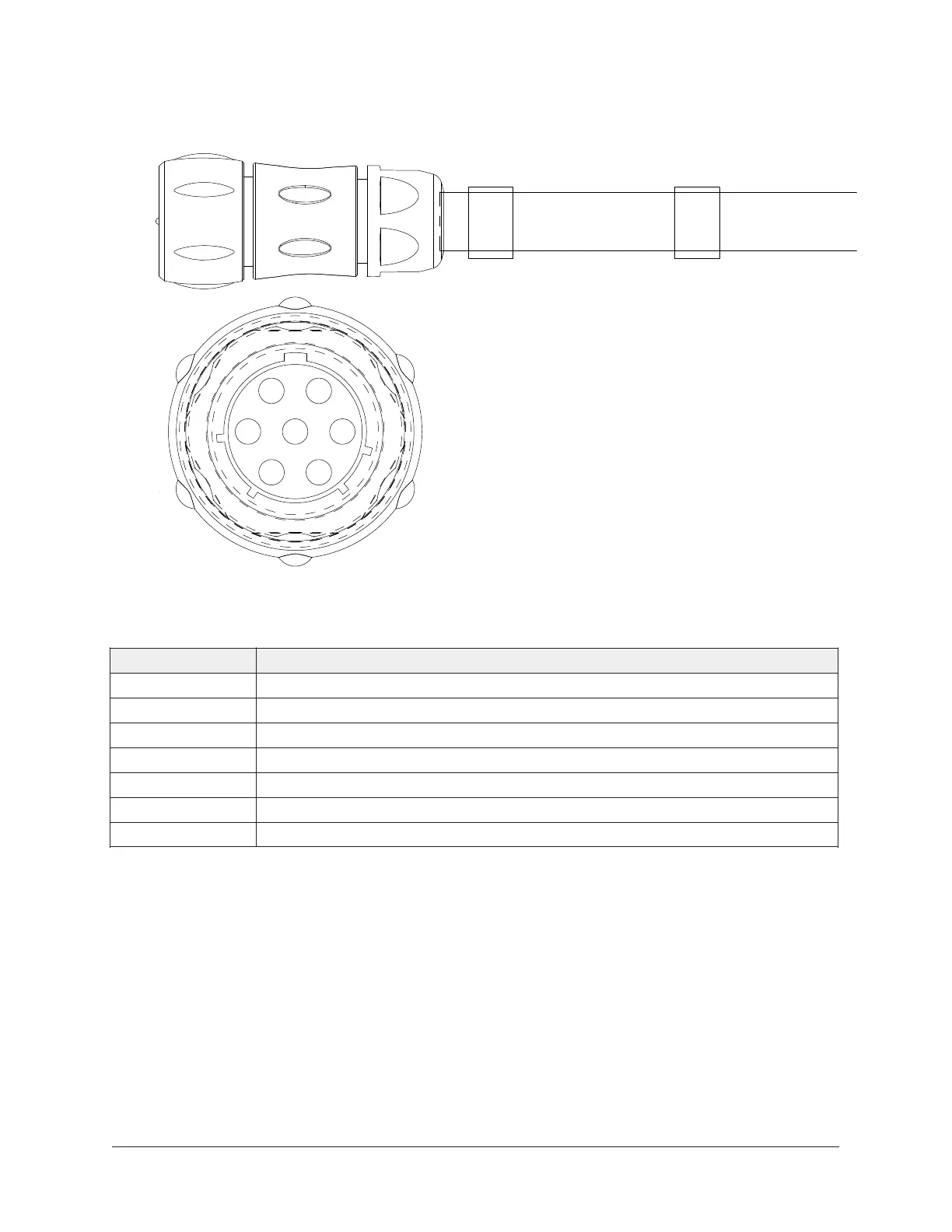

Figure 58: VSD connections for cable 132 (MBC LV end)
LD23212a
1
2
3
4
5
6
GND
025-49209-000 Wire Entry View
VSD
END
Cable 132:
VSD to MBC (LV)
Table 25: Cable 132 VSD end connections
Item Description
1 RED/MBC +24VDC (CL)
2 Not used
3 BLK/MBC 24RTN
4 RED/IO +24VDC (CL)
5 BLK/IO 24RTN
6 Contact Pin
GND Bare/Drain
Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller90
