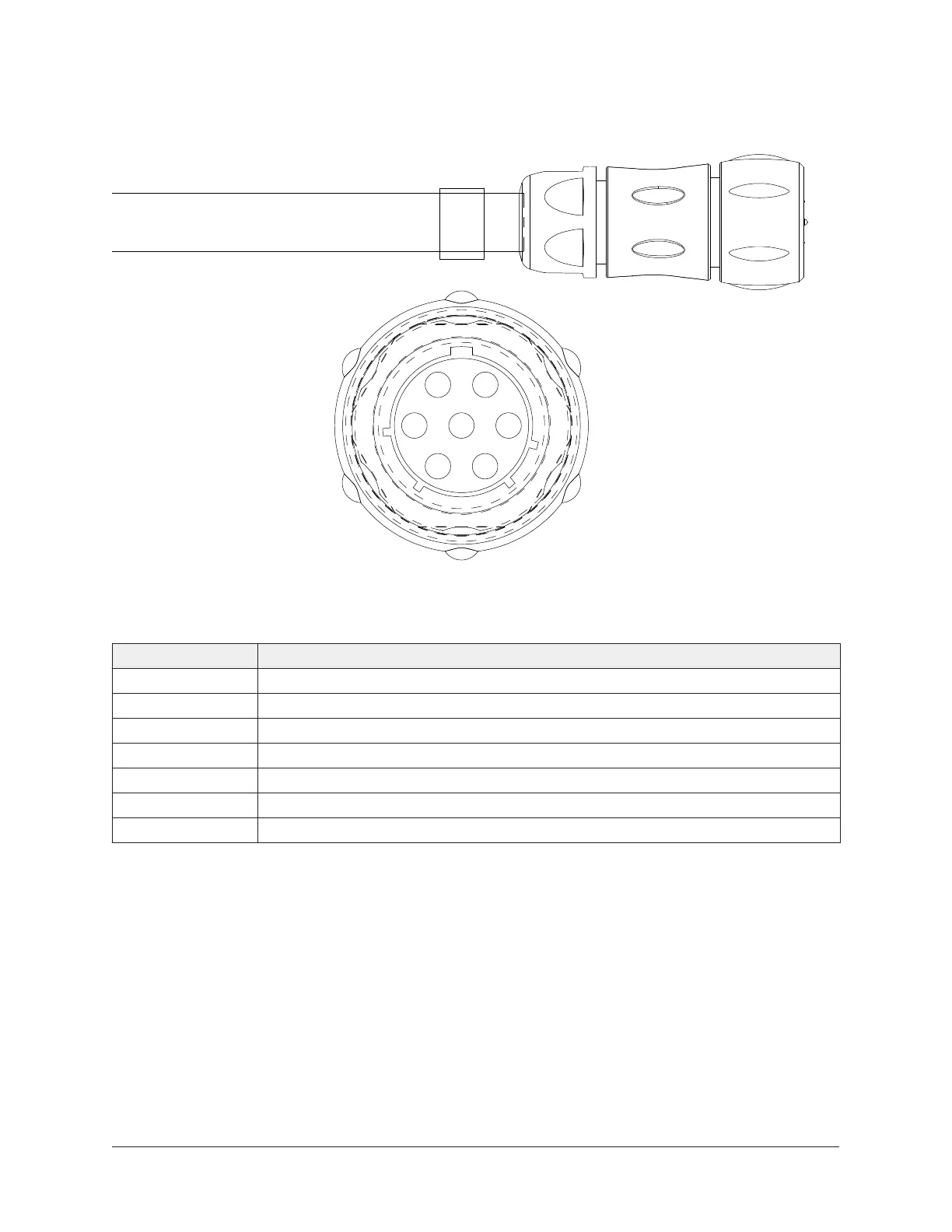

Figure 58: VSD connections for cable 132 (MBC LV end)
LD23213a
6
1
2
3
4
5
GND
092-51870-016
SHEET 1 REV D
025-49304-000 Wire Entry View
MBC
END
(LV)
Cable 132: VSD to MBC (LV)
Table 26: Cable 132 MBC end connections
Item Description
1 RED/MBC +24VDC (CL)
2 Contact Pin
3 BLK/MBC 24RTN
4 RED/IO +24VDC (CL)
5 BLK/IO 24RTN
6 Contact Pin
GND Bare/Drain
