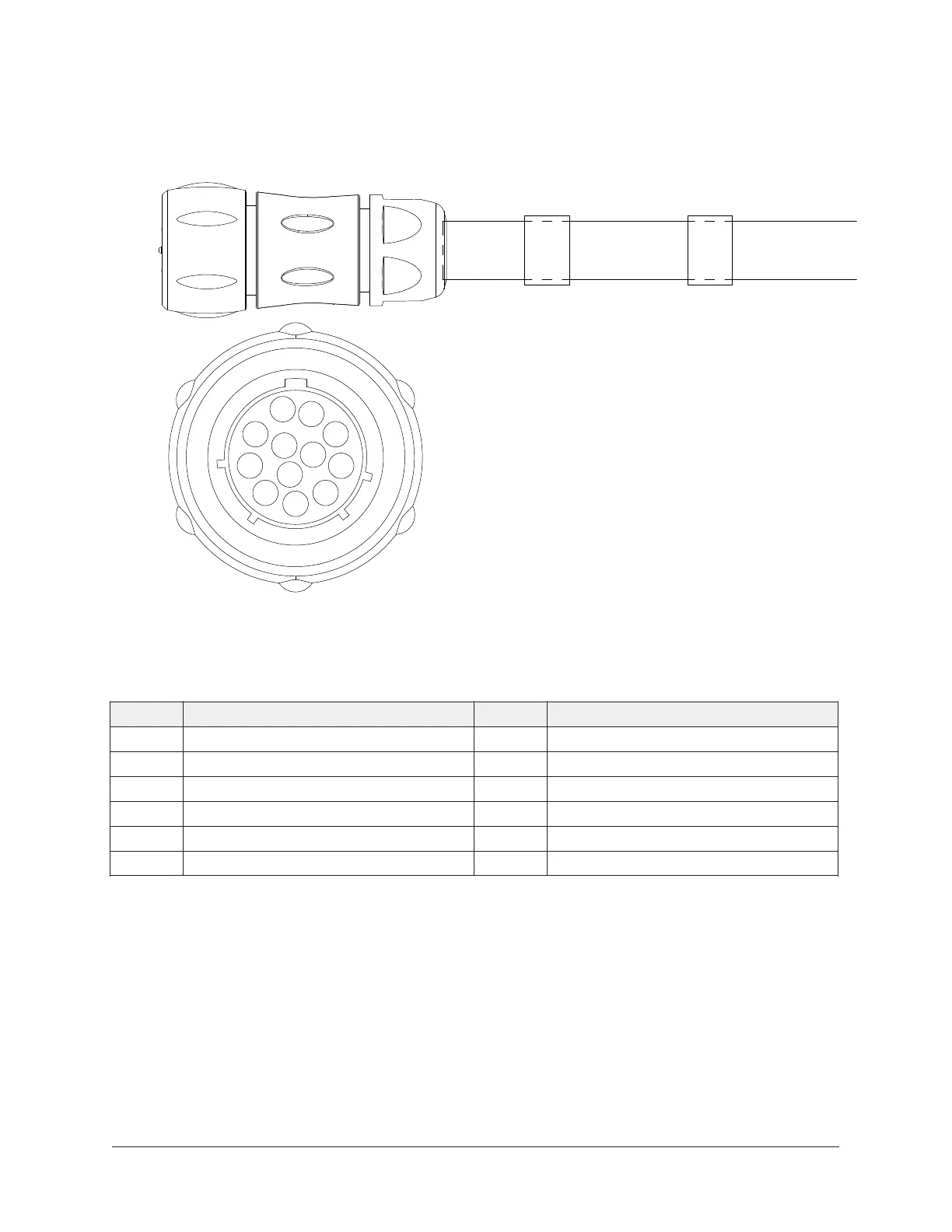

Figure 59: VSD connections for cable 133 (OptiView LV end)
LD23212b
1412P
A
B
C
D
E
F
G
H
J
K
L
MM
025-49416-000 Wire Entry View
VSD
END
Cable 133: V
SD to OptiView
(LV)
Table 27: Cable 133 VSD end connections
Item Description Item Description
A ORG/UPS Line-Charging G Bare/Drain
B GRN/UPS Line Inverter H BLK/UPS Battery (-)
C BRN/UPS Fault J YEL/12V
D Not used K Not used
E RED/UPS Battery (+) L Not used
F BLU/UPS Enable M Not used
Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller92
