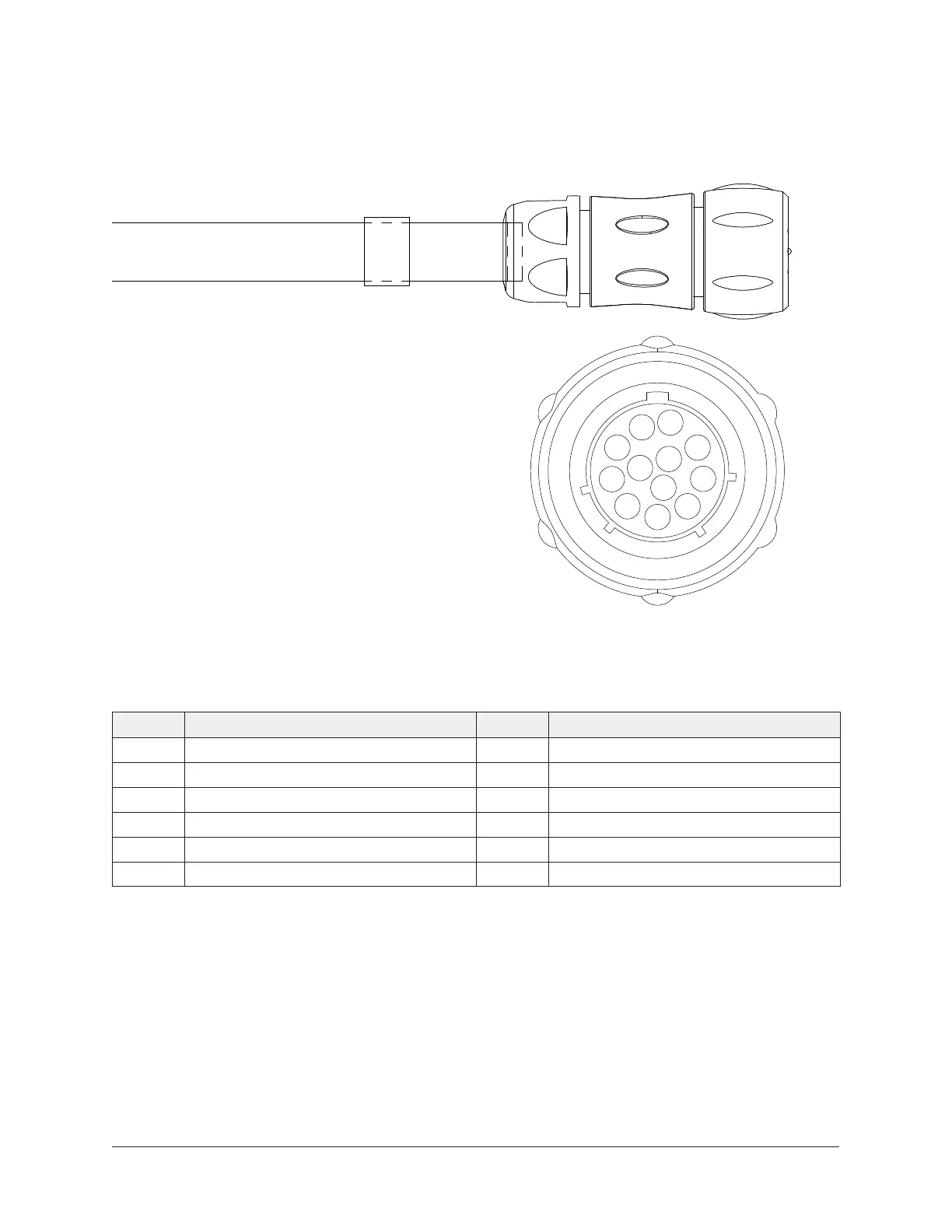

Figure 59: VSD connections for cable 133 (OptiView LV end)
LD23213b
1412S
A
B
C
D
E
F
G
H
M
J
K
L
092-51870-017
SHEET 1 REV D
025-49210-000 Wire Entry View
OptiView
END
(LV)
Cable 133:
VSD to OptiView (LV)
Table 28: Cable 133 OptiView end connections
Item Description Item Description
A ORG/UPS LINE-CHARGING G Bare/Drain
B GRN/UPS LINE INVERTER H BLK/UPS Battery (-)
C BRN/UPS Fault J YEL/12V
D Contact Pin K Not used
E RED/UPS Battery (+) L Not used
F BLU/UPS Enable M Not used
93Unit Wiring and Field Connections for YZ Centrifugal Chiller with Magnetic Bearing Controller
