Jomox ALPHA BASE User Manual

Version OS 1.0
7.2 Sample Analog Engine
After the sample there is an analog VCA (Voltage Controlled Amplifier) envelope, which
produces an analog loudness curvature of the digital sample. Furthermore, you can

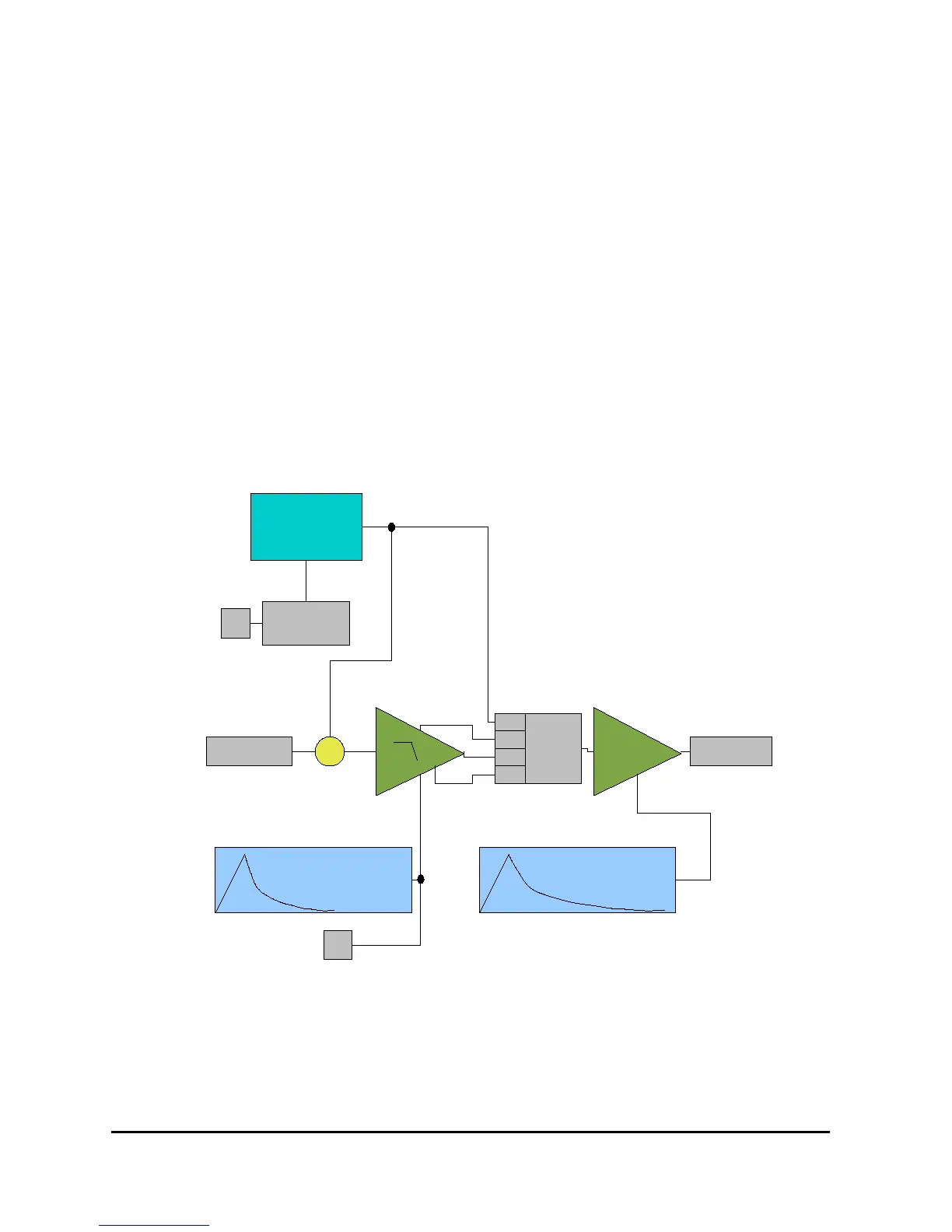

insert a filter into the signal path between the sample output and the final VCA. See the
block diagram of one sample based analog voice below. Note that the structure is the
same for all voices, but the two HH channels have a 6dB LP/HP filter optimized for Hi
Hats and the other four channels a 12dB resonating multimode filter with LP, HP and
BP.
If the sample playback is muted (sample = <off>), you can only hear the analog
signals like metal noise run through the filter or the filter resonance whistling. That
requires routing to be > 0 because with routing = <000> the analog filter and metal
noise are turned off and only the sample runs through the final VCA.
46 ALPHA BASE Operating Manual
Final VCA
Pitch
Volume
Routing
Analog Filter
(HH Filter or Multimode)
Filter Envelope
VCA Envelope
+
OutputMetal Noise
LFO
D/A
Digital
Sample
LFO
Cutoff
CV
One of 6 sample based analog voices
0
1
2
3
LP
HP
BP

Jomox ALPHA BASE Specifications

General

Voices	11
Analog Voices	8
Sequencer	Yes
Connectivity	MIDI In/Out/Thru, USB
Display	LCD
Type	Drum Machine
Effects	Delay, Reverb
Outputs	Main stereo output, headphones output
Inputs	2x 6.3mm Jack Inputs
Memory	Pattern
Power Supply	External Power Supply
Polyphony	11
Synthesis	Analog and Digital
