7.5 Effects
There are two on-board effects available: reverb and delay. Actually the fx section is
part of parameter sets of the single kit and stored along with the preset. It is handled
like an instrument page.
The fx are send effects. Every analog instrument has its own A/D converter for this
purpose. Exceptions are Kick Drum and MBrane who share the A/D converter with the
sampling inputs and the stereo mix out via an input selector switch.
The true analog signal from the instrument's output is picked up, A/D converted and
sent to the FX input.
The fx send amount controls the FX intensity of the instrument. For professional studio
applications, there is a reverb kill switch that mutes all digital effects with one click –
Knob 14 click mutes or unmutes all FX.

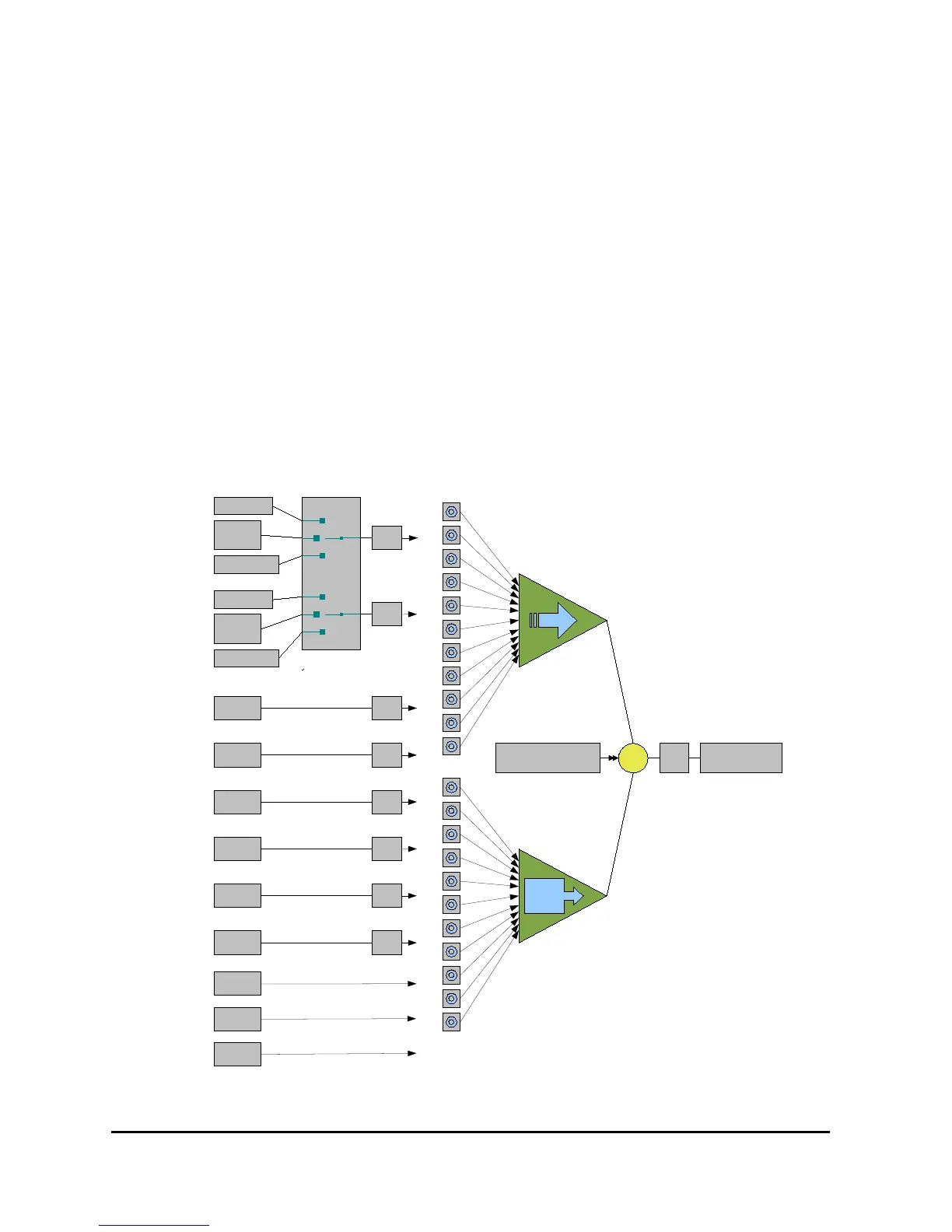

62 ALPHA BASE Operating Manual
Delay
Reverb
Mix Output
A/D
One of 6 sample based analog voices
KD
+
D/A
L Input
R Input
MB
CLP
RIM
CH
OH
CRH
RID
A/D
A/D
A/D
A/D
A/D
A/D
A/D
Input Switch
L Mix Out
R Mix Out
FX Sends
X1
X2
FM
Kill FX Click 14

Jomox ALPHA BASE Specifications

General

Voices	11
Analog Voices	8
Sequencer	Yes
Connectivity	MIDI In/Out/Thru, USB
Display	LCD
Type	Drum Machine
Effects	Delay, Reverb
Outputs	Main stereo output, headphones output
Inputs	2x 6.3mm Jack Inputs
Memory	Pattern
Power Supply	External Power Supply
Polyphony	11
Synthesis	Analog and Digital
