jotron MPA 1603 GA - Connecting to the Service Port

28
User and Installaon Manual
Compact MPA
6.2.1 CONNECTING TO SERVICE PORT
The Service port exposed by the Compact MPA system is a standard RJ-45 connector.
The computer intended for use with the web-conguraon can be connected directly to this port
via a standard Ethernet patch cable.

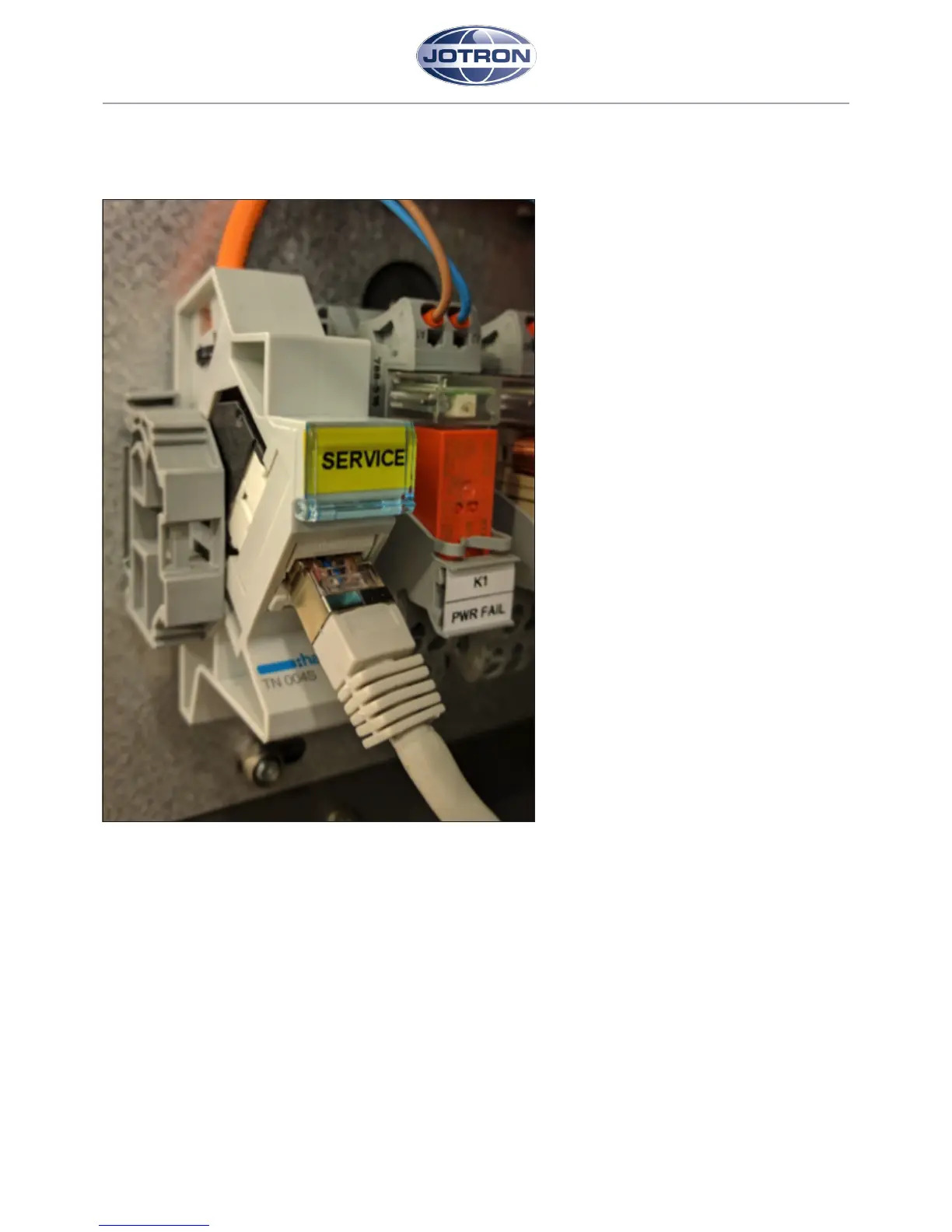

Figure 1: Service Port
