User and Installaon Manual
Compact MPA

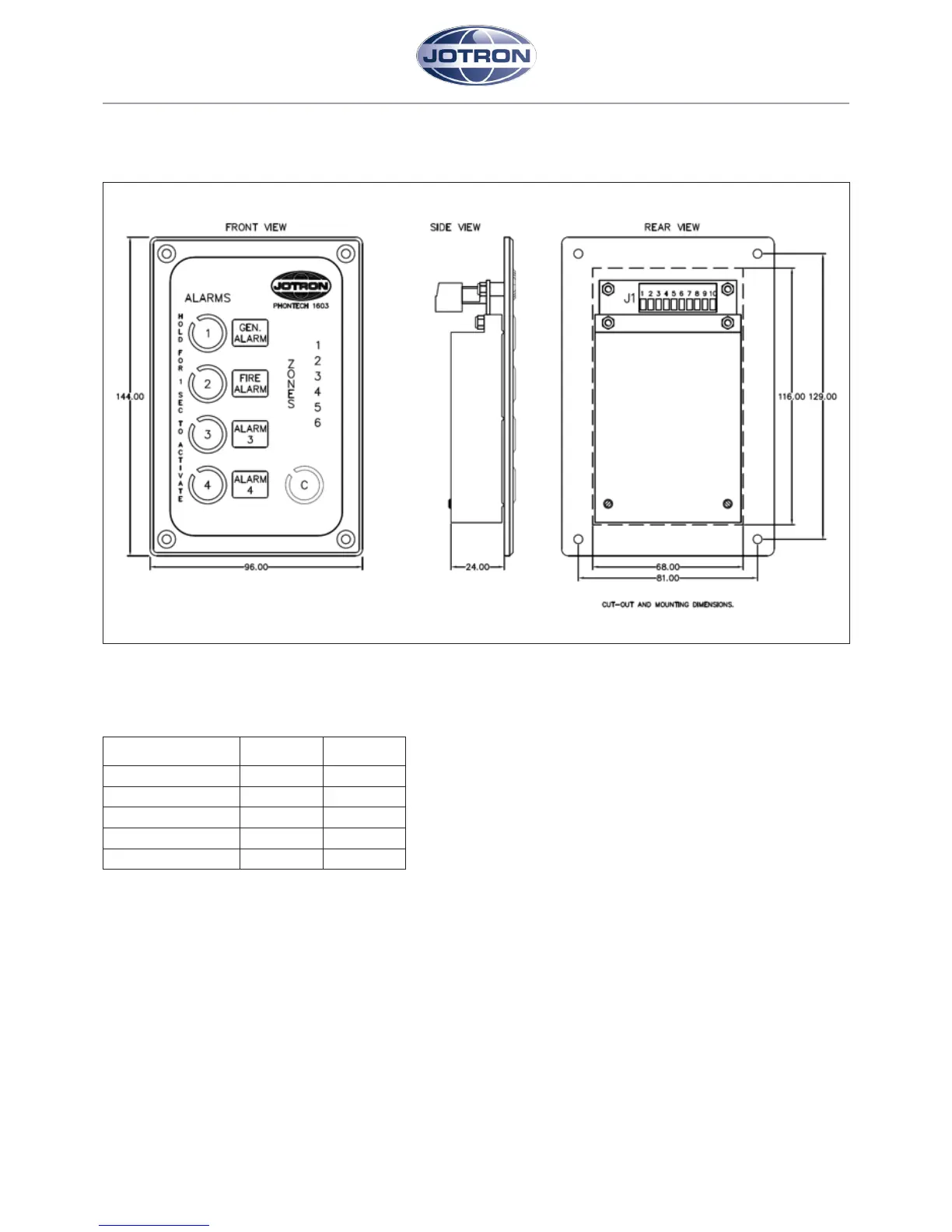

9.7 MPA 1603 - EXTERNAL CONNECTION
 System A System B
RS485- 1 4
RS485+ 2 5
Screen 3 6
+24VDC 7 9
0V 8 10
9.6 MPA 1603 - MECHANICAL LAYOUT
