User and Installaon Manual
Compact MPA


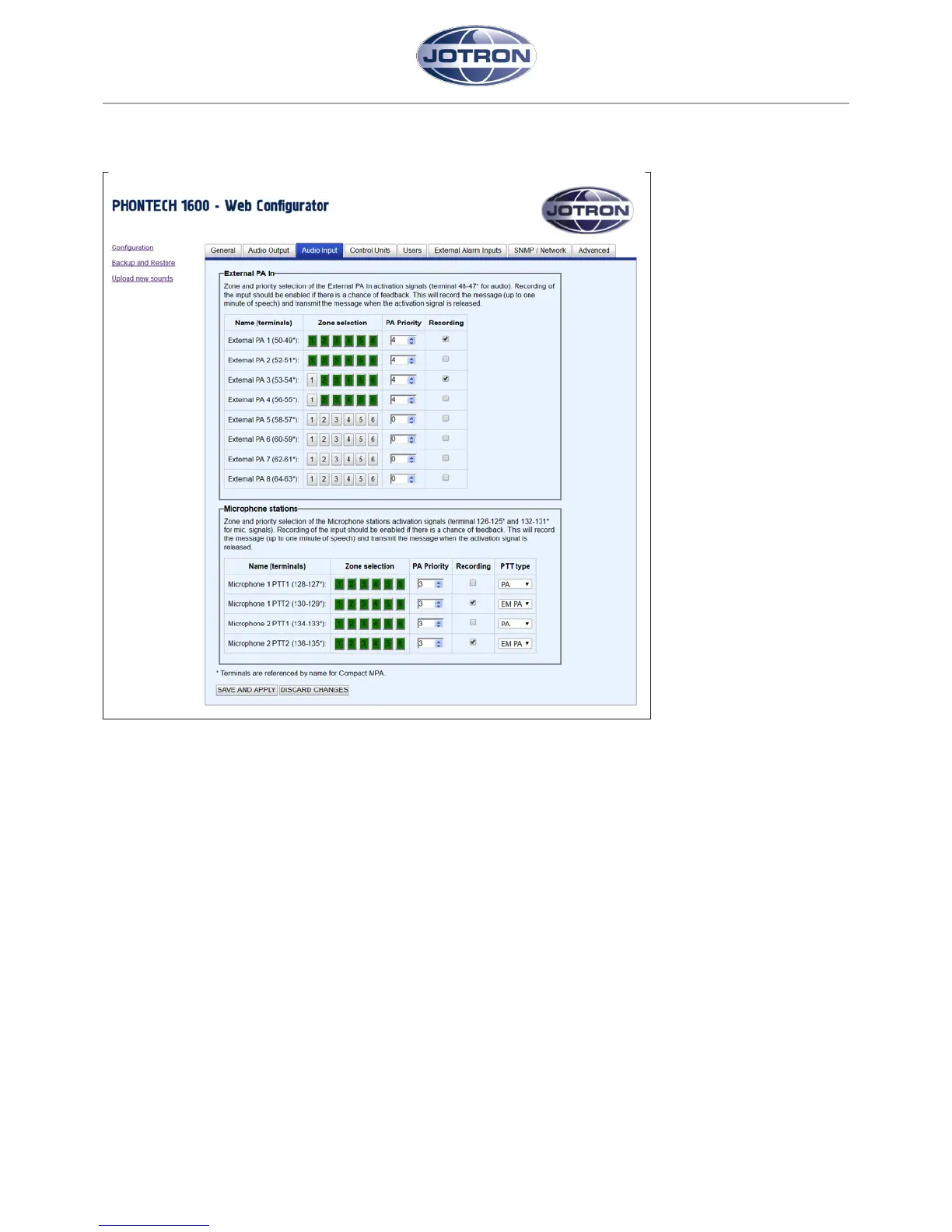

Figure 7: Audio Input
The “Audio Input”-tab allows users to set up external PA inputs and microphone staons.
The external PA inputs can be set to any zone or set of zones, with a specied PA priority (lower is more important) and if the
message should be recorded prior to playback. There are two External PA inputs exposed at the Compact MPA backplane.
Any microphone staons connected can be congured with any zone or set of zones, the priority of the staon PTTs,
whether to record the message prior to playback and what type of paging is desired (normal paging or emergency paging).
Please note that only the rst PTT pair for each microphone staon is exposed at the Compact MPA backplane.
