29
User and Installaon Manual
Compact MPA

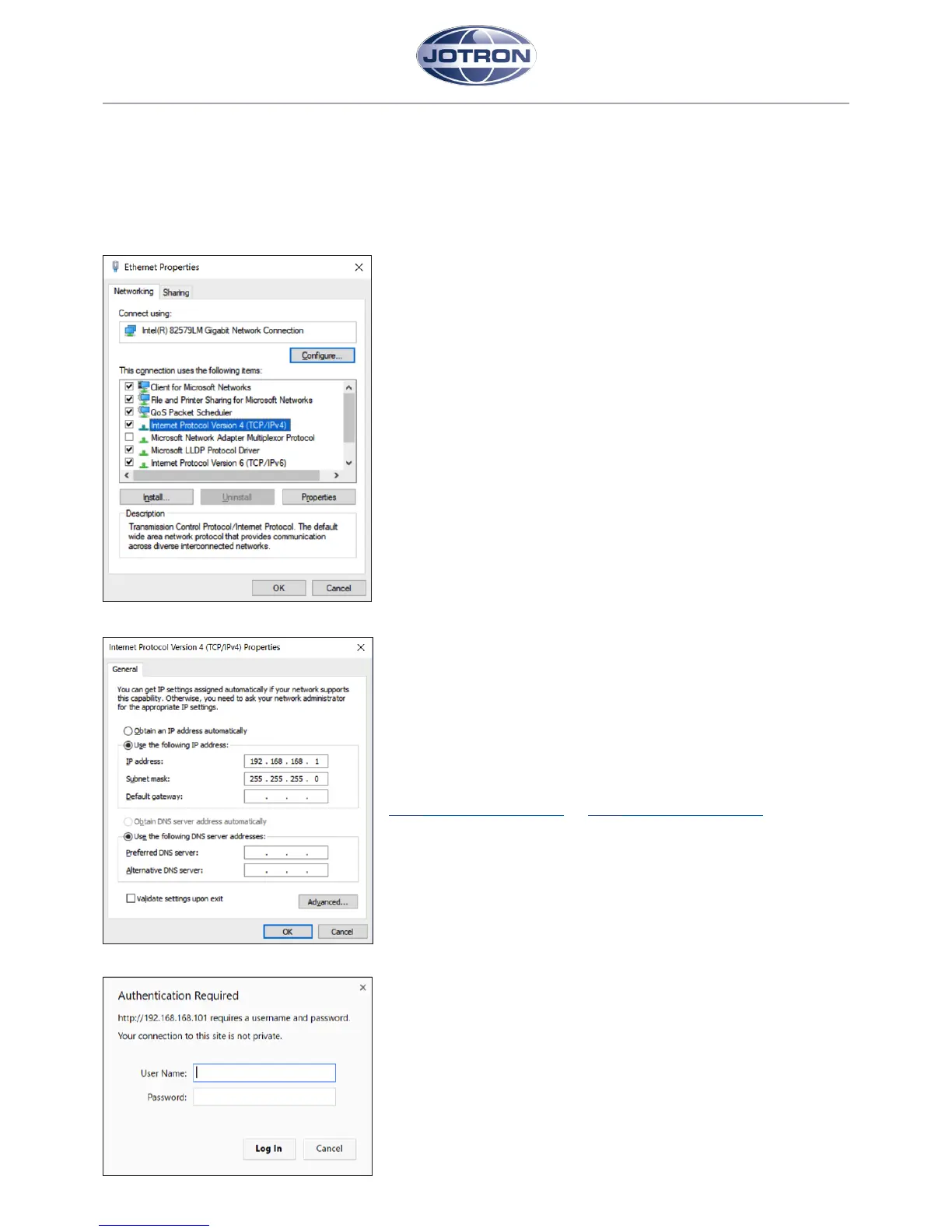

Figure 2: Ethernet Properes
The properes screen for the IPv4 sengs allows you to set a stac address
for this interface.
Figure 3: IPv4 Address
In this example we have used 192.168.168.1 as the IP address and
255.255.255.0 as the subnet mask.
6.2.3 IP ADDRESS AND LOGIN INFORMATION
The default IP address of the MPA-system is 192.168.168.101. If it is a
dual-system, then the B-system has a default address of 192.168.168.102.
To enter the web conguraon, open a web-browser and enter:
www.hp://192.168.168.101 (or www.hp://192.168.168.102
for the B-system if applicable) in the address eld.
A password prompt will ask for login credenals.
Figure 4: Authencaon Required
The login is root with password root.Upon a successful login,
the “General”-tab will be shown.
6.2.2 SETTING A STATIC ADDRESS LOCALLY
To access the web-interface, it is necessary to set a stac IP address on the computer connected to the Compact MPA service
port. In Windows, this can be performed in the Network Connecons-screen (Control Panel > Network and Internet > Net-
work Connecons). Please select the correct network interface and enter the sengs for “Internet Protocol Version 4 (TCP/
IPv4)”.
Please note that this address must be in the
192.168.168.0/24 subnet.
