User and Installaon Manual
Compact MPA

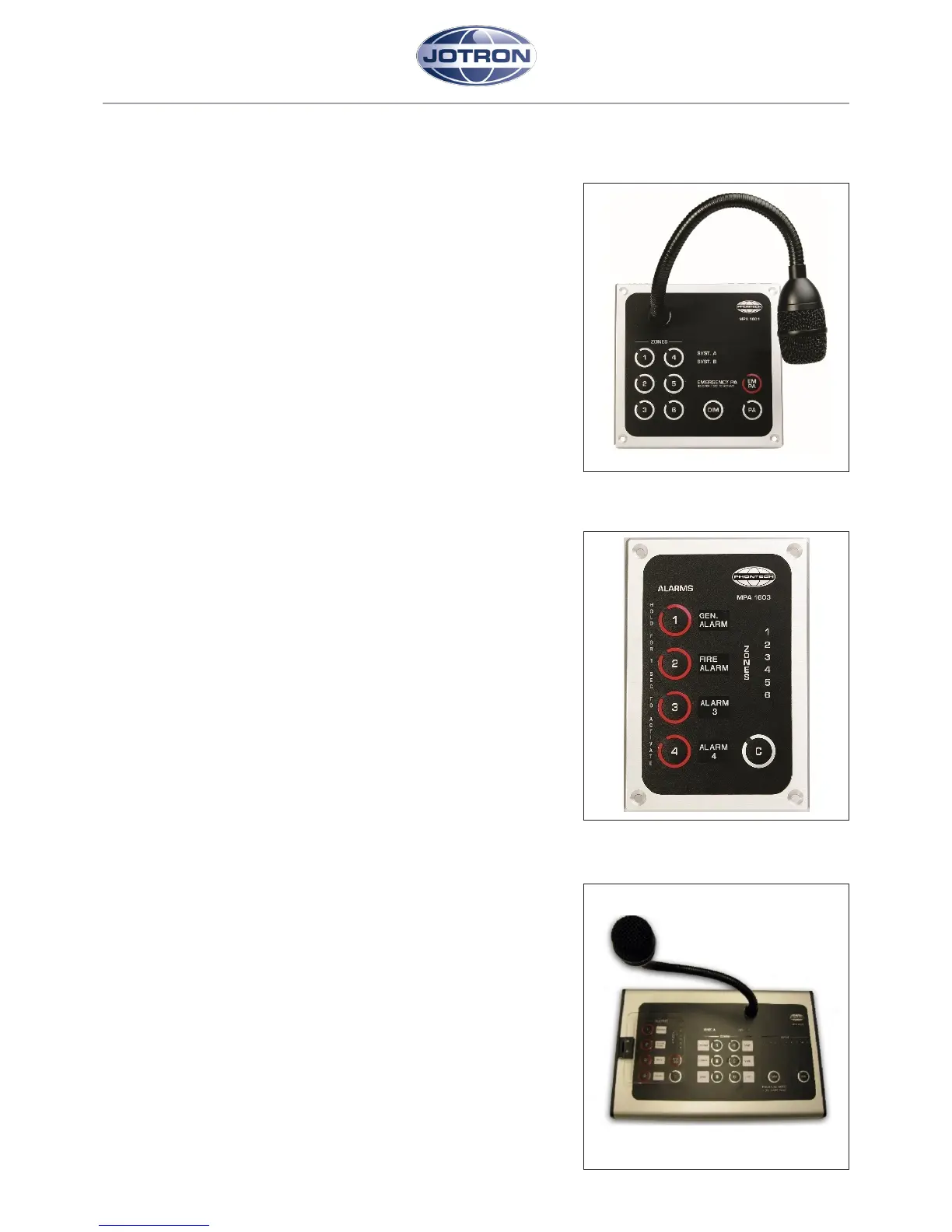

2.2 MPA 1601 PA CONTROL UNIT
The MPA 1601 is a full facility operator control unit in the
MPA system. It is designed for ush mounng.
Features:
• Microphone opons are Gooseneck, or Handheld.
• RS485 data communicaon with MPA1600 Operaon Unit.
• 6 Zone-selecon keys.
• PA (normal paging) key
• Emergency PA key marked with red colour
• Emergency PA key is protected against unauthorised use by means
of me-trap funconality (the Emergency PA key must be held for
1 sec. before acvaon.
• Dimmer key.
• Status-Led for system A and system B.
• Led-indicators for all keys.
• Dimmable Backlight and indicaon leds
• Local mute relays.
2.3 MPA 1603 GA ALARM PANEL
The MPA 1603 is a manual alarm control unit in the MPA system.
It is designed for ush mounng.
Features:
• RS485 data communicaon with MPA1600 Operaon Unit.
• Alarm keys marked with the text “ALARM” and red colour.
• Cancel key.
• Protecon against unauthorised use by means of me-trap funcon
ality (the alarm keys and the Cancel keys must be held for 1 sec.
before acvaon).
• 6 leds indicang alarm status in each zone. Led indicators for all keys.
• Dimmable backlight and leds, remotely controlled from the adjacent
MPA 1601 Control Unit.
2.4 MPA 1605 PAGA ACCESS PANEL
- TABLE TOP MOUNTING.
The 1605 is an access and control panel prepared for Compact
MPA A and B system.
Features:
• Gooseneck or handheld microphone.
• 6 zone selecon switches.
• Alarm acvaon buons.
• Emergency PA / normal PA acvaon buon.
• Dimmer funcon.
• Audio level meter.
• IP44 rang.



