User and Installaon Manual
Compact MPA

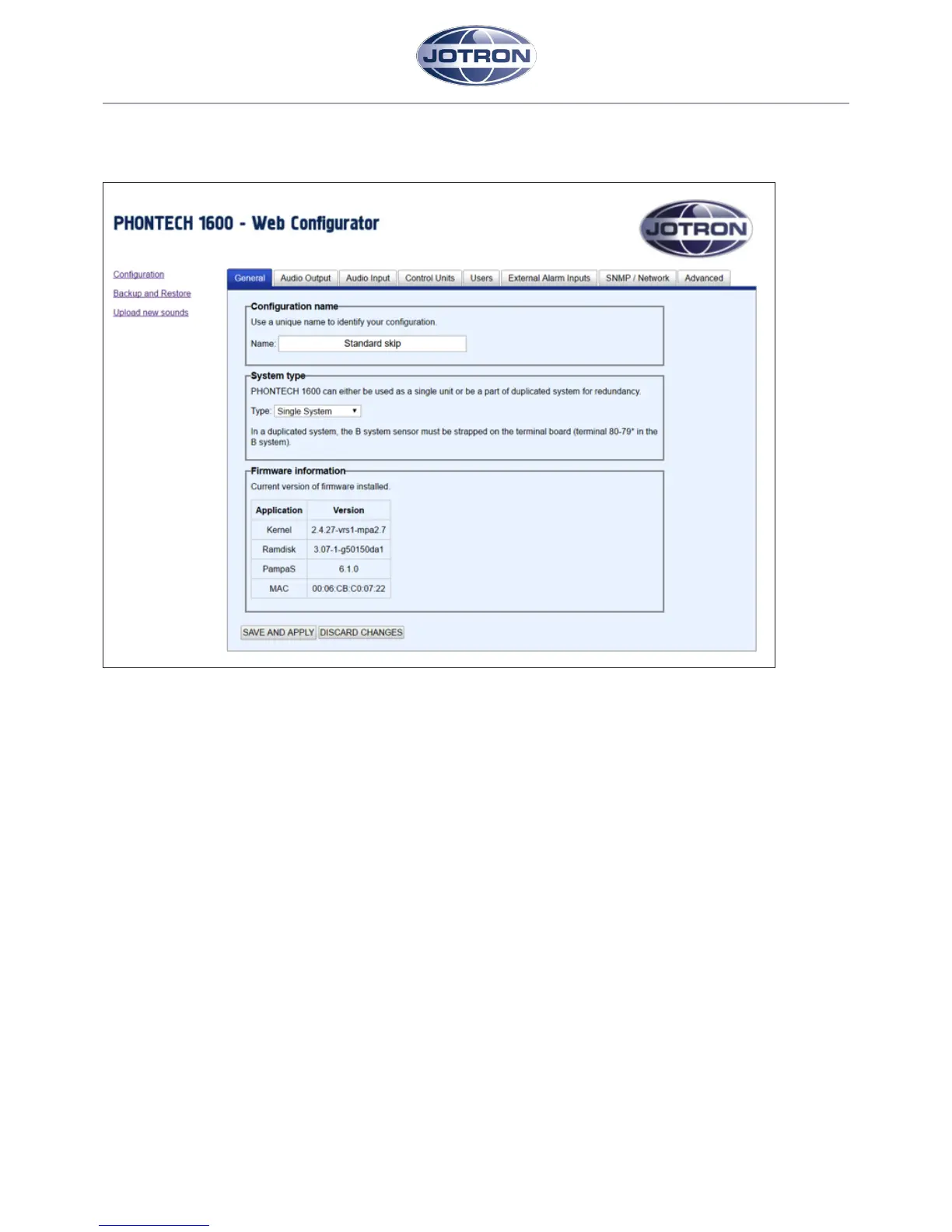

Figure 5: General Tab
The “General”-tab allows users to set the name of the conguraon, select if the system is a single system or a duplicated
system (A/B) and view the versions of rmware components.
The name of the conguraon is a simple string describing the conguraon in some way. This can be any string, and is just
for documentaon purposes.
The system type is either a duplicated system or a single system. A duplicated system means that there are two Compact
MPA systems in A/B-system conguraon present for redundancy. Single system means that there is just one Compact MPA
system present, with no redundancies.
For duplicated systems, please note that there is a DIP-switch must be set in the correct posion for the B-system. Please see
the Installaon secon for details.
Firmware version informaon is present to aid in support and to allow users to see if the rmware must be updated.

