Chapter 4 ADJUST MENU SETTINGS
4.13 DISPLAY SCREEN
4-89
4
NSTALLATION MANUAL

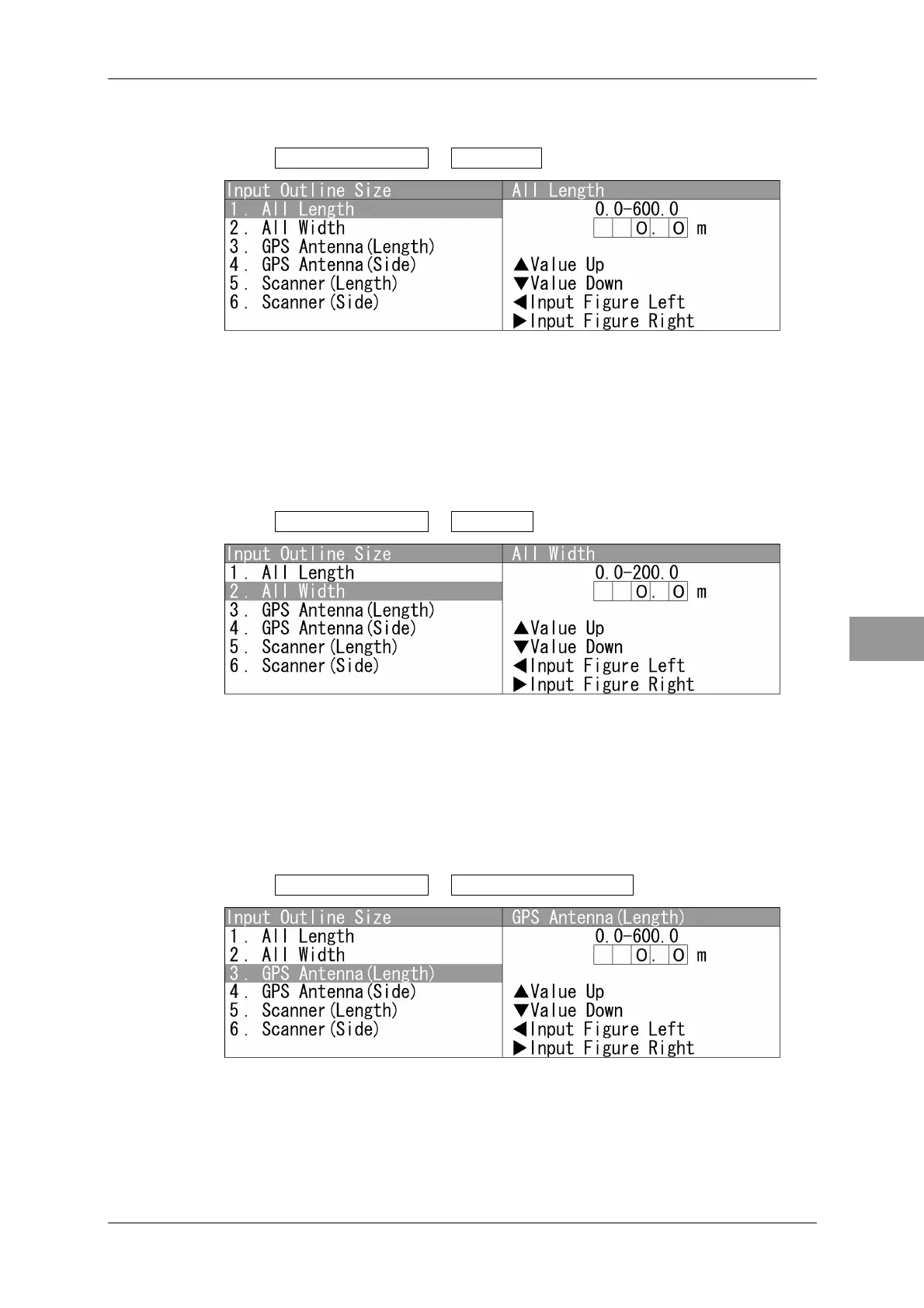

 All Length of Own Ship
Sets the all length of own ship.
1 Open Input Outline Size - All Length .
"All Length" menu appears.
Press the cursor key or turn the [MULTI] control to set the all length.
The length can be set between 0.0 and 600.0 m.
 All Width of Own Ship
Sets the all width of own ship.
1 Open Input Outline Size - All Width .
"All Width" menu appears.
Press the cursor key or turn the [MULTI] control to set the all width.
The width can be set between 0.0 and 200.0 m.
 GPS Antenna(Length)
Sets the GPS position from the center of the stern toward heading direction.
1 Open Input Outline Size - GPS Antenna(Length) .
"GPS Antenna(Length)" menu appears.
Press the cursor key or turn the [MULTI] control to set the range.
The range can be set between 0.0 and 600.0 m.
