JRC JMA-3334 User Manual

Chapter 4 ADJUST MENU SETTINGS
4.13 DISPLAY SCREEN
4-91
4
NSTALLATION MANUAL

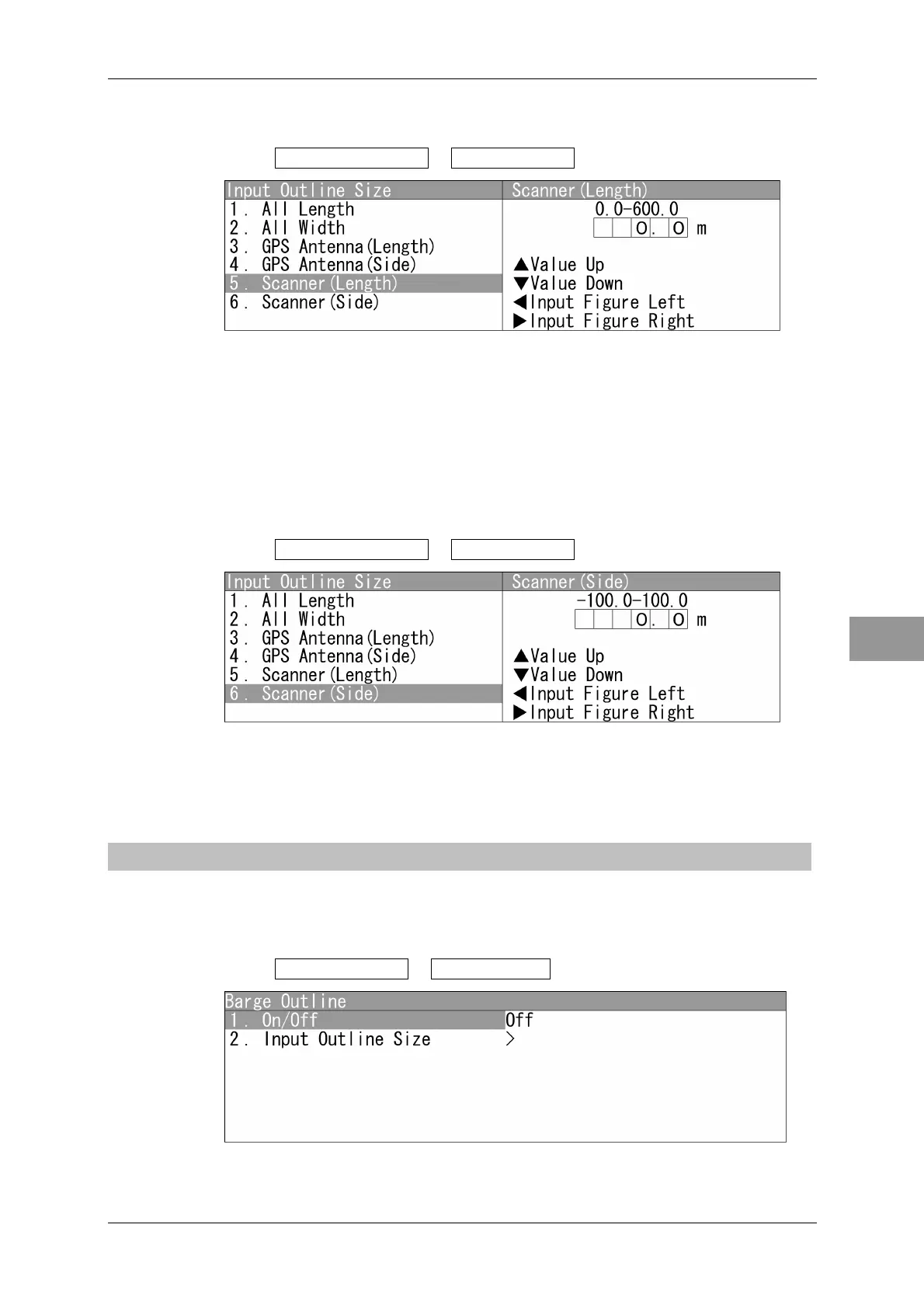

 Scanner(Length)
Sets the scanner position from the center of the stern toward heading direction.
1 Open Input Outline Size - Scanner(Side) .
"Scanner(Length)" menu appears.
Press the cursor key or turn the [MULTI] control to set the range.
The range can be set between 0.0 and 600.0 m.
 Scanner(Side)
Sets the scanner position from the center of the stern toward vertical direction to
heading.
1 Open Input Outline Size - Scanner(Side) .
"Scanner(Side)" menu appears.
Press the cursor key or turn the [MULTI] control to set the range.
The range can be set between -100.0 and 100.0 m.
4.13.3 BARGE OUTLINE
Sets the barge outline.
 "Barge Outline" operations
1 Open Display Screen - Barge Outline .
"Barge Outline" menu appears.
