Chapter 4 ADJUST MENU SETTINGS
4.2 BASIC ADJUSTMENT
4-5
4
NSTALLATION MANUAL
4.2 BASIC ADJUSTMENT
Performs basic adjustments.

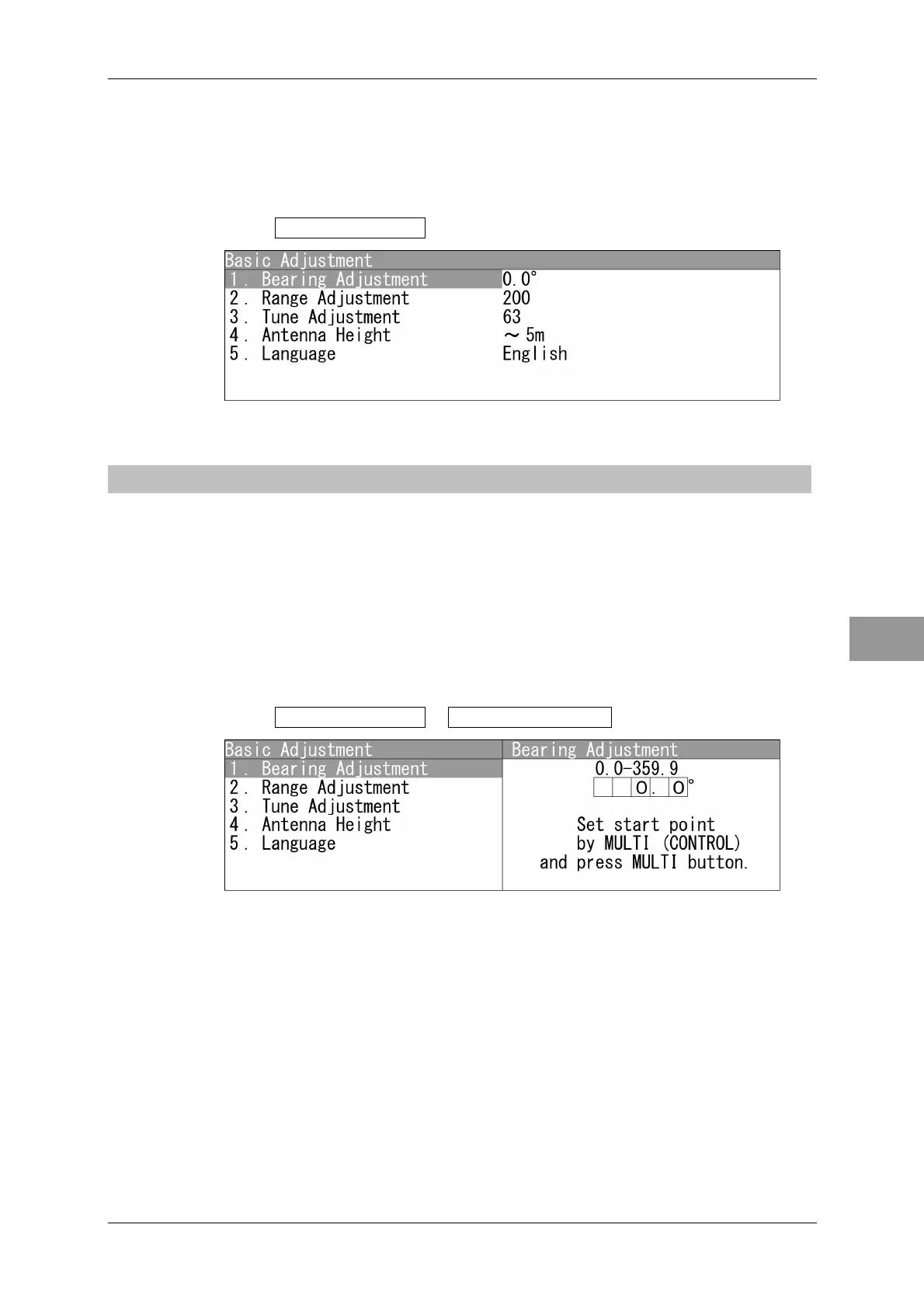

"Basic Adjustment" operations
1 Open Basic Adjustment from the Adjust Menu.
"Basic Adjustment" menu appears.
4.2.1 BEARING ADJUSTMENT
Adjust the bearing so that bearing of the target measured with the ship's compass
matches that of the target echo on the radar display.
Before adjustment
Measure the bearing of an adequate target (for example, a ship at anchor, a breakwater or
a buoy) relative to own ship’s heading.
Setting for Bearing Adjustment
1 Open Basic Adjustment - Bearing Adjustment .
"Bearing Adjustment" menu appears.
Press the cursor key or turn the [MULTI] control to set the bearing.
The bearing can be set between 0.0 and 359.9°.
