Chapter 3 INSTALLATION OF THE DISPLAY UNIT
3.4 INSTALLATION OF THE CABLE BETWEEN THE DISPLAY UNIT AND THE SCANNER
3-6
3.4 INSTALLATION OF THE CABLE BETWEEN
THE DISPLAY UNIT AND THE SCANNER

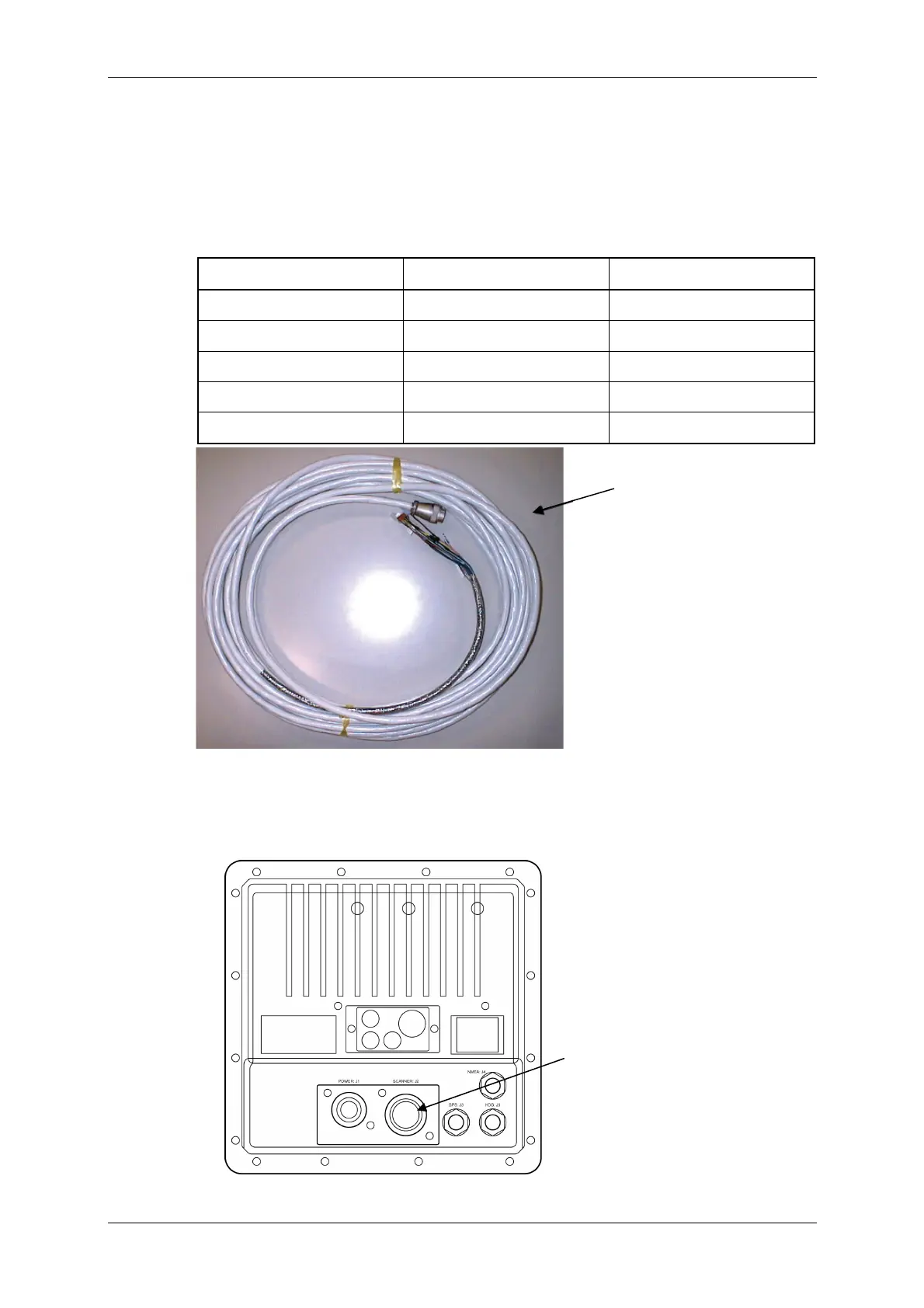

The cable CFQ-6912 is used to connect the display unit to the scanner.
For this radar equipment, use the following cables having a connector.
Cable length JRC code Remarks
5 m CFQ6912-5 Option
10 m CFQ6912-10 Option
15 m CFQ6912-15 Option
20 m CFQ6912-20 Option
30 m CFQ6912-30 Option
Connecting the cable to the scanner
Connect the CFQ-6912 connector to the connector for which "SCANNER" is engraved
at the rear of the display unit cabinet.
Turn the plug attached to the connector until it cannot be turned any further.
CFQ-6912 is connected here.
Cable CFQ-6912-5/10/15/20/30
To Next Page
