Chapter 4 ADJUST MENU SETTINGS
4.2 BASIC ADJUSTMENT
4-7
4
NSTALLATION MANUAL
4.2.3 TUNE ADJUSTMENT
Adjust the tuning control for the transmitter and receiver.
The turning control should be adjusted when the system is installed or when the
magnetron is replaced.
Before adjustment
Set the range to 48 NM or more.
Setting for Tune Adjustment

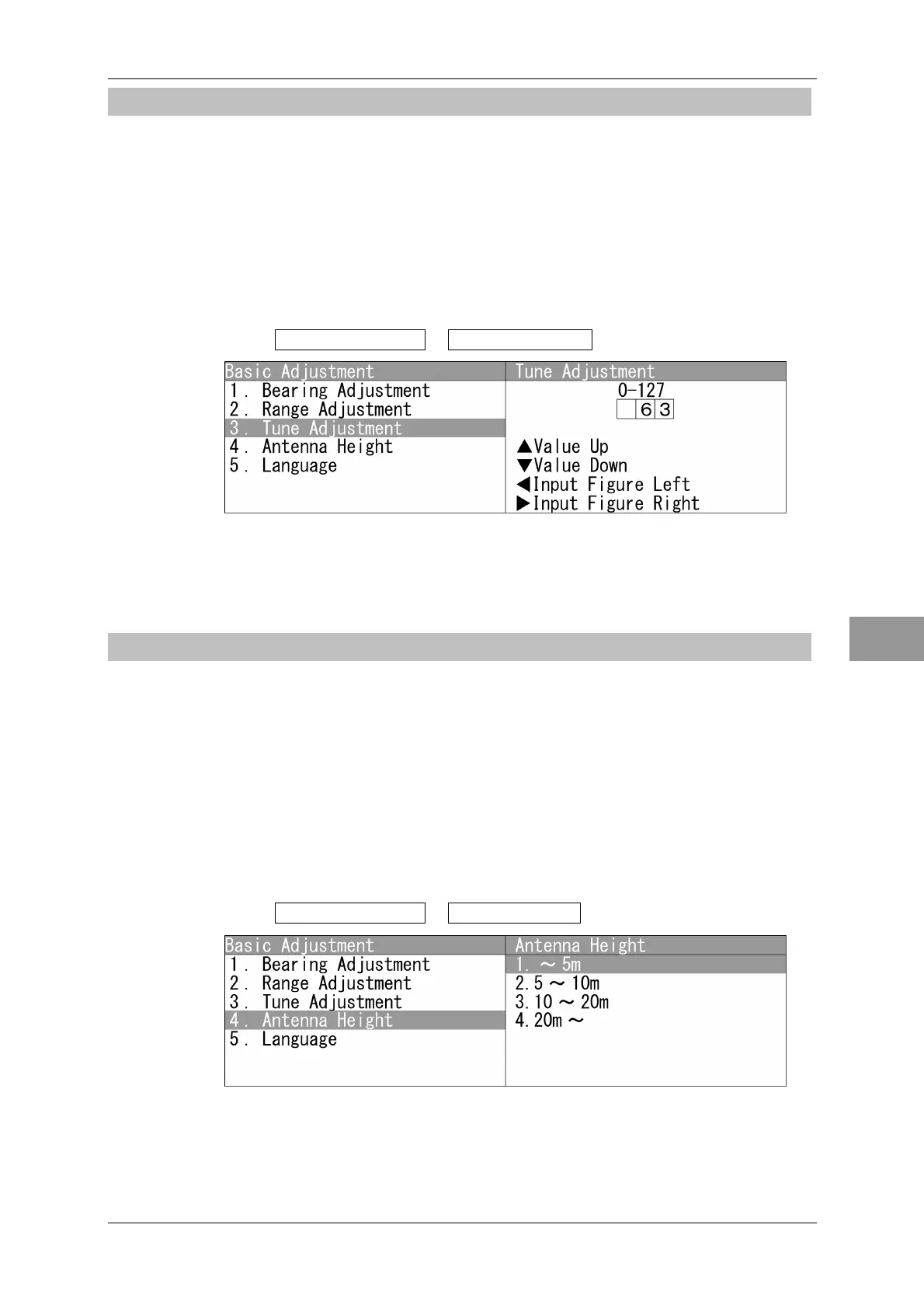

1 Open Basic Adjustment - Tune Adjustment .
"Tune Adjustment" menu appears.
Press the cursor key or turn the [MULTI] control to set the tuning.
The tuning can be set between 0 and 127.
4.2.4 SETTING ANTENNA HEIGHT
Set the height of radar antenna above sea level.
When changing this value, effectiveness of the sea clutter suppression range can be
changed.
This is also effective to change the effectiveness of the automatic sea clutter suppression.
Before adjustment
Measure the height from the sea level to the antenna in advance.
Settings for Antenna Height
1 Open Basic Adjustment - Antenna Height .
Select the antenna height measured before adjustment.
