Chapter 3 INSTALLATION OF THE DISPLAY UNIT
3.11 CONNECTING CONTACT SIGNALS TO EXTERNAL BUZZERS/EXTERNAL DEVICES
3-32
Jumper setting

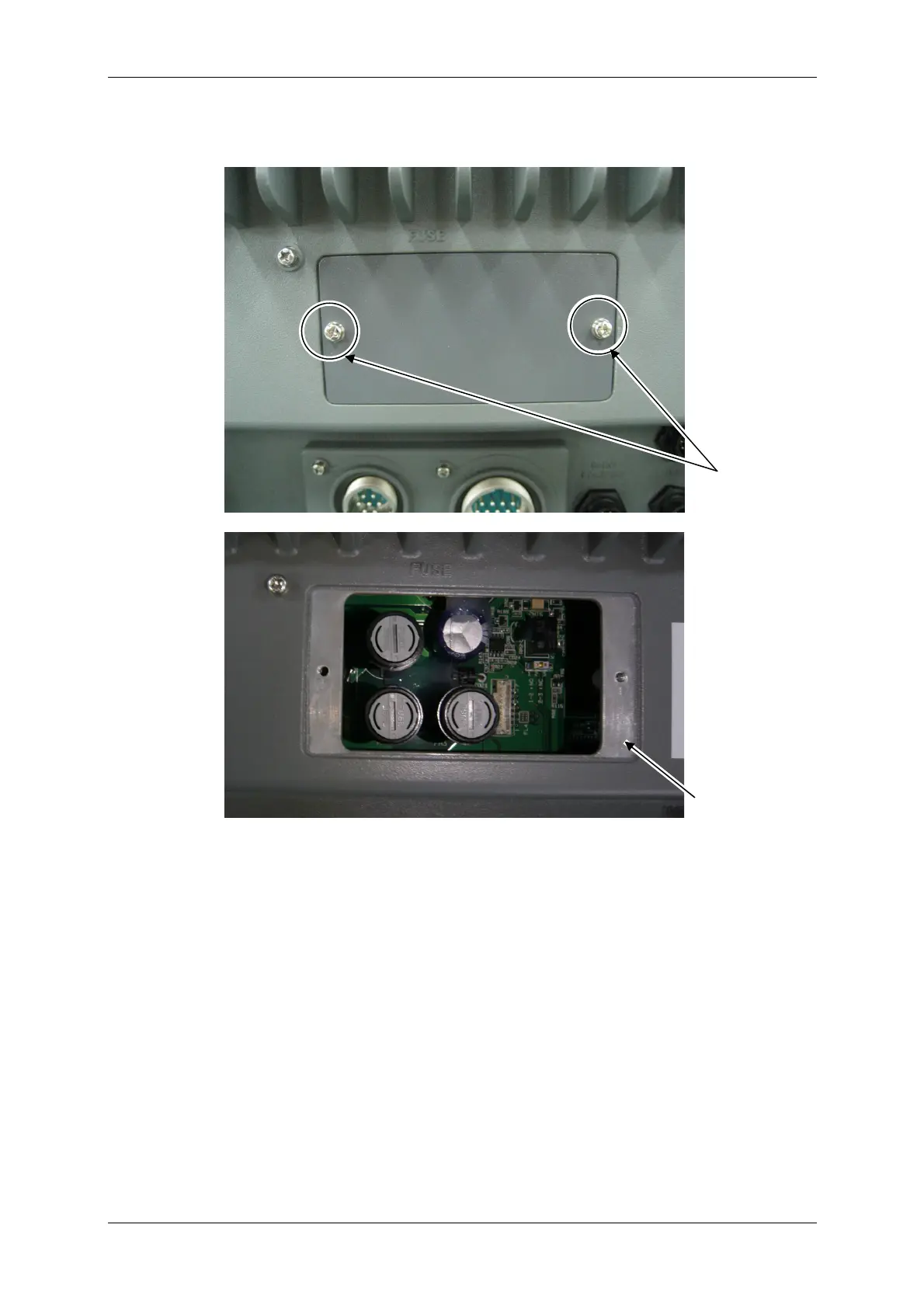

Remove the cover at the rear of the display unit as shown in the figure.
Remove
the screws.
The cover is
removed.
