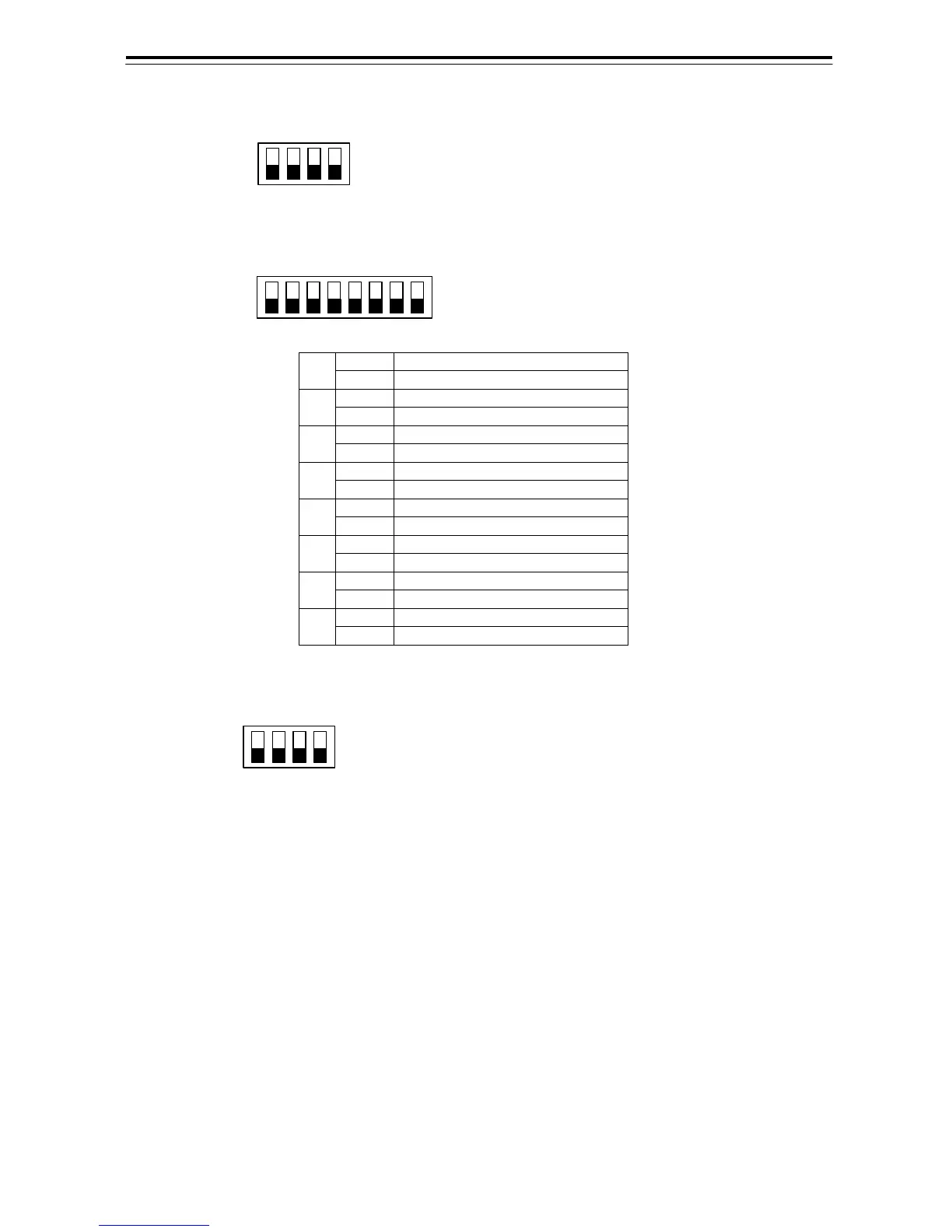

1) SW11 setting (expansion mode, master/slave setting)
1 234
ON
OFF
Set all OFF.
2) SW12 setting (radar connection setting)
1 234
ON
OFF
5768
Radar Conncetion Setting
ON No.1 display unit connected
1
OFF No.1 display unit not conncted
ON No.1 antenna connected 2
OFF No.1 antenna not conncted
ON No.2 display unit conncted 3
OFF No.2 display unit not connected
ON No.2 antenna connected 4
OFF No.2 antenna not connected
ON No.3 display unit connected 5
OFF No.3 display unit not connected
ON No.3 antenna connected 6
OFF No.3 antenna not connected
ON No.4 display unit conncted 7
OFF No.4 display unit not conncted
ON No.4 scanner connected 8
OFF No.4 scanner not connceted
3) SW13 (unused)
1 234
ON
OFF
Set all OFF.
