JUKI IP-420 - Points to be Applied with JUKI Grease B

– 125 –
■

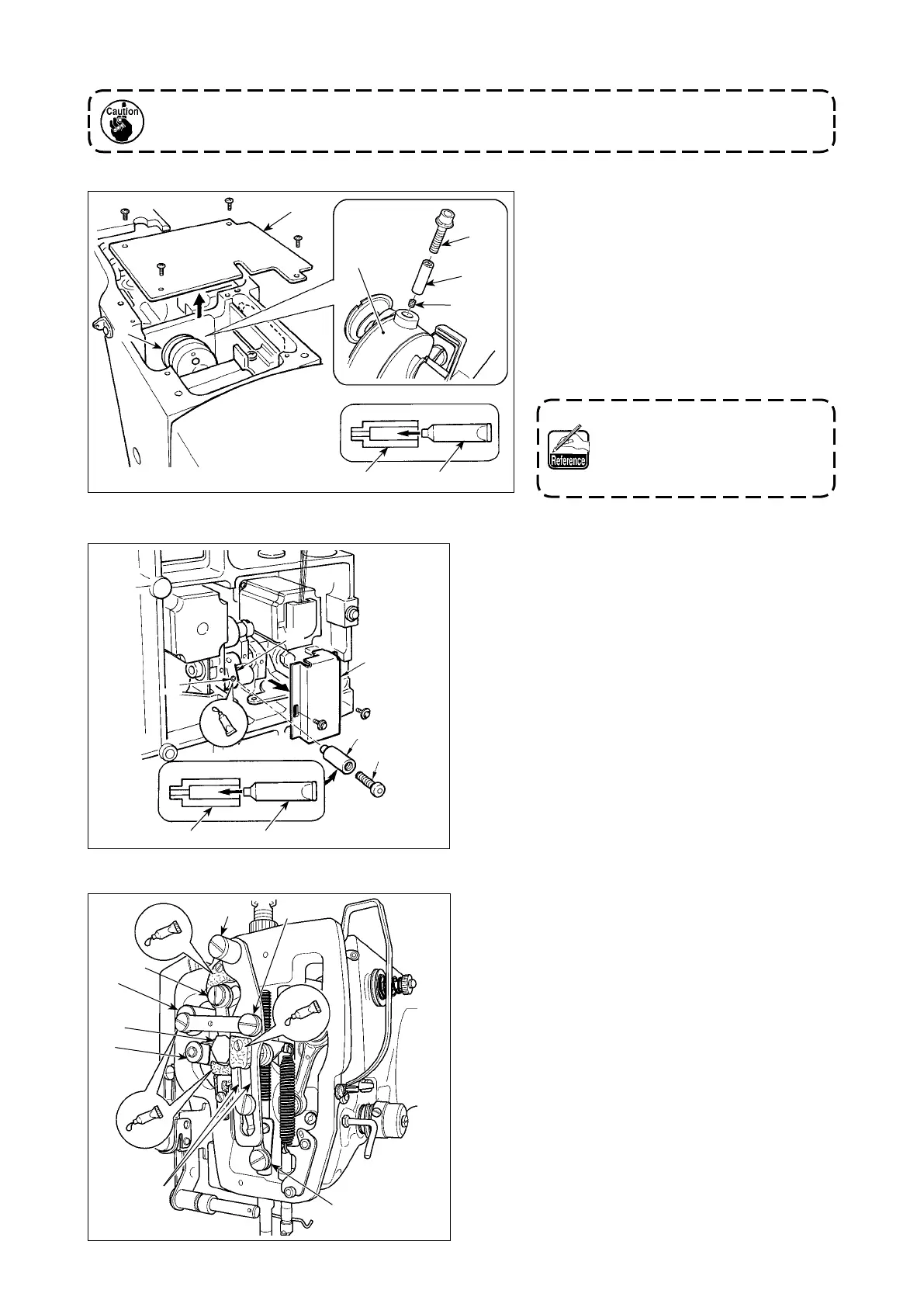

Adding grease onto the eccentric cam section
Use grease tube B (part number: 40013640) (in light violet) supplied with the unit for add-
ing grease to any points other than the points specied below. If any grease other than the
specied one is used, the related components can be damaged.
1) Tilt the machine head and remove the grease
cover
1
.
2)
Fill coupling
4
supplied with the unit with
grease through JUKI Grease B tube
5
.
3)
Remove setscrew
3
in oscillator gear
2
and
screw in joint
4
into the screw hole.
4)
Sink screw
6
supplied with the unit into the
coupling to add the JUKI Grease B.
5)
Securely tighten setscrew
3
which has been
removed after replenishing with the grease.
■
Adding grease onto the oscillating rock shaft pin section
(3) Points to be applied with JUKI Grease B
The eccentric cam section
can be sufciently lled with
grease by adding the grease
while turning the main shaft of
sewing machine.
1) Open crank rod cover
1
.
2) Remove setscrew
3
from the grease
inlet cover located at periphery of
crank rod
2
.
3)
Fill coupling
4
with grease through
JUKI Grease B tube
5
.
4)
Sink screw
6
supplied with the unit
into the coupling to add the grease.
5)
After adding the grease, securely
tighten setscrew
3
which has been
removed.
2
1
4
2
4
5
6
3
2
1
3
4
6
5
4
1
2
6
7
8
5
4
3
■
Grease supplement to the face plate section
1)
Open the face plate cover.
2) Add the JUKI Grease B onto the felt sections
(3 locations), peripheral shoulder screw, ful-
crums
1
to
7
and guide groove section
8
.
