JUKI IP-420 - 2-18. Changing Contents of Pattern Button

– 61 –

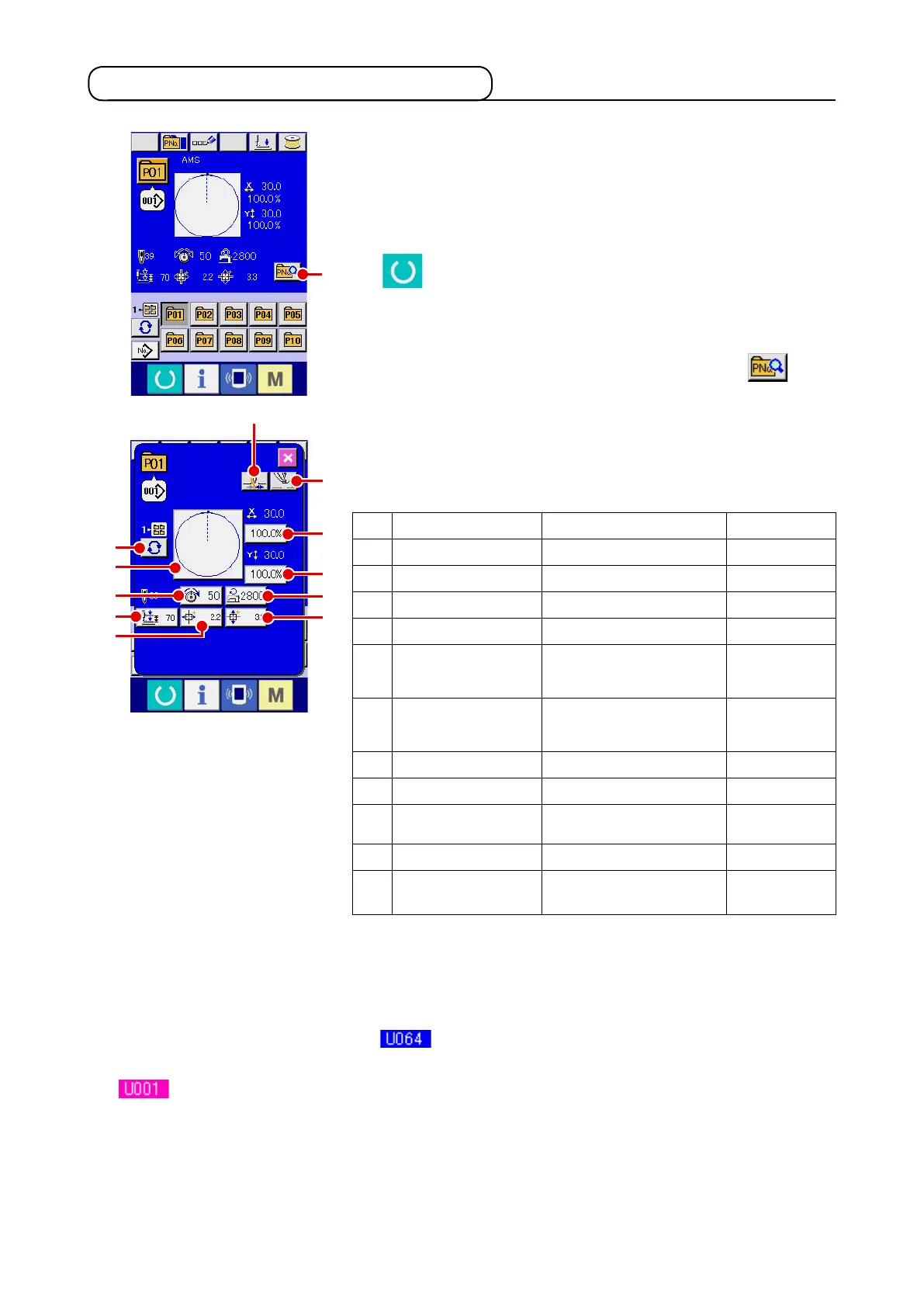

2-18. Changing contents of pattern button
1
Display the data input screen at the time of pattern button
selection.
Only in case of the data input screen (blue) at the time of pat
-
tern selection, it is possible to change the contents of pattern.
In case of the sewing screen (green), press READY switch
to display the data input screen at the time of pattern
button selection.
2
Display the pattern button data change screen.
When PATTERN BUTTON DATA CHANGE button
A
is
pressed, the pattern button data change screen is displayed.
When pressing each button of
B
through
H
and
J
, the item data input screen is displayed. When the
buttons of
I
and
K
are pressed, Folder Nos. and With/without thread clamp are changed over.
*
B
Scale rate in X direction and
C
Scale rate in Y direction can be changed to the actual size value
input by selection of memory switch .
* Max. input range and initial value of max. speed limitation
D
are determined with memory switch
.
* The input range of travel amount in X direction
F
and travel amount in Y direction
G
differs accord-
ing to the sewing range.
3
Display the input screen of the item data you desire to
change.
Data that can be changed are 11 items below.
A
H
D
I
L
F
B
C
E
G
J
K
Item Input range Initial value
B
Scale rate in X direction 1.0 to 400.0(%) 100.0
C
Scale rate in Y direction 1.0 to 400.0(%) 100.0
D
Thread tension 0 to 200 Pattern set value
E
Max. speed limitation 200 to 2800(sti/min) 2800
F
Travel amount in X
direction
1306 : –66.0 to +66.0 (mm)
1510 : –76.0 to +76.0(mm)
2210 : –111.0 to +111.0(mm)
0.0
G
Travel amount in Y
direction
1306 : –31.0 to +31.0(mm)
1510 : –51.0 to +51.0(mm)
2210 : –51.0 to +51.0(mm)
0.0
H
Sewing shape - -
I
Folder No. 1 to 5 -
J
Intermediate presser
0.0 to 3.5 (mm)
(Max. 0.0 to 7.0 (mm))
Pattern set value
K
Thread clamp With/without With
L
2-step stroke height
Motor-driven type : 50 to 90
Air-driven type : 10 to 300
70
35
