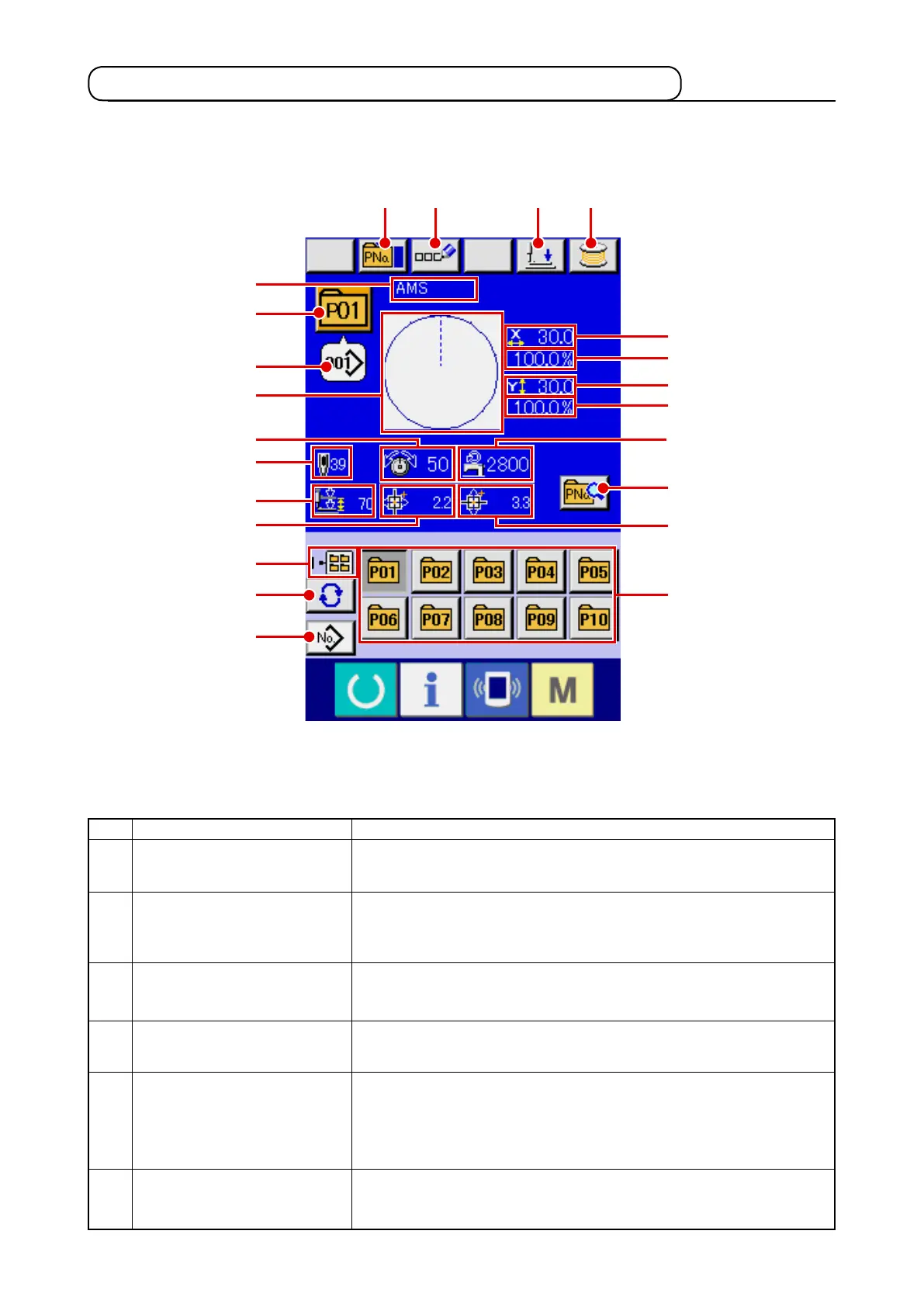

JUKI IP-420 - LCD Display Section at the Time of Pattern Button Selection; Pattern Button Data Input Screen

– 55 –
(1) Pattern button data input screen
A
B
C
D
E
F
Button and display
PATTERN BUTTON
COPY button
PATTERN BUTTON
NAME SETTING button
PATTERN BUTTON
NAME display
WINDING BOBBIN button
PATTERN BUTTON
NO. display
SEWING SHAPE
Description
Pattern button copy screen is displayed.
/

Refer to
“
@
-2-19. Copying pattern button” p.62
.
Pattern button name input screen is displayed.
/

Refer to
“
@
-2-14. Naming users’ pattern” p.53
.
Character which is registered to the pattern button No. being selected is
displayed.
Bobbin thread can be wound.
/

Refer to
“
@
-2-11. Winding bobbin thread” p.48
.
Pattern button No. being selected at present is displayed on this button
and when the button is pressed, the pattern button No. selection screen is
displayed.
/

Refer to
“
@
-2-17. Performing pattern button No. selection” p.59
.
Sewing shape which is registered to the pattern button No. being selected
is displayed.
2-16. LCD display section at the time of pattern button selection
